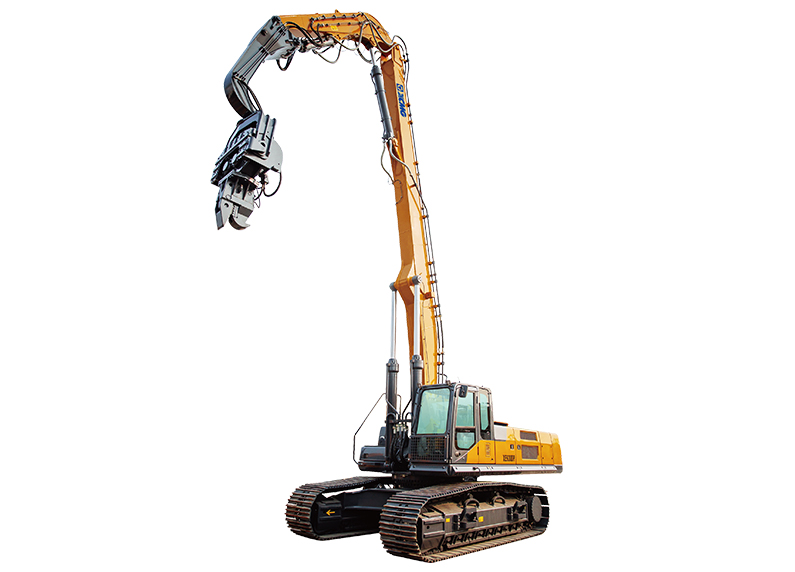

XCMG XE600DP (Piling Driver)
Piling Driver
Parameters
| Engine Model | Cummins QSM11 |
| Rated Power(kW) | 280 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 2000 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 28-35 |
| Engine Displacement(L) | 11 |
| Emisson | China National III / Tier 3 |
| Fuel Tank(L) | 650 |
| Hydraulic Tank(L) | 400 |
| Travel Speed(km/h) | 5.2 |
| Operating Weight(kg&ton) | 59000 |
| Specifications(mm) | 11800 3350×3650 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Engine model | Cummins QSM11 | |
| Emission standard | National Stage Ⅲ | |
| Operating weight | 59000 | Kg |
| Rated power | 280/2000 | kW/rpm |
| Maximum torque/speed | 1898/1300 | N.m |
| Displacement | 11 | L |
| Travel speed | 5.2/2.9 | km/h |
| Swing speed | 9.2 | r/min |
Features

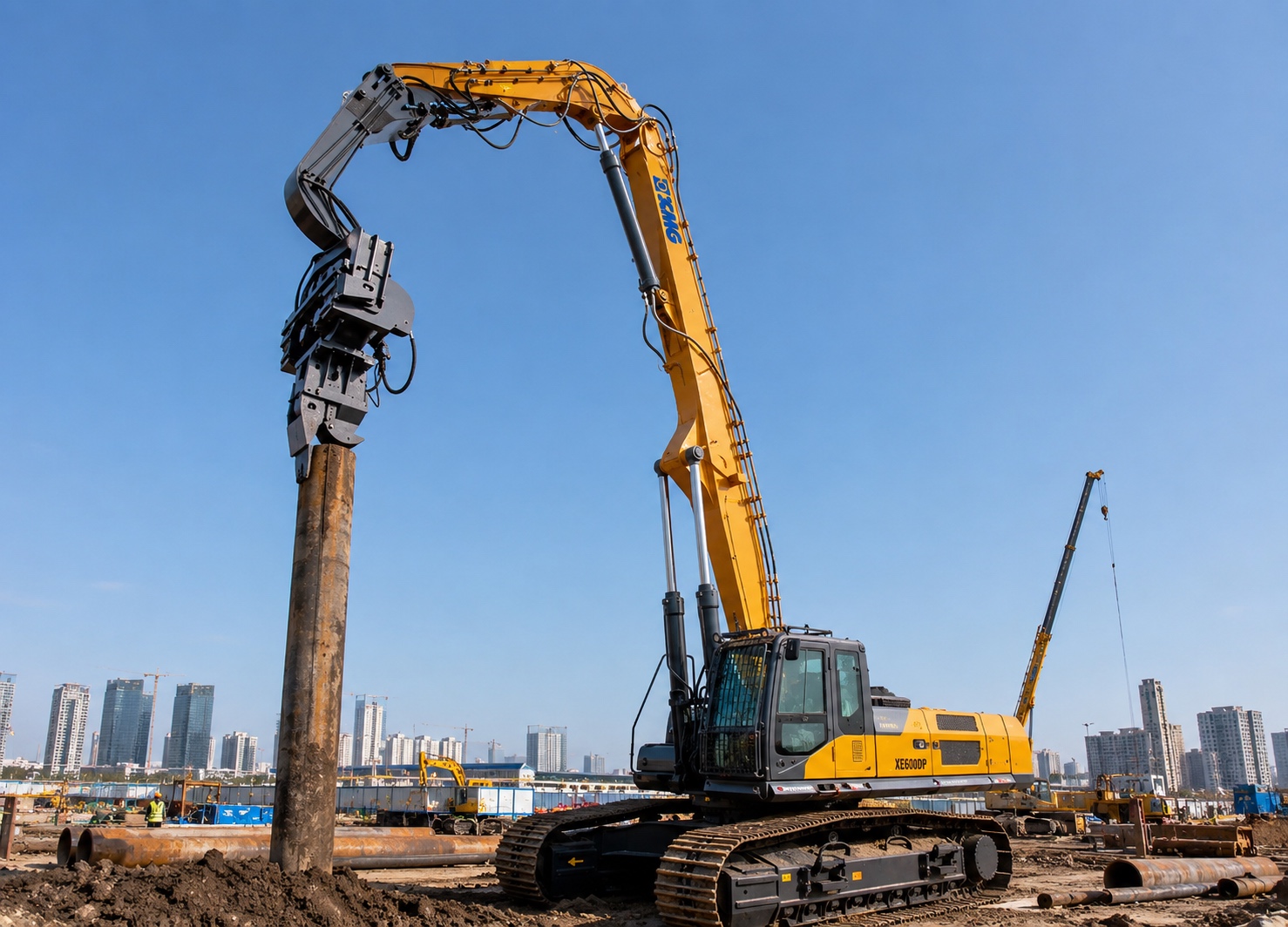

The XE600DP hydraulic pile driver stands out for its versatility and advanced technology, making it ideal for a wide range of applications including subway stations, tunnels, bridges, and municipal engineering projects. With a maximum pile height of 17m, it efficiently handles steel sheet piles ranging from 6-15m. Powered by a low-speed, high-torque engine meeting National III emission standards, it delivers robust performance (up to 297KW) while ensuring economical operation. Its hydraulic drive system features independent heat dissipation and a larger displacement main pump, providing stable and precise control even in low-temperature conditions. The machine's L-shaped extended heavy-duty chassis, equipped with widened triple grouser crawlers, enhances stability during operation, while the reinforced four-wheel design ensures reliable performance. Additionally, the hydraulic system utilizes an advanced variable plunger pump for superior and consistent output, with high-pressure main oil circuit and steel pipe + withholding hose structure ensuring durability and reliability, making it a standout choice for demanding piling tasks.
