CAT 336D2L
Specifications & Parameters
| Engine Model | Cat C9 ACERT |
| Rated Power(kW) | 208 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 740 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 17-21 |
| Engine Displacement(L) | 8.8 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 620 |
| Hydraulic Tank(L) | 175 |
| Travel Speed(km/h) | 4.6 |
| Bucket Capacity(m³) | 1.88 |
| Bucket Digging Force(kN) | 210 |
| Boom Length(mm) | 6500 |
| Stick Length(mm) | 2800 |
| Maximum Excavation Radius(mm) | 11760 |
| Maximum Digging Height(mm) | 10730 |
| Maximum Digging Depth(mm) | 8210 |
| Specifications(mm) | 11210×3190×3670 |
| Operating Weight(kg&ton) | 34600 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
-Efficient and energy-saving:
-Using Cat ® C9 ACERT ™ Engine+brand new hydraulic system, up to 9% more fuel-efficient compared to previous models.
-Equipped with automatic engine speed control function, it automatically reduces the speed when there is no load or light load, further reducing fuel consumption.
-Powerful power:
-Provide high excavation force (bucket excavation force of about 210 kN) and traction force, suitable for high-intensity operations.
-The hydraulic system adopts a dual pump design, with a compact layout of the main pump, control valve, and oil tank, reducing pressure loss and improving response speed.
-Operating comfort and safety:
-Spacious cab equipped with E-series color monitor, suspended seats, and temperature controlled ventilation system.
-Panoramic glass directly bonded, no window frame design, wide field of view; Standard rearview camera (some configurations).
-Easy maintenance:
-Most maintenance points can be operated from the ground for easy daily inspection and maintenance.
-The three-stage fuel filtration system effectively deals with inferior fuel and ensures engine reliability.
-Electric fuel filling pump to prevent air from entering the system during filter replacement.
-Durable structure:
-X-shaped box section frame with strong torsional resistance; The track support wheels and guide wheels are sealed and lubricated, with a long service life.
-Equipped with boom and stick regeneration circuits to recover energy, shorten cycle time, and improve efficiency.
-Multifunctionality:
-It can adapt to various attachments, such as hydraulic hammers, grab buckets, scissors, crushers, etc., to improve equipment utilization.
-Applicable working conditions: heavy operations such as rock engineering, waste disposal, and bedrock crushing
Interested in used CAT 336D2L excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

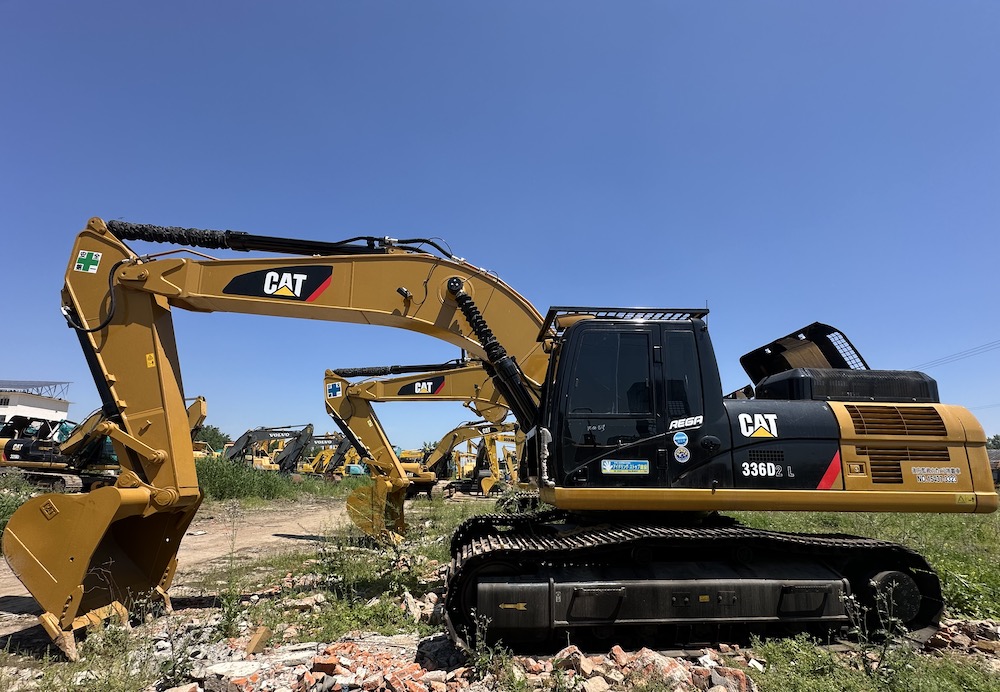

Photos
