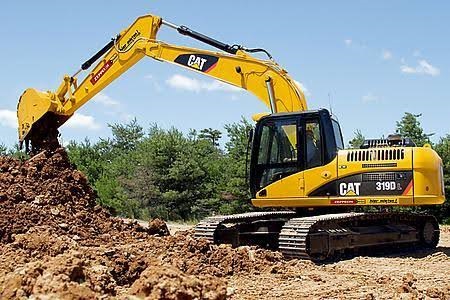

CAT 319D L
Specifications & Parameters
| Engine Model | C4.2 ACERT |
| Rated Power(kW) | 97.7 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 445 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 7.5-10 |
| Engine Displacement(L) | 4.25 |
| Emisson | Stage IIIA |
| Track width(mm) | 700 |
| Fuel Tank(L) | 300 |
| Hydraulic Tank(L) | 106 |
| Travel Speed(km/h) | 4.8 |
| Bucket Capacity(m³) | 0.77 |
| Bucket Digging Force(kN) | 128 |
| Boom Length(mm) | 5300 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 9210 |
| Maximum Digging Height(mm) | 6730 |
| Maximum Digging Depth(mm) | 6600 |
| Specifications(mm) | 8820×2900×3120 |
| Operating Weight(kg&ton) | 19900 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Equipped with Cat C4.2 ACERT Tier3 urea-free engine, 4.25L displacement and 93kW net power. It delivers abundant low-speed torque, adapts to low-grade fuel widely used overseas, and cuts maintenance costs without extra after-treatment consumables.
19.9-ton extended 7-roller wide undercarriage with 700mm wide tracks features ultra-low ground pressure, effectively avoiding sinking on muddy and riverbank ground. Heat-treated heavy-duty track components extend service life.
Regenerative load-sensing hydraulic system provides stronger breakout force and swing torque than 17-ton Cat 316D. It boosts hourly output while maintaining excellent fuel efficiency across all working modes.
Reinforced boom and stick with strengthened welds reduce downtime for long-term demolition and small quarry operations, delivering outstanding durability.
Factory pre-installed high-flow auxiliary hydraulic lines support heavy breakers, grapples and quick couplers without extra refitting for multi-purpose operation.
Compact transport dimension of 8820×2900×3120mm enables easy flatbed haulage, ideal for municipal infrastructure, road construction and small mining projects.
All service access points are arranged on ground-level side panels, eliminating climbing work for fluid and filter replacement and greatly shortening maintenance time.
