CAT 328D LC
Specifications & Parameters
| Engine Model | Cat C7 ACERT |
| Rated Power(kW) | 152 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 985 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 13-18 |
| Engine Displacement(L) | 7.2 |
| Emisson | Stage IIIA |
| Track width(mm) | 600 |
| Fuel Tank(L) | 406 |
| Hydraulic Tank(L) | 153 |
| Travel Speed(km/h) | 4.2 |
| Bucket Capacity(m³) | 1.45 |
| Bucket Digging Force(kN) | 212 |
| Boom Length(mm) | 6100 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 9970 |
| Maximum Digging Height(mm) | 7080 |
| Maximum Digging Depth(mm) | 6970 |
| Specifications(mm) | 9860×3440×3190 |
| Operating Weight(kg&ton) | 32900 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2017 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features

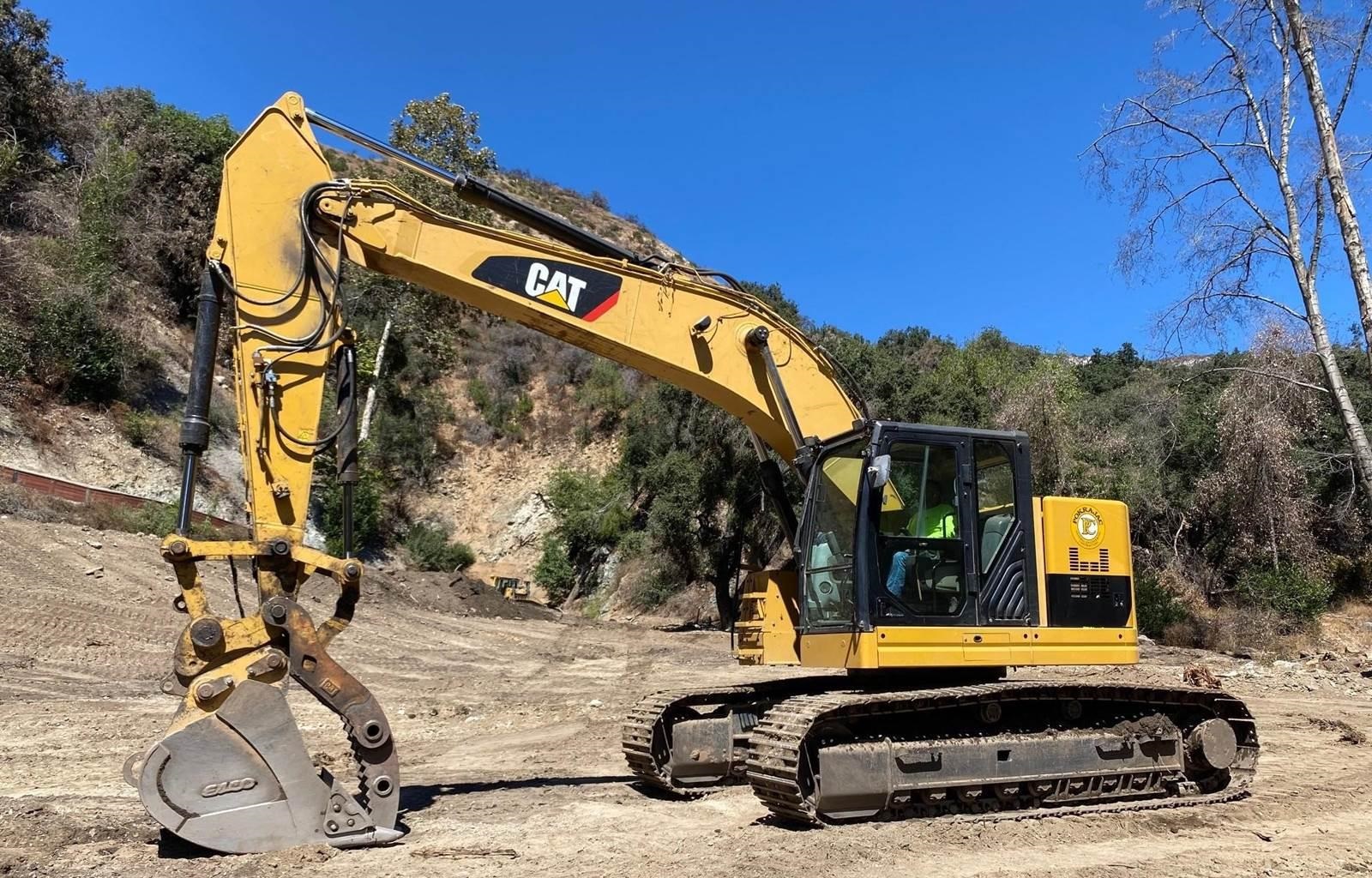

32.9‑ton heavy‑duty long‑undercarriage crawler excavator, well‑suited for quarry material handling, hard rock excavation, large‑volume earth‑moving, highway projects, heavy demolition and large‑scale infrastructure construction.
Equipped with original Cat C7 ACERT six‑cylinder turbo‑charged diesel engine, rated power 152 kW, meets Tier 3 / Stage IIIA emission standard. ADEM A4 electronic engine controller optimizes fuel delivery, automatic engine speed control reduces fuel consumption under variable‑load working conditions, delivers stable output for long‑shift heavy‑duty jobs.
Heavy‑duty LC long‑track undercarriage with nine track rollers per side, thickened track links and high‑wear‑resistance track shoes. Optimized ground‑pressure distribution improves stability during rock digging and mass truck‑loading cycles, extends service life under abrasive quarry and mine‑site environments.
Standard heavy‑duty boom‑stick assembly matched with 1.2‑1.57 m³ general‑purpose or rock bucket provides powerful breakout force for blasted rock excavation and bulk‑material loading. Optional short breaking arm and long‑reach front adapt to rock‑breaking, deep trenching and slope‑shaping assignments.
Mature load‑sensing hydraulic system with large‑displacement main pump, adjustable power modes and one‑touch power boost function. Short working cycle time, supports continuous long‑hour operation of medium‑large hydraulic breakers, ensures smooth compound movements and accurate fine‑control performance.
High‑strength reinforced boom & stick with full‑penetration welds and oversized heavy‑duty pins and bushings. Robust structural design resists frequent rock impact and abrasion, lowers oil‑leak failures and reduces unplanned downtime for round‑the‑clock heavy‑construction shifts.
Factory‑fitted bi‑directional auxiliary hydraulic piping supports hydraulic breakers, grapples and quick couplers without extra field pipe modification. Multi‑attachment compatibility fulfills diverse earth‑moving, demolition and rock‑breaking tasks.
Spacious ROPS‑FOPS certified operator cab with vibration‑damping mounts, multi‑language display, rear‑view camera and automatic air‑conditioning. Cat Product Link telematics enables remote tracking of working hours, fuel consumption and fault codes for efficient jobsite fleet management.
Key daily‑maintenance service points are arranged for ground‑level access. Operators complete fluid replacement and filter servicing without climbing upper structures, saving routine‑maintenance time and cutting overall operating costs.
Interested in used CAT 328D LC excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
