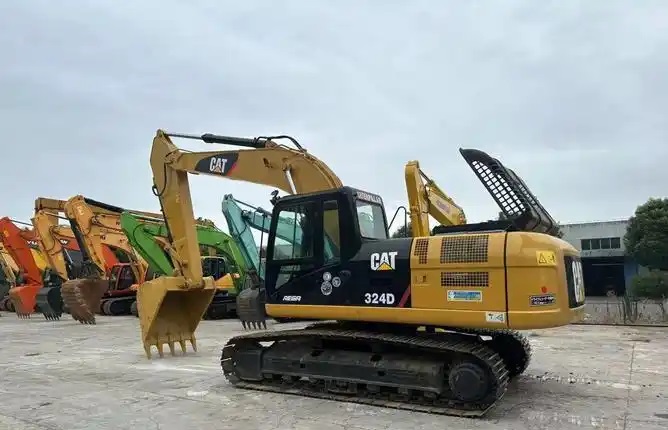

CAT 324D
Specifications & Parameters
| Engine Model | Cat C7 ACERT |
| Rated Power(kW) | 141 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 720 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 11-15 |
| Engine Displacement(L) | 7.2 |
| Emisson | Stage IIIA |
| Track width(mm) | 600 |
| Fuel Tank(L) | 420 |
| Hydraulic Tank(L) | 135 |
| Travel Speed(km/h) | 5.4 |
| Bucket Capacity(m³) | 1.2 |
| Bucket Digging Force(kN) | 192 |
| Boom Length(mm) | 5900 |
| Stick Length(mm) | 2950 |
| Maximum Excavation Radius(mm) | 10549 |
| Maximum Digging Height(mm) | 7043 |
| Maximum Digging Depth(mm) | 7328 |
| Specifications(mm) | 10060×2990×3170 |
| Operating Weight(kg&ton) | 24240 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Cat C7 ACERT Tier3 urea‑free engine with 7.2L displacement & 140 kW net power, stable low‑speed torque output, reliable performance for infrastructure projects, quarry operation and heavy‑duty demolition. Proven fuel system tolerates low‑grade diesel widely used overseas to cut total ownership cost.
24.24‑ton heavy‑duty extended undercarriage with grease‑sealed track links. Heat‑treated track components enhance wear resistance, delivering stable operation on rocky, sloped and muddy construction sites and extending undercarriage service intervals.
Cross‑sensing regenerative dual‑pump hydraulic system with multiple power modes provides powerful breakout force and fast compound cycle movements. Heavy‑lift mode improves lifting performance, balancing high hourly output and favorable fuel economy for rock excavation and loading tasks.
Thickened high‑strength boom & stick with reinforced welding structure, optimized for long‑term heavy‑load quarry and demolition assignments, lowering structural failure risks and reducing unplanned downtime.
Optional factory‑fit bi‑directional auxiliary hydraulic circuit supports heavy rock breakers, grapples and quick couplers without extra refitting, enabling multi‑purpose operation for mining and earth‑moving jobs.
Spacious ROPS‑certified low‑noise cab equipped with color monitor and rear‑view camera, provides panoramic visibility and ergonomic working environment to ease operator fatigue during long continuous shifts.
All key service checkpoints are accessible at ground‑level for fluid and filter replacement, eliminating climbing work and greatly shortening maintenance downtime.
Classic 24‑ton Cat platform with good residual value, worldwide genuine spare‑parts availability, highly popular within global second‑hand excavator market.
Interested in used CAT 324D excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
