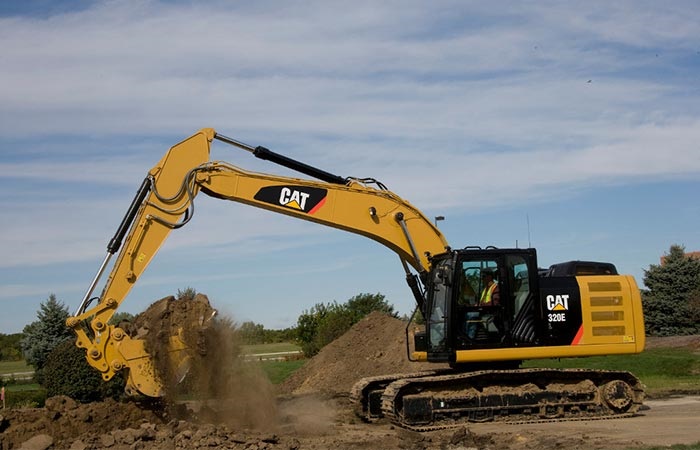

CAT 320E L
Specifications & Parameters
| Engine Model | C6.6 ACERT |
| Rated Power(kW) | 122 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 885 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 9.5-13 |
| Engine Displacement(L) | 6.6 |
| Emisson | Stage IIIA |
| Track width(mm) | 700 |
| Fuel Tank(L) | 410 |
| Hydraulic Tank(L) | 143 |
| Travel Speed(km/h) | 5.6 |
| Bucket Capacity(m³) | 1.19 |
| Bucket Digging Force(kN) | 148 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9880 |
| Maximum Digging Height(mm) | 6490 |
| Maximum Digging Depth(mm) | 6720 |
| Specifications(mm) | 9340×3170×3140 |
| Operating Weight(kg&ton) | 21500 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
21.5‑ton reliable long‑undercarriage medium crawler excavator, widely applied for municipal construction, foundation excavation, site grading, highway projects, light demolition and general earth‑moving works.
Equipped with original Cat C6.6 ACERT six‑cylinder turbo after‑cooled diesel engine, rated power 114 kW, meets Tier 4 Interim / Stage IIIB emission standard. Supports automatic DPF regeneration without interrupting daily operation, compatible with B20 biodiesel fuel. Multiple working modes reduce fuel consumption compared to D‑series models, delivers stable power output for long‑hour continuous jobsite operations.
Reinforced LC long‑track undercarriage with heavy‑duty track rollers, thickened track links and triple‑grouser wear‑resistant track shoes. Optimized ground‑pressure distribution ensures solid stability during digging and truck‑loading cycles, extends service‑life under abrasive and muddy jobsite environments.
Standard heavy‑duty boom‑arm assembly matched with 0.9‑1.19 m³ general‑purpose or rock bucket provides powerful breakout force for hard‑soil excavation and blasted‑rock material handling. Optional short breaking arm and long‑reach front adapt to rock‑breaking, deep trenching and slope‑shaping assignments.
Advanced load‑sensing hydraulic system with high‑efficiency main pump, adjustable power modes and one‑touch power‑boost function. Short work‑cycle time, supports continuous operation of medium‑size hydraulic breakers, guarantees smooth compound movements and precise fine‑control performance.
High‑strength reinforced boom & stick with full‑penetration reinforced welds and oversized heavy‑duty pins & bushings. Robust structural design resists frequent rock impact and abrasion, reduces oil‑leak failures and minimizes unplanned downtime for round‑the‑clock construction‑site shifts.
Factory‑fitted bi‑directional auxiliary hydraulic piping supports hydraulic breakers, grapples and quick couplers without extra on‑site pipe modification. Multi‑attachment compatibility fulfills diversified earth‑moving, demolition and rock‑breaking tasks.
Spacious ROPS‑FOPS certified operator cab with vibration‑damping mounts, large multi‑language color LCD display, rear‑view camera and automatic air‑conditioning. Cat Product Link telematics enables remote tracking of working hours, fuel consumption and fault codes for efficient jobsite fleet management.
Key daily‑maintenance service points adopt ground‑level side‑access layout. Operators complete fluid replacement and filter servicing without climbing upper structures, saving routine‑maintenance time and cutting overall operating costs.
Interested in used CAT 320E L excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
