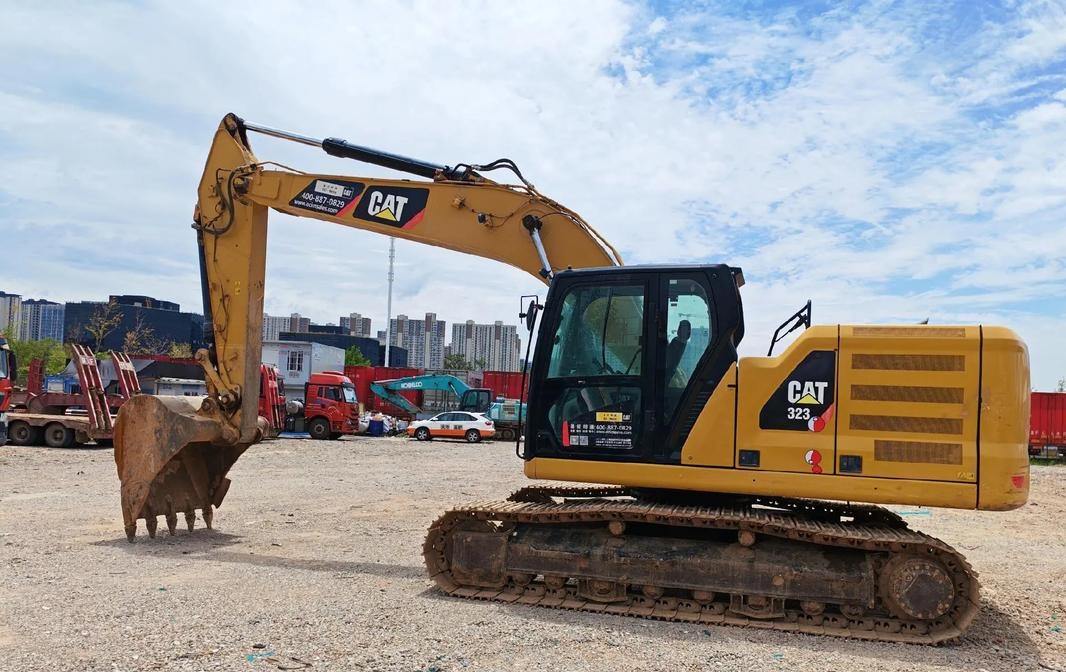

CAT 323F
Specifications & Parameters
| Engine Model | Cat C7.1 ACERT |
| Rated Power(kW) | 122 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 725 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 10-14 |
| Engine Displacement(L) | 7.1 |
| Emisson | Stage IV |
| Track width(mm) | 600 |
| Fuel Tank(L) | 345 |
| Hydraulic Tank(L) | 135 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1.38 |
| Bucket Digging Force(kN) | 188 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9960 |
| Maximum Digging Height(mm) | 6560 |
| Maximum Digging Depth(mm) | 6730 |
| Specifications(mm) | 9530×3170×3120 |
| Operating Weight(kg&ton) | 24000 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
23.4‑ton versatile medium‑size long‑undercarriage crawler excavator, well‑suited for municipal projects, road construction, foundation excavation, site grading, quarry secondary breaking and general large‑scale earth‑moving assignments.
Equipped with original Cat C7.1 ACERT six‑cylinder turbo after‑cooled diesel engine, rated power 120 kW, meets Tier 4 Final emission standard. DOC+DPF+SCR after‑treatment system, compatible with B20 biodiesel, no power derating up to 3000 m altitude. Multiple working modes including ECO mode reduce fuel consumption, delivers consistent power output for long‑shift heavy‑duty jobsite operations.
Reinforced LC long‑track undercarriage with heavy‑duty track rollers, thickened track links and wear‑resistant triple‑grouser track shoes. Optimized ground‑pressure distribution guarantees stable digging and truck‑loading performance, extends service‑life under abrasive and uneven jobsite conditions.
Standard boom‑arm assembly matched with 1.0‑1.3 m³ general‑purpose or rock bucket provides reliable breakout force for hard‑soil excavation and blasted‑rock material handling. Optional short breaking arm and long‑reach front adapt to rock‑breaking, deep trenching and slope‑finishing tasks.
Advanced load‑sensing hydraulic system, max system flow reaches 429 L/min. Adjustable power modes and one‑touch power‑boost function shorten work‑cycle time, supports continuous running of medium‑size hydraulic breakers, ensures smooth compound movements and high‑precision fine‑control performance.
High‑strength reinforced boom & stick with full‑penetration strengthened welds and oversized heavy‑duty pins & bushings. Robust structural design resists rock impact and abrasion, lowers oil‑leak failures and minimizes unplanned downtime for round‑the‑clock construction‑site shifts.
Factory‑installed bi‑directional auxiliary hydraulic piping fits hydraulic breakers, grapples and quick couplers without extra on‑site pipe modification. Multi‑attachment compatibility fulfills diversified earth‑moving, demolition and rock‑breaking works.
Spacious ROPS‑FOPS certified operator cab with vibration‑isolation mounts, multi‑language color display, rear‑view camera and automatic air‑conditioning. Cat Product Link telematics enables remote monitoring of working hours, fuel consumption and fault codes for efficient jobsite fleet management.
Major daily‑maintenance service points are accessible at ground‑level. Operators conduct fluid replacement and filter servicing without climbing upper structures, saving routine‑maintenance time and cutting overall operating costs.
Interested in used CAT 323F excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
