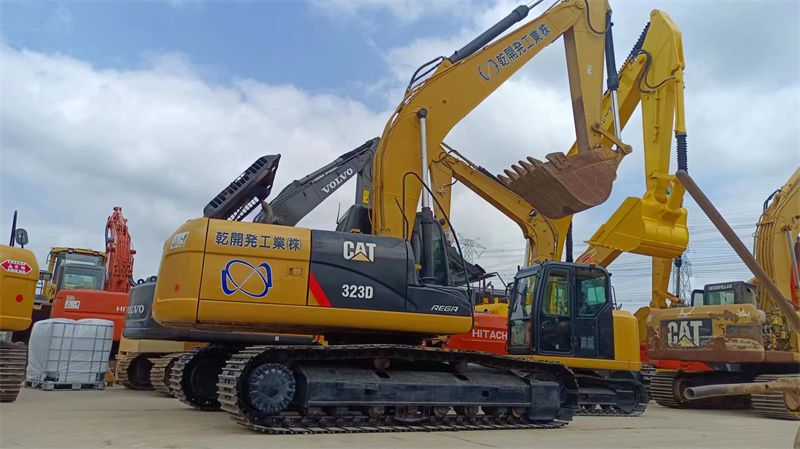

CAT 323D
Specifications & Parameters
| Engine Model | Cat C6.4 ACERT |
| Rated Power(kW) | 118 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 560 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 10-14 |
| Engine Displacement(L) | 6.4 |
| Emisson | Stage IIIA |
| Track width(mm) | 600 |
| Fuel Tank(L) | 410 |
| Hydraulic Tank(L) | 135 |
| Travel Speed(km/h) | 5.6 |
| Bucket Capacity(m³) | 1.2 |
| Bucket Digging Force(kN) | 188 |
| Boom Length(mm) | 5800 |
| Stick Length(mm) | 2950 |
| Maximum Excavation Radius(mm) | 9960 |
| Maximum Digging Height(mm) | 6560 |
| Maximum Digging Depth(mm) | 6690 |
| Specifications(mm) | 9680×2980×3160 |
| Operating Weight(kg&ton) | 22570 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price. |
Features
Cat C6.4 Tier3 urea-free engine with 6.4L displacement, rated power 118 kW, low-pressure common rail fuel system compatible with low-grade diesel, superior digging & lifting capacity than 20-ton models, stable performance for municipal & small quarry work.
22.57t extended 8-roller wide undercarriage with low ground pressure prevents sinking on soft muddy ground; heat-treated heavy-duty track components extend service life.
Cross-sensing regenerative hydraulics with 3 power modes deliver powerful breakout force, 12% higher productivity vs Cat 320D while controlling fuel consumption.
Reinforced thick wear-resistant boom & stick with strengthened welds reduce breakdown frequency on urban demolition and small rock sites.
Factory bi-directional auxiliary hydraulics support breakers, grapples and quick couplers without extra refitting.
Sealed low-noise FOPS cab with color monitor and rear camera improves safety and comfort in narrow urban job sites.
All ground-level service access points eliminate climbing work for fluid and filter replacement, shortening maintenance downtime greatly.
