Used HYUNDAI 350LVS
Parameters
| Engine Model | HYUNDAI HE8.9 |
| Rated Power(kW) | 221 |
| Engine Revolutions(rpm) | 1850 |
| Maximum Torque(N·m) | 450 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 20-24 |
| Engine Displacement(L) | 8.9 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 560 |
| Hydraulic Tank(L) | 190 |
| Travel Speed(km/h) | 6.3 |
| Bucket Capacity(m³) | 1.6 |
| Bucket Digging Force(kN) | 210 |
| Boom Length(mm) | 6450 |
| Stick Length(mm) | 2850 |
| Maximum Excavation Radius(mm) | 10920 |
| Maximum Digging Height(mm) | 10540 |
| Maximum Digging Depth(mm) | 6970 |
| Specifications(mm) | 10990×3280×3460 |
| Operating Weight(kg&ton) | 33200 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Korea |
| Year of Production | 2015 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Powerful and efficient power
Equipped with a modern HE8.9 engine, the rated power reaches 221 kW (296 HP) at 1850 rpm, providing ample power output and adapting to complex working conditions.
Outstanding fuel economy
By optimizing the oil circuit design of the main control valve, the operating speed and composite operating capability are improved, while fuel consumption is reduced by about 13%; The fuel tank capacity reaches 560 liters, extending the daily operation time.
Strong structural durability
Adopting heavy-duty large and small arms, and using cast steel materials for key components, the durability life is increased by more than 1.5 times
The welding strength of the lower frame has increased by 20%, and the support ring has been thickened to adapt to high-intensity continuous operation
Excellent cooling performance
Equipped with a 28 inch large-sized direct cooling fan, coupled with an oil resistant and heat-resistant polyurethane sponge sealed cooling module, to ensure stable operation in high temperature environments
High homework efficiency
The working efficiency of the rotary motor has been improved by 27.7%
The efficiency of loading operations has increased by 21%, and the hourly workload has increased
Standard heavy-duty rock bucket (bucket capacity 1.6 m ³) with good wear resistance and extended service life
Driving Comfort and Safety
The cabin space is spacious and the view is wide (panoramic front window+large rear window)
Ergonomic design, equipped with air conditioning, suspended seats, and a low-noise environment
Configure safety devices such as emergency stop switches and automatic safety locks
Convenient maintenance
The layout of the engine and hydraulic system is reasonable, and the maintenance points are centralized; Provide detailed maintenance manuals to reduce future usage costs.

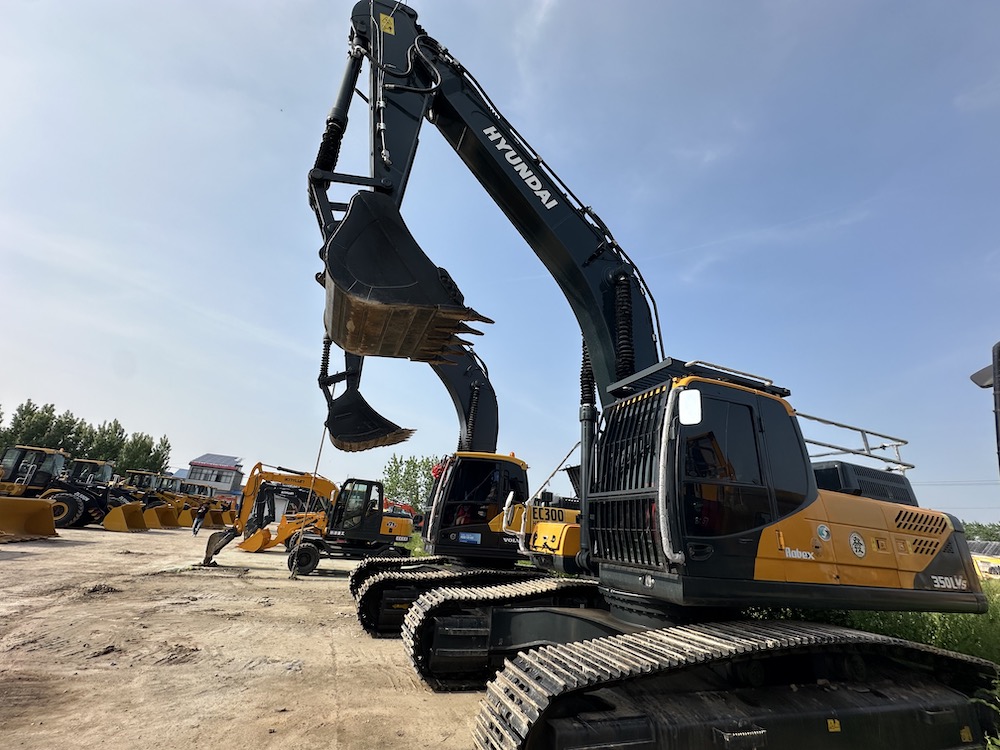

Photos
