HYUNDAI HX220S
Specifications & Parameters
| Engine Model | Cummins B7 |
| Rated Power(kW) | 110k |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 746 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 14-18 |
| Engine Displacement(L) | 5.9 |
| Emisson | China Stage Ⅱ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 395 |
| Hydraulic Tank(L) | 225 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1.2 |
| Bucket Digging Force(kN) | 154 |
| Boom Length(mm) | 5680 |
| Stick Length(mm) | 2920 |
| Maximum Excavation Radius(mm) | 9970 |
| Maximum Digging Height(mm) | 9445 |
| Maximum Digging Depth(mm) | 6550 |
| Specifications(mm) | 9560×2990×3030 |
| Operating Weight(kg&ton) | 22650 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Korea |
| Year of Production | 2015 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Power system: Equipped with Cummins 6-cylinder engine, no EGR design to prevent power loss, combined with DOC+DPF+SCR after treatment system to ensure sustained strong power and meet environmental requirements.
Hydraulic and Control: Equipped with EPIC electronic independent main pump control system and ECO economic operation guidance, optimized main control valve core oil passage, with an average fuel consumption reduction of about 17% compared to the previous generation model.
Comfort and Safety: The all-new cab design enhances operational comfort, comes standard with an electronic clutch fan and lower protective net, provides more precise temperature control, and ensures safer operations.
Interested in used HYUNDAI HX220S excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

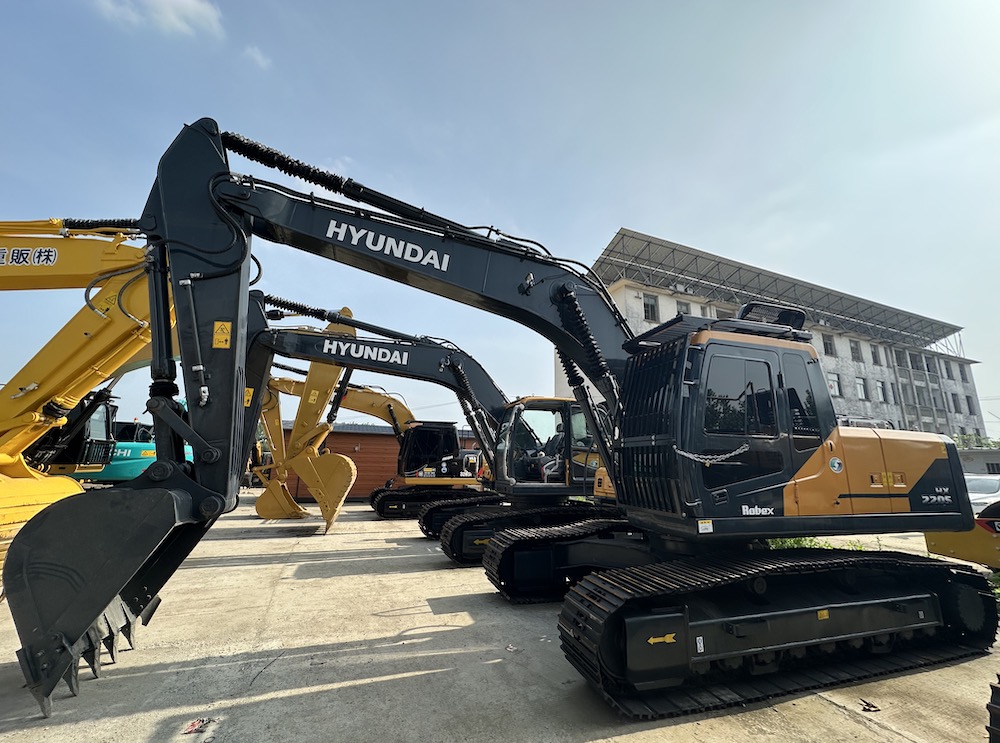

Photos
