HYUNDAI 305LC-9S
Specifications & Parameters
| Engine Model | Cummins C8.3-C |
| Rated Power(kW) | 198 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 1218.4 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 19-23 |
| Engine Displacement(L) | 8.3 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 500 |
| Hydraulic Tank(L) | 190 |
| Travel Speed(km/h) | 5.2 |
| Bucket Capacity(m³) | 1.38 |
| Bucket Digging Force(kN) | 192 |
| Boom Length(mm) | 6250 |
| Stick Length(mm) | 3050 |
| Maximum Excavation Radius(mm) | 10820 |
| Maximum Digging Height(mm) | 10160 |
| Maximum Digging Depth(mm) | 7500 |
| Specifications(mm) | 10560×3200×3300 |
| Operating Weight(kg&ton) | 30200 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2015 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
-Strong power
Equipped with Cummins QSB6.7 diesel engine, the rated power is 169 kW (some data indicate 162 kW, but the mainstream certification value is 169 kW), meeting the requirements of efficient operation.
-Efficient and stable hydraulic system
Equipped with a dual variable axial piston pump hydraulic system, the maximum flow rate of the main pump is 2 × 252 L/min, and the working oil pressure is 34.3 MPa, ensuring fast action and precise control.
-Strong homework ability
-Standard bucket capacity: 1.38 m ³
-Maximum excavation depth: 7500 mm
-Maximum excavation radius: 10820 mm
-Bucket excavation force: 189.3 kN, boom excavation force: 136.3 kN
-Durable and sturdy structure
-The boom is 6250 mm long and the arm is 3050 mm long, made of high-strength steel
-The total length of the track is 4940 mm, and the width of the track plate is 600 mm, improving off-road and off-road performance
-Good operational comfort
-The cab is designed ergonomically and equipped with constant temperature air conditioning, intelligent LCD display screen, and supports remote fault diagnosis
-Wide field of vision, low noise, and improved comfort for long-term work
-High maintenance convenience
-Modular design, centralized arrangement of lubrication points, hydraulic filter replacement cycle up to 1000 hours
-Integrated optimization of engine and hydraulic system to reduce daily maintenance difficulty.
Interested in used HYUNDAI 305LC-9S excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

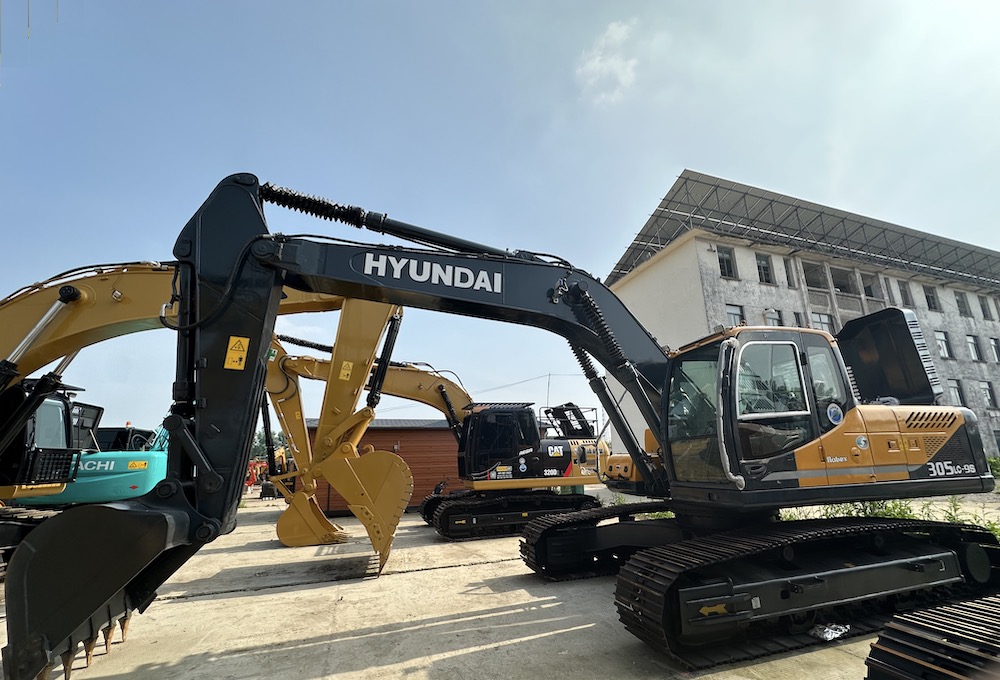

Photos
