Used HYUNDAI R60VS
Parameters
| Engine Model | Yanmar 4TNV98-E |
| Rated Power(kW) | 40.5 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 20.5 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 5-7 |
| Engine Displacement(L) | 3.319 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 400 |
| Fuel Tank(L) | 120 |
| Hydraulic Tank(L) | 70 |
| Travel Speed(km/h) | 4.2 |
| Bucket Capacity(m³) | 0.21 |
| Bucket Digging Force(kN) | 42 |
| Boom Length(mm) | 3700 |
| Stick Length(mm) | 1700 |
| Maximum Excavation Radius(mm) | 6150 |
| Maximum Digging Height(mm) | 5780 |
| Maximum Digging Depth(mm) | 3820 |
| Specifications(mm) | 5850×1920×2550 |
| Operating Weight(kg&ton) | 5850 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Korea |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Environmentally friendly and high-efficiency power system
Equipped with a Yanmar 4TNV98-E Tier 3 diesel engine, the rated power is 40.5 kW (approximately 54.3 HP) at 2400 rpm, meeting Tier 3 emission standards. This ensures more complete fuel combustion, resulting in lower fuel consumption and cleaner emissions
High-performance hydraulic system
The system adopts the Rexroth hydraulic system from Germany, with a main pump maximum flow rate of 2×55 L/min. It is equipped with a boom flow assembly, a boom hold system, and a parking brake, enhancing operational smoothness and control precision
Structural Reinforcement and Durability
The key structures such as the upper and lower frames, X-shaped central frames, and steel reinforcement frames have been optimized, featuring strong impact resistance and deformation resistance, making them suitable for harsh working conditions
The pin connection adopts a sintered sleeve + resin gasket to reduce wear, noise, and extend the lubrication cycle
Operating Comfort and Human-Machine Design
The cab supports multi-angle adjustment of the driver's seat, is equipped with storage compartments and digital entertainment devices, and helps reduce operational fatigue
The engine compartment features sound-absorbing sponge and vibration-damping pads, keeping the overall noise level below 99 dBA to enhance working environment comfort
Work performance parameters
Total machine weight: 5850 kg
Rated bucket capacity: 0.21 m³
Maximum digging depth: 3820 mm
Maximum digging radius: 6150 mm
Walking speed: 4.0 / 2.2 km/h (high/low)
Climbing capability: 70%, performs well in complex terrains such as mountains
Wide range of applications
Suitable for various projects such as landscaping, river dredging, utility tunnel construction, building construction, agricultural water conservancy, and indoor demolition

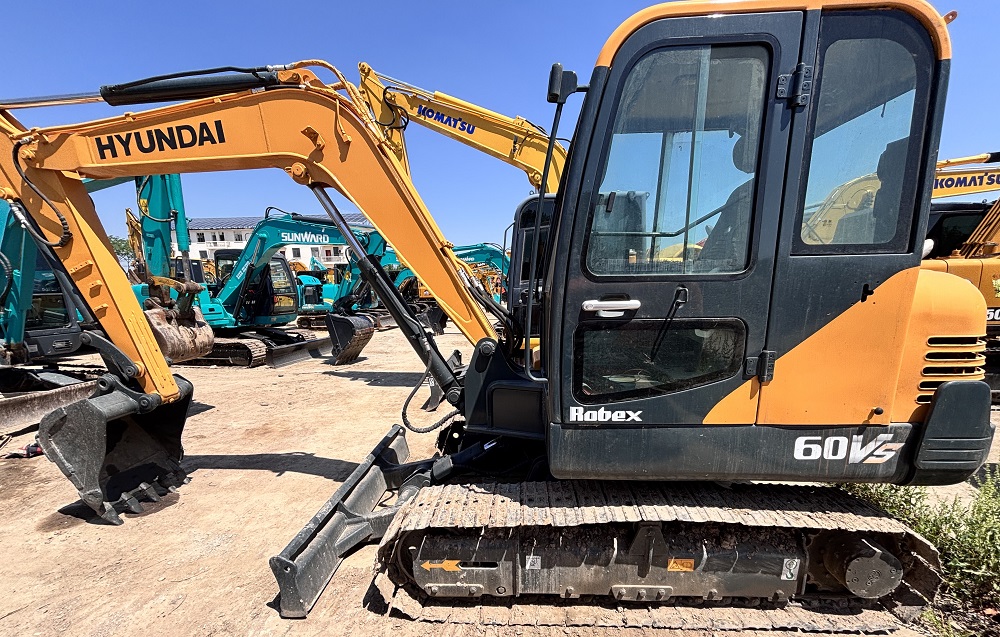

Photos
