Used Hyundai HX225HD
Parameters
| Engine Model | Hyundai S6D102 |
| Rated Power(kW) | 164 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 647 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 11–13 |
| Engine Displacement(L) | 5.9 |
| Emisson | China Stage III |
| Track width(mm) | 600 |
| Fuel Tank(L) | 320 |
| Hydraulic Tank(L) | 210 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1.05 |
| Bucket Digging Force(kN) | 142 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9,800 |
| Maximum Digging Height(mm) | 7200 |
| Maximum Digging Depth(mm) | 6700 |
| Specifications(mm) | 9550×2990×3030 |
| Operating Weight(kg&ton) | 22500 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Korea |
| Year of Production | 2025 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Efficient and energy-saving operation
Equipped with Cummins B5.9-C or QSB6.7 engines, with a rated power of approximately 112-113 kW and high fuel efficiency.
Equipped with CAPO (Computer Aided Power Optimization) system, it automatically adjusts the engine and main pump matching according to the load, reducing fuel consumption by 10% -15%
Automatic idle function: When the pilot valve is in the neutral position for more than 4 seconds, the engine automatically decelerates to 850-1000 rpm, reducing idle fuel consumption and noise
Strengthen structural durability
The heavy-duty boom and arm are made of cast steel material, which increases the service life by 1.5 times
The welding strength of the lower frame has increased by 20%, and the support ring has been thickened to adapt to high-intensity mining and earthwork operations
Standard reinforced bucket, wear-resistant design, reduced wear rate, and decreased maintenance costs
Intelligent hydraulic and control system
Optimization of the main control valve oil circuit improves operational speed and composite efficiency, resulting in a higher loading volume per hour
Flow regeneration system: prevents oil cylinder cavitation, ensuring smoother and faster operation
VPC (Variable Pilot Pressure Control) system: precise control of the main pump flow through handle input, achieving energy-saving and response balance
Comfortable and safe cab
Panoramic glass design (front, rear, side windows), with no blind spots in the field of view
Low noise environment (<75 dB), ergonomic adjustable seat and handle layout to reduce operational fatigue
Enhanced cab frame to improve roll over protection (ROPS) and falling object protection (FOPS) safety
Convenient maintenance design
Cummins engine parts reduced by 40%, with low failure rate and no need for specialized tools for maintenance
Centralized layout of all checkpoints for more efficient daily maintenance

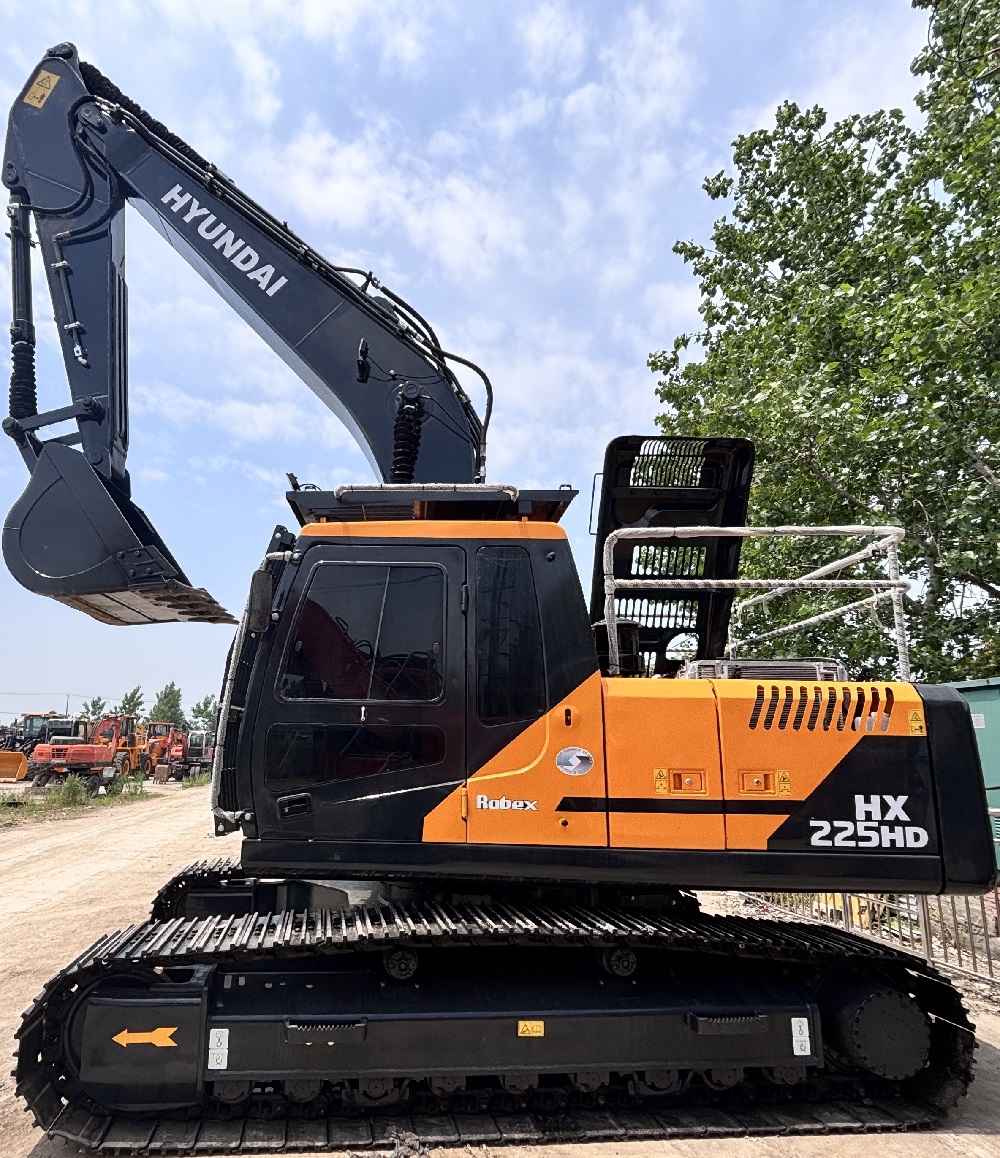

Photos
