Used HYUNDAI 305lc-9t
Parameters
| Engine Model | Cummins C8.3-C |
| Rated Power(kW) | 198 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 1,218 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 13-17 |
| Engine Displacement(L) | 8.3 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 500 |
| Hydraulic Tank(L) | 190 |
| Travel Speed(km/h) | 5.2 |
| Bucket Capacity(m³) | 1.38 |
| Bucket Digging Force(kN) | 192 |
| Boom Length(mm) | 6250 |
| Stick Length(mm) | 3570 |
| Maximum Excavation Radius(mm) | 10,820 |
| Maximum Digging Height(mm) | 7,110 |
| Maximum Digging Depth(mm) | 7,500 |
| Specifications(mm) | 10560×3200×3300 |
| Operating Weight(kg&ton) | 30200 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Korea |
| Year of Production | 2016 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Power and fuel economy
Equipped with Cummins C8.3-C direct injection engine, six cylinder, four stroke, turbocharged intercooled, rated power 196 kW (198 kW) @ 1900 rpm, displacement 8.3L
The engine can meet emission standards without the need for an electronic control system, reducing the number of parts by 40% and improving reliability and durability
The fuel tank capacity is 500L (partially recorded as 480L), balancing long operating time and fuel economy
Hydraulic and operational performance
Adopting CAPO (Computer Aided Power Optimization) hydraulic system to achieve optimal matching between engine and main pump
Equipped with automatic idle, power boost, self diagnosis, flow regeneration and other functions to improve operational efficiency and reduce fuel consumption
The digging force of the bucket is 192 kN, the digging force of the boom is 136 kN, the maximum digging depth is 7500 mm, and the maximum digging height is 10160 mm
Standard bucket capacity of 1.38 m ³, suitable for large-scale earthwork operations
Structure and Durability
High strength arm frame and box type lower frame are welded with low stress steel plates to enhance load-bearing capacity and stability
The track system is equipped with adjusters, vibration absorbing springs, and high-strength protective frames to ensure that the track chain does not derail and adapt to complex terrain
The working weight of the whole machine is 30200 kg, the grounding pressure is 0.58 kPa, and the climbing ability is 35 °
Operating comfort and safety
Low noise cab, equipped with ergonomic wide seats, air conditioning, USB port, MP3 player, to enhance operational comfort
Panoramic view design (front, side, rear windows) enhances operational safety
Equipped with anti-skid devices, overload warning system, and some versions include anti roll protection

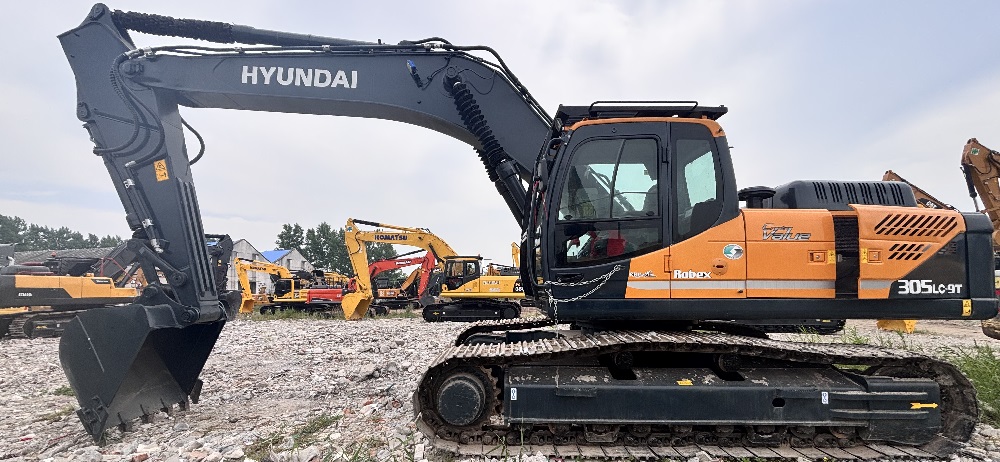

Photos
