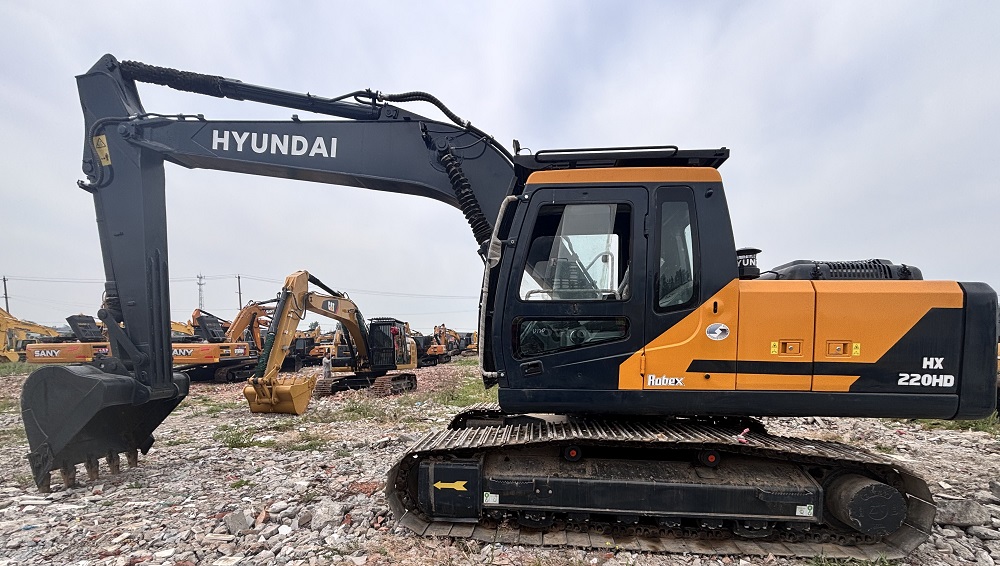

HYUNDAI HX220HD
Specifications & Parameters
| Engine Model | Hyundai 6BTA5.9-C |
| Rated Power(kW) | 110 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 627.63 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 12-15 |
| Engine Displacement(L) | 5.9 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 340 |
| Hydraulic Tank(L) | 160 |
| Travel Speed(km/h) | 5.7 |
| Bucket Capacity(m³) | 1.2 |
| Bucket Digging Force(kN) | 152 |
| Boom Length(mm) | 5,680 |
| Stick Length(mm) | 2920 |
| Maximum Excavation Radius(mm) | 9,980 |
| Maximum Digging Height(mm) | 9140 |
| Maximum Digging Depth(mm) | 7360 |
| Specifications(mm) | 9530×3190×3030 |
| Operating Weight(kg&ton) | 21420 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Korea |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1、 Core Features
Homework weight: approximately 20-22.65 tons (slightly different configurations)
Engine: Cummins B7 or F4.5 series is commonly used, with a rated power of 108-125 kW, meeting Euro 4/Tier II emission standards
Hydraulic system: equipped with Kawasaki or imported high-end hydraulic components, supporting 100% flow control, fast response, and low energy consumption
Track design: Track shoe width of 600-1200mm, low grounding pressure, traction about 30% stronger than competitors, suitable for soft or uneven terrain
Certification standards: Passed CE and ISO9001:2000 certification, in compliance with international safety and quality standards
2、 Main advantages
High stability and passability
The wide track design significantly reduces the pressure on the ground (as low as 0.48 kPa), prevents subsidence, and is suitable for complex terrains such as wetlands and sandy areas
Strong mining performance
Maximum excavation depth: 6.8-7.36 meters (basic type) to 10.1 meters (Pro type)
Maximum excavation radius: 10.95-11.15 meters
The bucket thrust reaches 15.4 kN, and the boom thrust is 11.6 kN
Operating comfort and safety
Panoramic air-conditioned cab reduces noise and vibration, enhancing comfort during long-term operations
Equipped with a secure authentication operation protection system to ensure personnel safety
High reliability and low maintenance cost
Adopting high-strength steel and anti-corrosion materials to adapt to harsh environments
Modular structure design for easy maintenance and short average maintenance cycle
Provide a 1-year warranty for the entire machine
Multi purpose scalability
Support quick replacement of various attachments, such as:
Hydraulic breaker hammer (for dismantling)
Grab bucket (used for forestry or material handling)
Adjust arm length (can be extended up to 15%, up to 12 meters)
Fuel economy
The Pro model saves up to 33% fuel compared to the base model (with a fuel consumption as low as 12 L/hr), which is in line with the trend of green construction
Interested in used HYUNDAI HX220HD excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
