CAT 349D
Specifications & Parameters
| Engine Model | Cat® C13 ACERT |
| Rated Power(kW) | 283 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1700 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 41-49 |
| Engine Displacement(L) | 12.5 |
| Emisson | China Stage Ⅱ |
| Track width(mm) | 750 |
| Fuel Tank(L) | 705 |
| Hydraulic Tank(L) | 243 |
| Travel Speed(km/h) | 4.5 |
| Bucket Capacity(m³) | 3.11 |
| Bucket Digging Force(kN) | 267 |
| Boom Length(mm) | 7400 |
| Stick Length(mm) | 4300 |
| Maximum Excavation Radius(mm) | 12940 |
| Maximum Digging Height(mm) | 9000 |
| Maximum Digging Depth(mm) | 8920 |
| Specifications(mm) | 12450×3640×3680 |
| Operating Weight(kg&ton) | 46285 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2010 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Powerful: Equipped with Cat C13 ACERT ™ Diesel engine, meeting national/Euro 2 and above emission standards, balancing high power and low fuel consumption.
Outstanding fuel economy: using MEUI (mechanically driven single unit fuel injection) and ADEM ™ The A4 electronic control system achieves precise fuel control, reducing fuel consumption by up to 9% in economy mode compared to previous models.
Efficient hydraulic system: The maximum flow rate of the main pump is 734 L/min, and the system pressure is 35 MPa; Equipped with boom and stick regeneration circuits to recover energy and improve cycle speed; The boom and swing automatic priority function does not require manual switching, improving work efficiency
Homework ability and adaptability
Large bucket capacity: supports 1.8-3.11 m ³, suitable for various working conditions (such as earthwork, mining, demolition, etc.), with super strong excavation power. Multi chassis configuration: Provides optional components such as fixed track gauge, variable track gauge, PPR2 positive pin track, cast idler, etc., to adapt to harsh working conditions such as mining and long-distance transfer.
Comfort and safety of operation: humanized cab; Full field of view without window frame glass+polycarbonate skylight, providing a panoramic view; Boost ventilation system with optional fresh/recirculation air; Air suspension seat, supporting multi-directional adjustment.
Safety design:
Hydraulic start control lever (must be placed in the operating position to start); The pre start self check system prompts abnormal oil levels through an LCD color monitor (supporting 27 languages). The bottom of the cab is made of a thick steel pipe frame and can be equipped with anti falling object protection structures (ROPS/FOPS).;
Reliability and maintenance convenience: High durability structure: The main frame adopts a box shaped cross-section and mechanical arm welding, with high torsional stiffness; The track connecting rod has been optimized for stress dispersion, resulting in a longer lifespan.
Low maintenance cost: engine oil change cycle of 500 hours; Fewer filters and longer maintenance intervals; Centralized lubrication points and remote oil samples/pressure ports are convenient for maintenance.
Interested in used CAT 349D excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

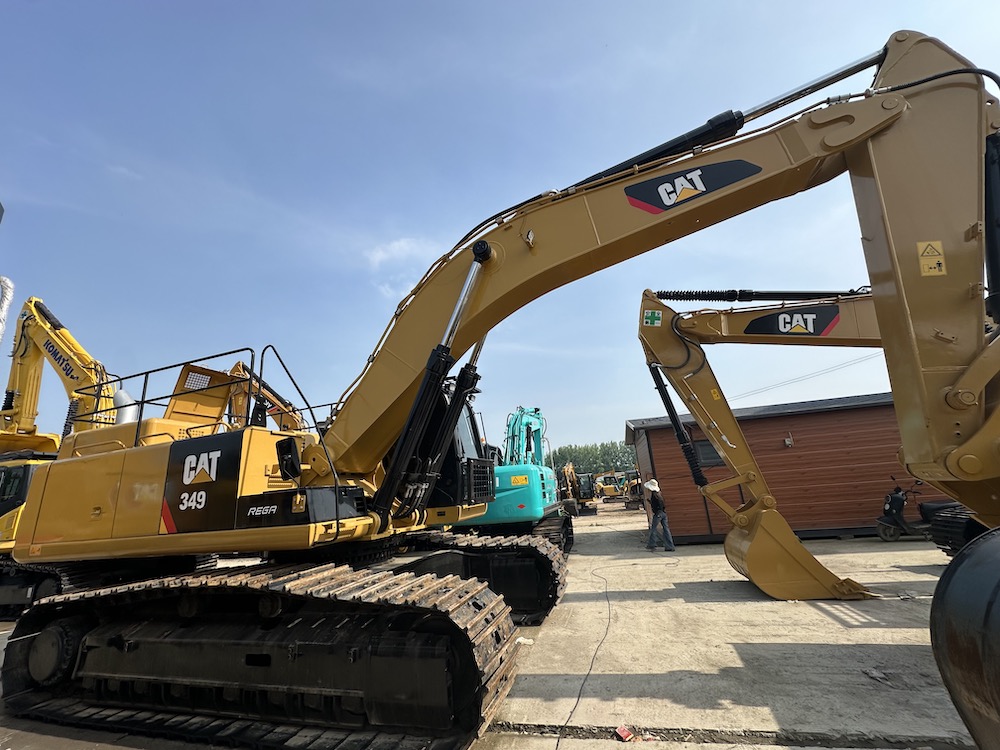

Photos
