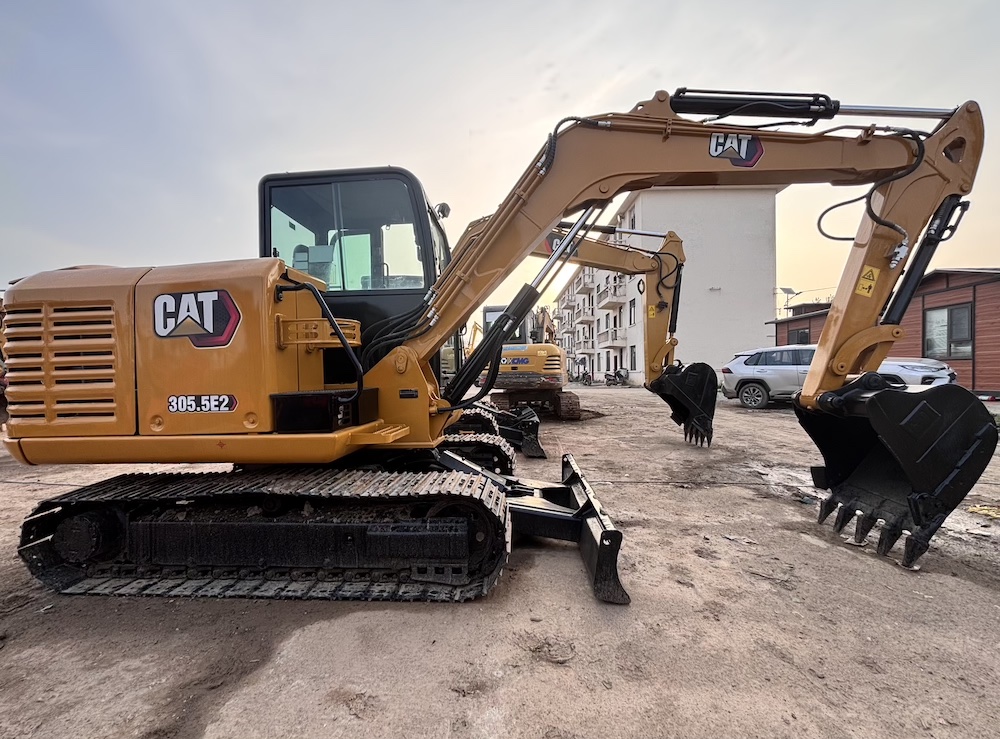

CAT 305.5E2
Specifications & Parameters
| Engine Model | Cat C2.4 DI |
| Rated Power(kW) | 34.1 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 175 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 3.5–4.0 |
| Engine Displacement(L) | 2.4 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 400 |
| Fuel Tank(L) | 78 |
| Hydraulic Tank(L) | 58 |
| Travel Speed(km/h) | 2.4 |
| Bucket Capacity(m³) | 0.22 |
| Bucket Digging Force(kN) | 35 |
| Boom Length(mm) | 3200 |
| Stick Length(mm) | 1500 |
| Maximum Excavation Radius(mm) | 5955 |
| Maximum Digging Height(mm) | 5460 |
| Maximum Digging Depth(mm) | 3720 |
| Specifications(mm) | 5765×1950×2540 |
| Operating Weight(kg&ton) | 5400 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2018 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
The high-efficiency Cat C2.4 DI engine delivers excellent fuel economy.
Powerful digging force, shorter cycle times and outstanding stability help boost your productivity.
100% pilot-operated controls and a load-sensing hydraulic system ensure smooth, powerful performance.
The heavy-duty structural design ensures the machine’s durability and reliability.
Two large side doors provide excellent access for maintenance.
A low-centre-of-gravity counterweight extending to both sides of the machine enhances stability.
Optional hydraulic lines allow the machine to be fitted with hydraulic attachments.
A viscous cab mounting system and low cab vibration levels ensure operator comfort.
The robust swing motor delivers excellent swing performance and reliability.
The durable travel motor ensures smooth travel and reliable performance.
The visual fuel gauge and hydraulic oil level indicator are fitted with protective covers.
Complies with China’s Stage II noise emission standards.
Equipped with GPS for easy machine management.
Grease-lubricated tracks significantly extend track service life.
The mechanically suspended seat enhances operator comfort.
Translated with DeepL.com (free version)
Interested in used CAT 305.5E2 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
