CAT 336D2
Specifications & Parameters
| Engine Model | Cat® C9ACERT™ |
| Rated Power(kW) | 200 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 1120 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 18-22 |
| Engine Displacement(L) | 8.8 |
| Emisson | China Stage Ⅱ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 620 |
| Hydraulic Tank(L) | 410 |
| Travel Speed(km/h) | 5 |
| Bucket Capacity(m³) | 1.64 |
| Bucket Digging Force(kN) | 222 |
| Boom Length(mm) | 6500 |
| Stick Length(mm) | 2800 |
| Maximum Excavation Radius(mm) | 9000 |
| Maximum Digging Height(mm) | 10730 |
| Maximum Digging Depth(mm) | 8210 |
| Specifications(mm) | 11170×3190×3700 |
| Operating Weight(kg&ton) | 35020 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2011 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
I. Outstanding Power and Fuel Efficiency
- Engine: Equipped with a Cat® C9 ACERT™ engine, rated at 208 kW (278–279 hp), meeting China Tier 2 and above emission standards.
- Fuel Economy:
- Fuel consumption is reduced by approximately 9% compared to previous models (e.g., 336D);
- The hybrid version (336D2 XE) can further save up to 25% on fuel;
- Equipped with energy-saving technologies such as automatic engine speed control, regenerative hydraulic circuit, and electronic pressure sensor, automatically reducing fuel consumption under light load or idling conditions.
II. Superior Operational Performance
- Strong Digging Force: Bucket digging force reaches 222 kN, boom digging force 169 kN, maximum traction force 300 kN;
- Wide Working Range:
- Maximum digging depth 7.39–8.21 meters;
- Maximum digging radius 10.92–11.76 meters;
- Standard bucket capacity 1.5–2.41 m³ (slight variations depending on configuration);
- Hydraulic System: Employs a dual-pump system with a maximum flow rate of 530 L/min (XE version) or 2×281 L/min (GC version), supporting high-precision control.
III. Robust Structure and High Durability
- Chassis Design: Utilizes an X-shaped box-section main frame for strong torsional resistance; track roller frames are welded by a robotic arm for high strength.
- Key Components: Boom and stick use high-tensile-strength steel, with internal partitions and protective plates to extend service life.
- Track System: Standard grease-sealed track links reduce wear, lower noise, and extend lifespan.
IV. Operational Comfort and Safety
- Cab: Spacious, pressurized, and filtered ventilation, equipped with a floating adjustable seat, effortless control handles, and a 28-language LCD monitoring screen.
- Optimized Visibility: All glass is directly bonded, frameless design, expanding field of vision.
- Safety Features: Hydraulic control levers can be locked to prevent accidental operation; ground-based stopping is possible in emergencies.
V. Convenient Maintenance and Intelligent Management
- Easy Maintenance Design: Most maintenance points are accessible from the ground, equipped with multiple side access doors for easy filter replacement, hydraulic system inspection, etc.
- Intelligent System (Cat Connect): Supports Product Link™ and VisionLink®, enabling remote monitoring of equipment location, operating hours, fuel consumption, fault codes, etc., improving management efficiency.
- Filtration System: Employs a three-stage fuel filtration system, adaptable to inferior fuels, reducing downtime.
VI. Multifunctional Expandability
- Optional attachments include:
- Hydraulic hammer, breaker, grab bucket, soil splitter, hydraulic shears, etc.
- Heavy-duty and super-heavy-duty buckets suitable for various materials (clay, gravel, granite, etc.).
Interested in used CAT 336D2 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

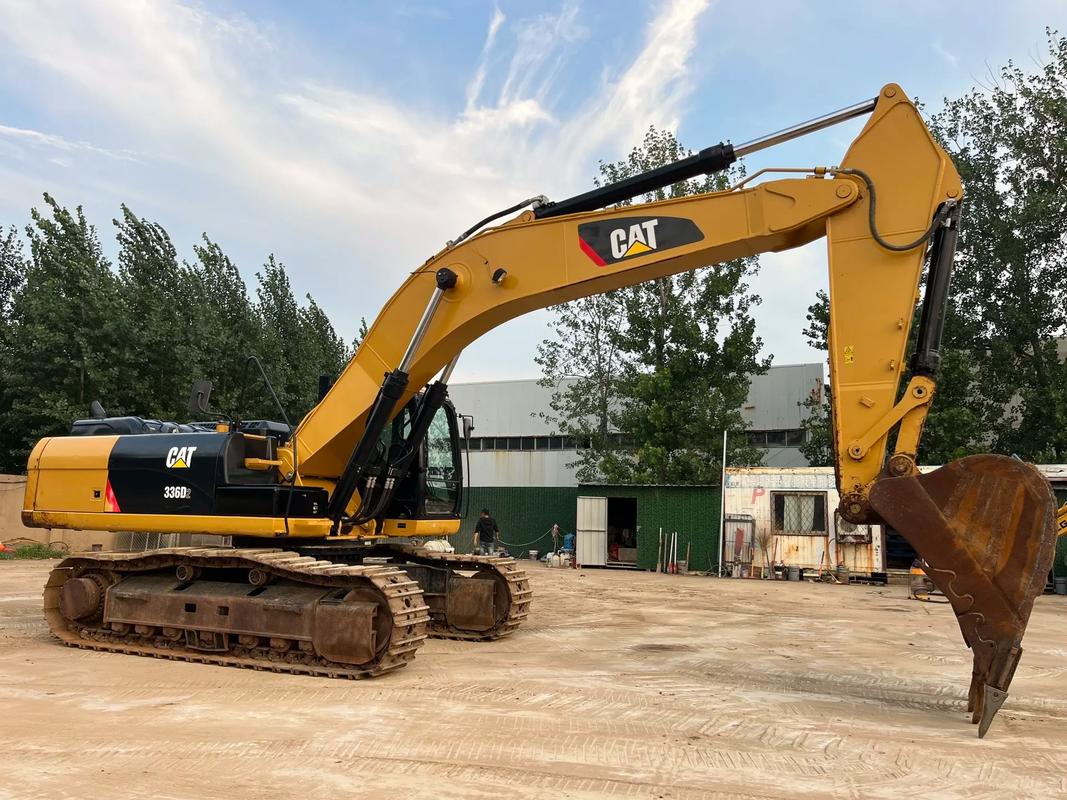

Photos
