CAT 320D2
Specifications & Parameters
| Engine Model | Cat C7.1 |
| Rated Power(kW) | 103 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 650 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 12-14 |
| Engine Displacement(L) | 7.01 |
| Emisson | China Stage Ⅱ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 410 |
| Hydraulic Tank(L) | 138 |
| Travel Speed(km/h) | 5.4 |
| Bucket Capacity(m³) | 1 |
| Bucket Digging Force(kN) | 125 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2500 |
| Maximum Excavation Radius(mm) | 9890 |
| Maximum Digging Height(mm) | 9450mm |
| Maximum Digging Depth(mm) | 6660 |
| Specifications(mm) | 9460×2800×3030 |
| Operating Weight(kg&ton) | 21690 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2016 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
The CAT 320D2 tracked excavator is an upgraded model launched by Caterpillar based on the 320D. Since its launch in 2013, it has shown outstanding performance in efficiency, durability, and operational comfort with multiple technological improvements.
-Efficient and energy-saving
-Equipped with Cat ® C7.1 direct injection engine, rated power of 112kW (some data refer to 104kW, subject to the latest parameters from the manufacturer), displacement of 7.01L, in compliance with China's Stage III and US Tier 3/EU Stage IIIA emission standards.
-Equipped with fuel-efficient mode and automatic engine speed control, the engine speed can be reduced during light load or standby, saving up to 15% in fuel consumption.
-Strong hydraulic system
-The maximum flow rate of the main pump is 404L/min, and the working pressure is 35MPa (35000kPa).
-By adopting an independent pilot system and hydraulic interactive induction technology, precise control and high response speed are achieved, improving excavation force and operational efficiency.
-High reliability and durability
-Adopting an "X" - shaped box shaped cross-section body and robot welded track support wheel frame to enhance structural strength and fatigue resistance.
-Equipped with grease lubricated track link sealing design, reducing maintenance frequency and extending service life.
-Good operational comfort
-The cabin noise is as low as 72dB (A), equipped with floating seats, full-color LCD monitoring screen (supporting 42 languages), air conditioning system, and pressurized sealed space.
-All control handles are ergonomically designed and within reach, reducing operator fatigue.
-Strong versatility and adaptability
-Supports multiple bucket specifications (such as 600mm, 700mm, 790mm track shoes), suitable for various working conditions such as excavation, loading, crushing, ditch cleaning, mining and quarrying.
-Provide multiple combinations of boom/boom (such as boom 2500mm/2900mm HD type) to flexibly meet different operational needs.
-Intelligent operation and maintenance support
-Standard Cat Product Link ™ The system supports remote device monitoring and management, facilitating fleet operation optimization.
Interested in used CAT 320D2 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

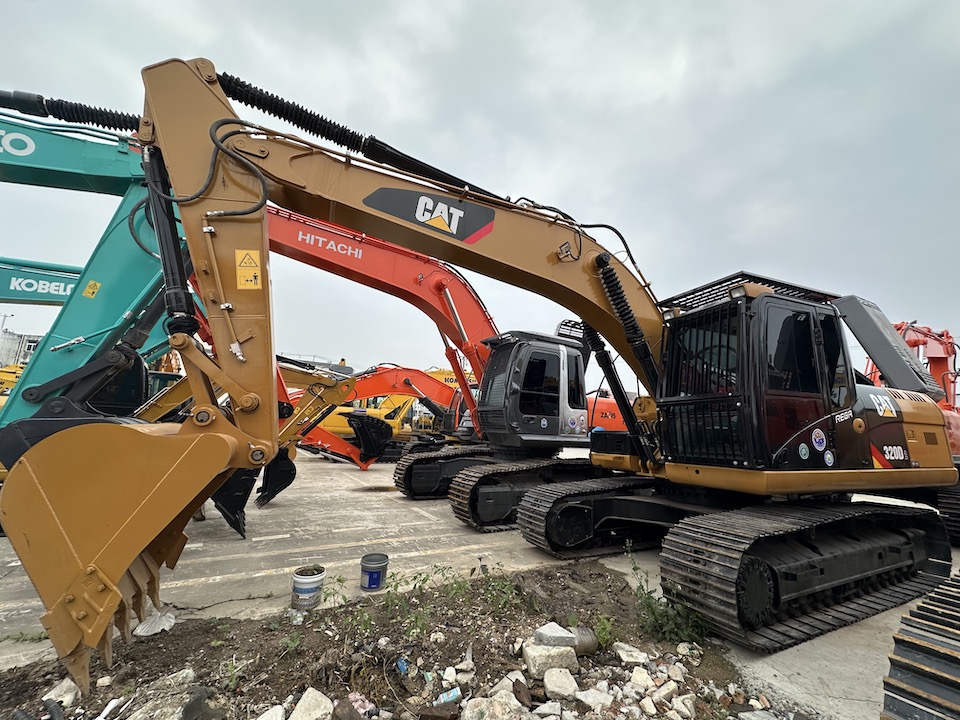

Photos
