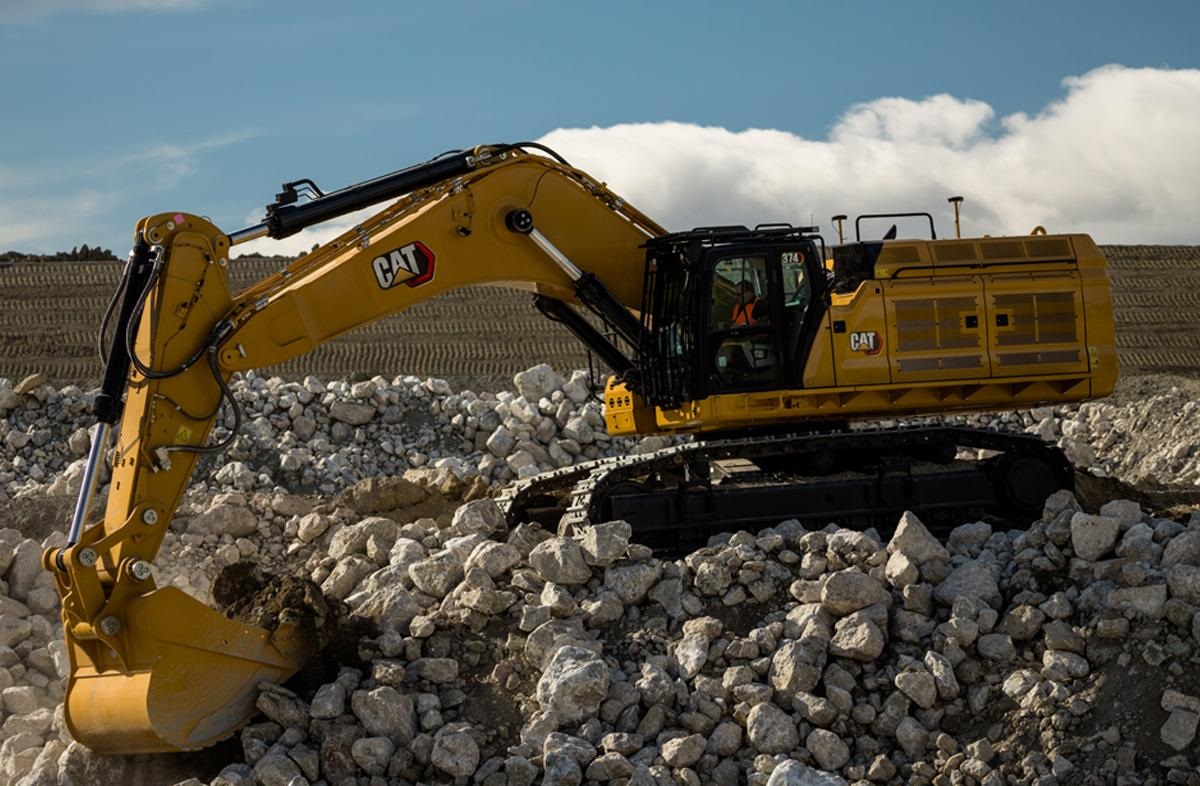

CAT 374
Specifications & Parameters
| Engine Model | Cat C15B |
| Rated Power(kW) | 366 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2240 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 30-39 |
| Engine Displacement(L) | 15.2 |
| Emisson | Stage IIIA |
| Track width(mm) | 700 |
| Fuel Tank(L) | 1140 |
| Hydraulic Tank(L) | 240 |
| Travel Speed(km/h) | 4.2 |
| Bucket Capacity(m³) | 3.6 |
| Bucket Digging Force(kN) | 372 |
| Boom Length(mm) | 7700 |
| Stick Length(mm) | 3400 |
| Maximum Excavation Radius(mm) | 13060 |
| Maximum Digging Height(mm) | 8520 |
| Maximum Digging Depth(mm) | 7660 |
| Specifications(mm) | 13650×4340×4020 |
| Operating Weight(kg&ton) | 73890 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Cat C15 Tier3 urea‑free engine with 15.2L displacement & 358 kW net power, three‑stage fuel filtration system, stable power output up to 3000 m altitude without power derating, massive low‑speed torque for open‑pit mine loading and hard‑rock ripping, well tolerant of low‑grade diesel fuel to cut total ownership cost.
74‑ton heavy‑duty extended undercarriage with grease‑sealed track links, reinforced track rollers and heavy counter‑weight delivers outstanding stability and lifting capacity, preventing sinking on soft muddy mine sites; heat‑treated heavy‑duty track components greatly extend service intervals under harsh mining conditions.
Hydro‑static swing regenerative hydraulic system with Power, Smart and ECO three working modes, 10 % higher swing torque than former generation, faster cycle times for high‑volume truck loading. Smart mode automatically matches engine‑hydraulic output to digging conditions, balancing high productivity and good fuel economy for rock excavation and overburden stripping tasks.
Mining‑grade reinforced boom & stick with thick high‑strength wear‑resistant steel, structural durability doubled versus previous model, effectively lowering structural failure risks for long‑term heavy‑load quarry and mine operations.
Factory‑installed bi‑directional high‑flow auxiliary hydraulics support heavy rock breakers, grapples and quick couplers without extra refitting for multi‑purpose mining‑site work.
FOPS‑certified fully‑pressurized deluxe sealed low‑noise cab, large touch‑screen monitor, keyless push‑button start and optional 360° surround‑view cameras reduce operator fatigue during long continuous heavy‑duty shifts.
All main service points accessible at ground‑level for fluid and filter replacement, eliminating climbing operations and significantly shortening maintenance downtime.
High‑performance 74‑ton Cat next‑gen platform with good residual value, mature global genuine spare‑parts supply, widely recognized within global second‑hand large‑excavator market.
Interested in used CAT 374 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
