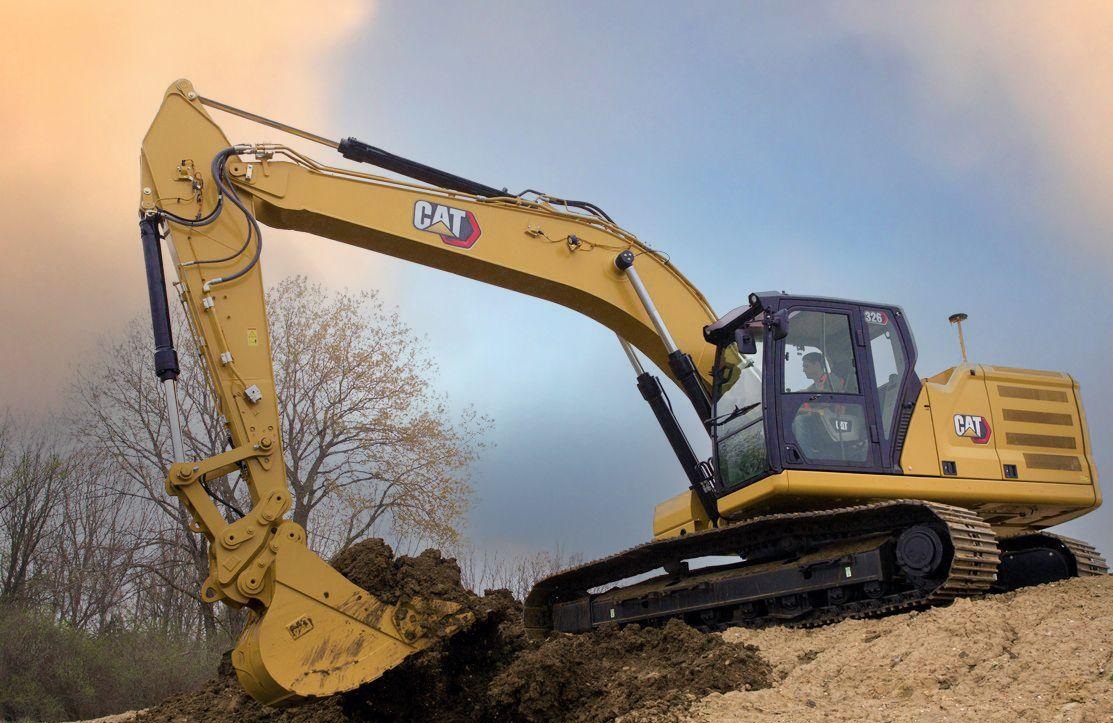

CAT 326
Specifications & Parameters
| Engine Model | CAT C9.3B |
| Rated Power(kW) | 170 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 880 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 15-18 |
| Engine Displacement(L) | 9.3 |
| Emisson | Tier 3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 450 |
| Hydraulic Tank(L) | 140 |
| Travel Speed(km/h) | 5.4 |
| Bucket Capacity(m³) | 1.7 |
| Bucket Digging Force(kN) | 192 |
| Boom Length(mm) | 5850 |
| Stick Length(mm) | 2950 |
| Maximum Excavation Radius(mm) | 10180 |
| Maximum Digging Height(mm) | 6850 |
| Maximum Digging Depth(mm) | 6820 |
| Specifications(mm) | 10150×2980×3120 |
| Operating Weight(kg&ton) | 25700 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Cat C7.1 Tier3 urea‑free engine with 7.1L displacement & 157.8 kW net power, stable power output under high‑altitude working conditions without derating, strong low‑speed torque for quarry excavation, mass earth‑moving and medium‑heavy truck‑loading assignments, good tolerance for low‑grade diesel fuel to cut total ownership cost.
25.7‑ton heavy‑duty extended wide‑gauge undercarriage with grease‑sealed track links and 6.1‑ton heavy counterweight delivers solid stability and digging force, preventing sinking on soft muddy ground; heat‑treated heavy‑duty track components extend service life under harsh construction and quarry‑site conditions.
Adaptive load‑sensing electro‑hydraulic system with Smart, Power, Eco three power modes, swing torque improved by 12% versus previous generation, automatically matches hydraulic output to real‑time working loads, ensures smooth compound movements while lowering fuel consumption, well‑suited for hard‑rock digging, municipal demolition and large‑scale infrastructure projects.
Thickened reinforced boom & stick with high‑strength wear‑resistant steel and stress‑relieved welded joints, lowers structural failure risks during long‑term medium‑heavy‑load operations and reduces unplanned downtime.
Factory‑installed bi‑directional auxiliary hydraulic circuit supports rock breakers, grapples and quick couplers without extra refitting for multi‑purpose job‑site operation.
FOPS‑certified fully‑pressurized sealed low‑noise deluxe cab, large touch‑color monitor, optional rear‑view camera ease operator fatigue during long continuous heavy‑duty shifts.
All main service checkpoints are accessible at ground‑level for fluid and filter replacement, eliminating climbing‑up operations and greatly shortening maintenance downtime.
Reliable 26‑ton Cat next‑gen medium excavator platform with good residual value, worldwide genuine spare‑parts availability, highly popular within global second‑hand heavy‑equipment market.
Interested in used CAT 326 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
