CAT 323
Specifications & Parameters
| Engine Model | CAT C7.1 ACERT |
| Rated Power(kW) | 129 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 640 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 12.5-15.5 |
| Engine Displacement(L) | 7.1 |
| Emisson | Tier 3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 345 |
| Hydraulic Tank(L) | 125 |
| Travel Speed(km/h) | 5.7 |
| Bucket Capacity(m³) | 1.4 |
| Bucket Digging Force(kN) | 158 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9910 |
| Maximum Digging Height(mm) | 6720 |
| Maximum Digging Depth(mm) | 6730 |
| Specifications(mm) | 9820×2980×3020 |
| Operating Weight(kg&ton) | 22900 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
C7.1 high-torque Tier 3 engine delivers stable low-speed power for long-hour earthmoving & light rock work with balanced fuel consumption.
Intelligent regenerative load-sensing hydraulics ensure smooth compound movements, boosting productivity while cutting fuel waste.
Reinforced thickened boom, stick, X-frame and undercarriage resist impact and abrasion to lower maintenance frequency.
Factory high-flow auxiliary hydraulic circuit supports breakers, grapples and screening buckets without extra refitting.
Pressurized fully sealed low-noise panoramic cab with shock-absorbing seat and 8-inch touchscreen eliminates blind spots and reduces operator fatigue.
All service points are ground-accessible for quick inspection, cutting maintenance downtime and long-term operating costs.
Simple Tier 3 emission setup without urea aftertreatment, great tolerance for low-grade fuel and fewer export regulatory limits.
Standard factory 2D Grade control and payload weighing system deliver precise excavation, reduce rework and raise hourly material throughput.
Interested in used CAT 323 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

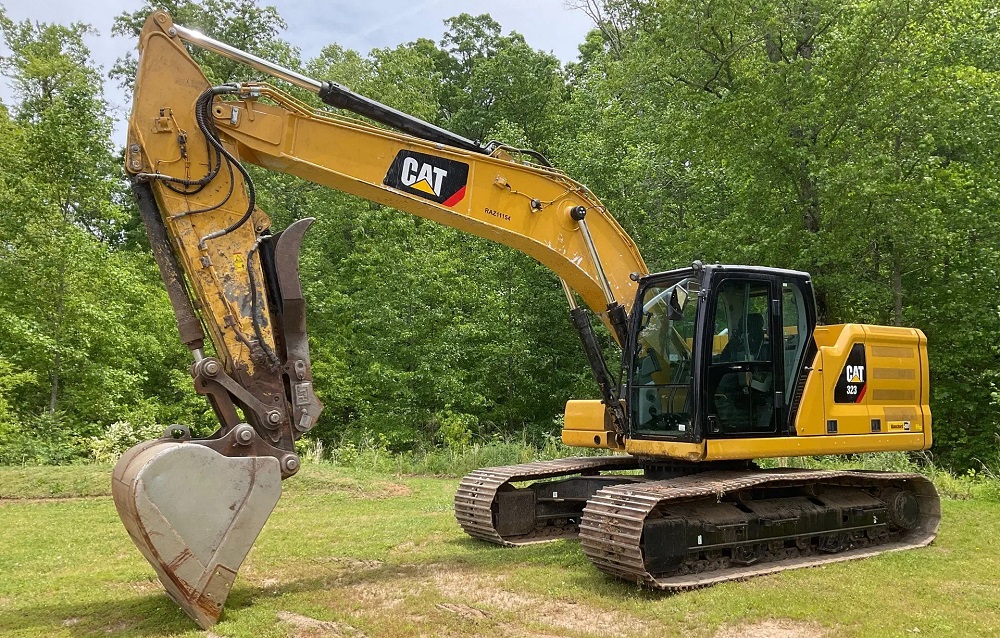

Photos
