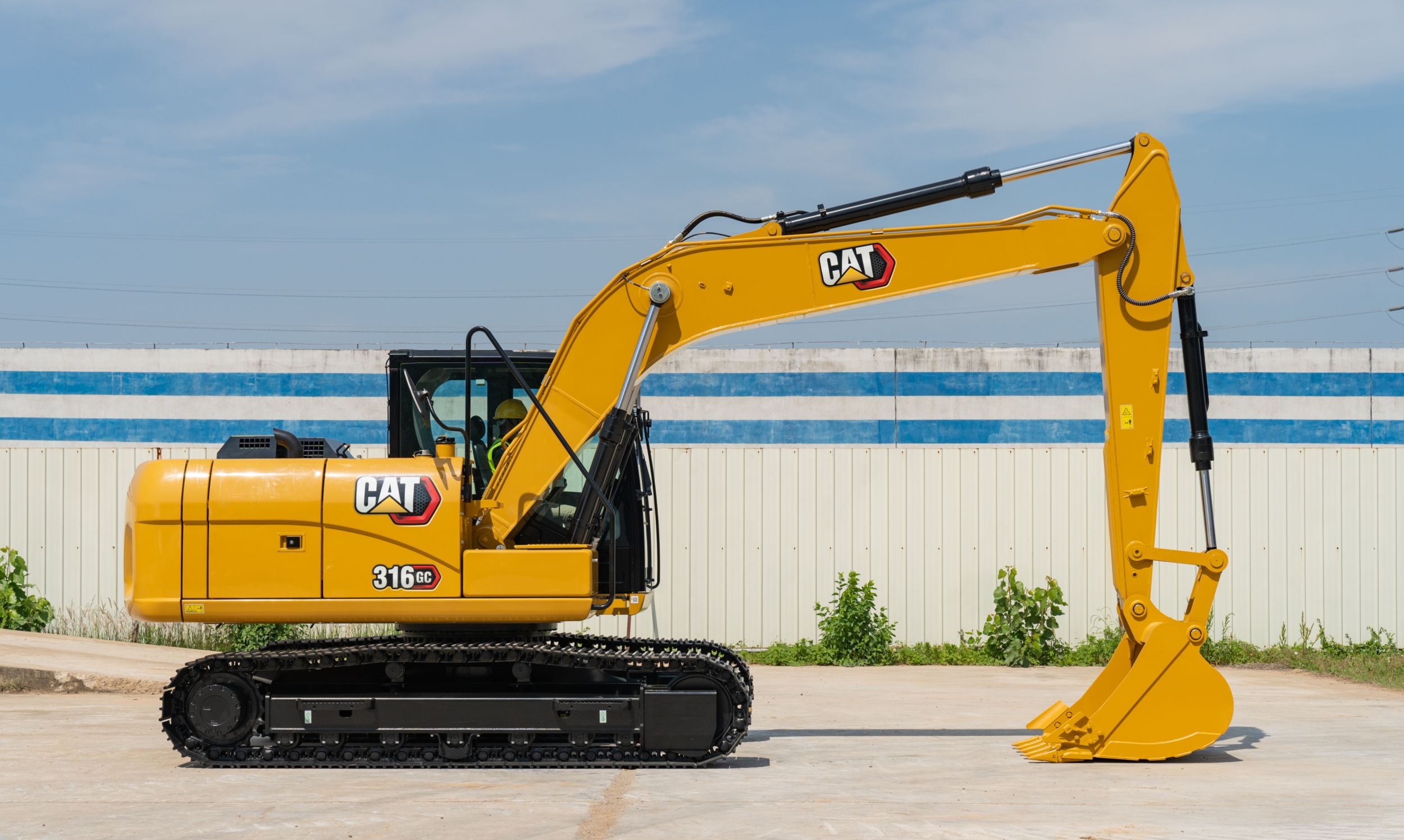

CAT 316 GC
Specifications & Parameters
| Engine Model | CAT C4.4 ACERT |
| Rated Power(kW) | 86 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 430 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 8.5-10.5 |
| Engine Displacement(L) | 4.4 |
| Emisson | Tier 3 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 220 |
| Hydraulic Tank(L) | 100 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 0.95 |
| Bucket Digging Force(kN) | 102 |
| Boom Length(mm) | 4600 |
| Stick Length(mm) | 2500 |
| Maximum Excavation Radius(mm) | 8530 |
| Maximum Digging Height(mm) | 6030 |
| Maximum Digging Depth(mm) | 5530 |
| Specifications(mm) | 7850×2590×2930 |
| Operating Weight(kg&ton) | 14600 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Cat C4.4 Tier3 urea‑free engine with 4.4L displacement & 116 kW net power, stable low‑speed torque for earthmoving, trenching and light rock breaking, compatible with low‑grade diesel to reduce total ownership cost.
17.2‑ton medium-duty extended undercarriage with grease‑sealed track links and 4.2‑ton counterweight delivers good stability on uneven construction sites; heat-treated track components extend service life under frequent urban construction cycles.
Electronic regenerative load‑sensing hydraulic system with Smart, Power, Eco three working modes, responsive and smooth compound movements, optimized fuel consumption for municipal, landscaping and small infrastructure projects.
Lightweight reinforced boom & stick with wear-resistant steel, well-balanced structural strength for daily medium-duty operation, lowering maintenance frequency.
Factory-installed auxiliary hydraulic circuit supports rock breakers, grapples and screening buckets without extra refitting for multi-purpose site work.
FOPS-certified sealed low-noise cab, 8-inch touchscreen monitor, one-touch start and Bluetooth audio, shock-absorbing suspension seat relieves operator fatigue during long shifts.
All routine service points are ground-accessible, filter and fluid inspection without climbing, shortening maintenance downtime.
Cost-effective GC model with synchronized extended service intervals, simple Tier3 emission configuration without urea aftertreatment, fewer export restrictions for global emerging markets.
Interested in used CAT 316 GC excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
