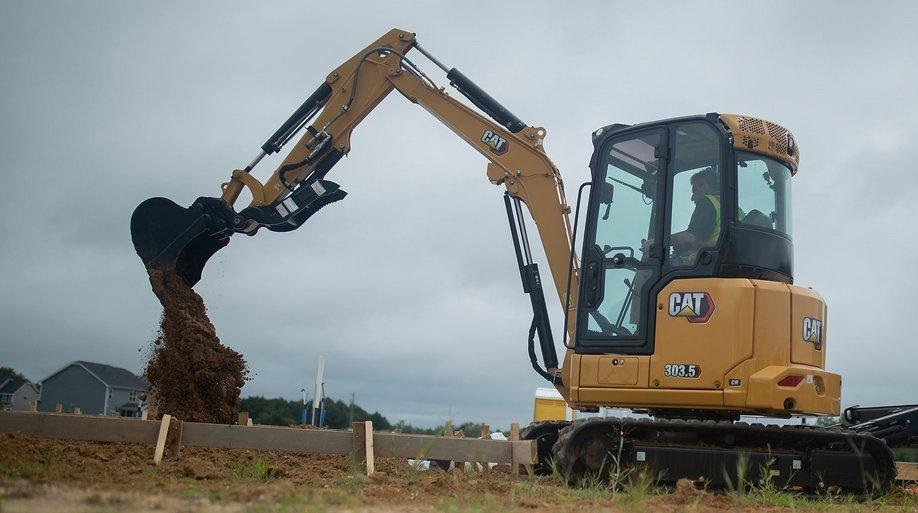

Used CAT 303.5 CR
Parameters
| Engine Model | CAT C1.7 Turbo |
| Rated Power(kW) | 17.6 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 105 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 2.8-3.8 |
| Engine Displacement(L) | 1.7 |
| Emisson | EU Stage V |
| Track width(mm) | 250 |
| Fuel Tank(L) | 38 |
| Hydraulic Tank(L) | 26 |
| Travel Speed(km/h) | 4.5 |
| Bucket Capacity(m³) | 0.12 |
| Bucket Digging Force(kN) | 24 |
| Boom Length(mm) | 2000 |
| Stick Length(mm) | 1500 |
| Maximum Excavation Radius(mm) | 4650 |
| Maximum Digging Height(mm) | 2900 |
| Maximum Digging Depth(mm) | 3110 |
| Specifications(mm) | 4500×1700×2500 |
| Operating Weight(kg&ton) | 4190 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Cat C1.7 Tier3 turbo engine without urea aftertreatment, compatible with low-grade diesel to cut daily fuel and maintenance cost for overseas markets.
Triple compact design of CR ultra-short tail, retractable tracks and swing boom enables collision-free operation in basements, narrow lanes and tight corners.
Load-sensing flow-sharing hydraulics deliver gentle, precise control, ideal for delicate landscaping and indoor demolition work.
Factory bi-directional continuous auxiliary hydraulic circuit fits breakers, augers and grapples without extra refitting.
Optional FOPS-certified fully sealed air-conditioned cab with color LCD monitor, push-button start and adjustable shock-absorbing seat for all-day comfort.
Wide side service doors with all ground-level service points, no climbing required for fluid and filter replacement.
Auto idle & auto shutdown functions reduce unnecessary fuel waste during idle periods, lowering hourly operation expense.
Dozer blade with float grading function, optional angle blade for efficient backfilling and site leveling without auxiliary machinery.
Interested in this excavator? Leave us a message through the contact form on our website or click the WhatsApp button for a faster response from our sales team. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
