CAT 303 CR
Specifications & Parameters
| Engine Model | CAT C1.1 Turbo |
| Rated Power(kW) | 17.6 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 92 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 2.5-3.3 |
| Engine Displacement(L) | 1.1 |
| Emisson | EU Stage V |
| Track width(mm) | 250 |
| Fuel Tank(L) | 32 |
| Hydraulic Tank(L) | 18 |
| Travel Speed(km/h) | 4.5 |
| Bucket Capacity(m³) | 0.1 |
| Bucket Digging Force(kN) | 21.5 |
| Boom Length(mm) | 1900 |
| Stick Length(mm) | 1100 |
| Maximum Excavation Radius(mm) | 4300 |
| Maximum Digging Height(mm) | 2750 |
| Maximum Digging Depth(mm) | 2950 |
| Specifications(mm) | 4250×1700×2450 |
| Operating Weight(kg&ton) | 3545 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Cat C1.1 turbo Tier3 engine without urea aftertreatment, 17.6 kW net power, compatible with low‑grade diesel to cut daily operating cost for landscaping, utility and residential projects.
CR compact‑radius zero‑overhang tail plus retractable width‑adjustable tracks enable collision‑free operation beside walls, inside basements and within narrow urban lanes.
Load‑sensing regenerative hydraulics deliver smooth, precise movements with fast cycle times, well‑suited for delicate trenching, indoor demolition and small‑scale site renovation.
Factory‑installed bi‑directional auxiliary hydraulic circuit supports breakers, augers, grapples and other attachments with no extra refitting required.
Optional FOPS‑certified fully‑sealed air‑conditioned cab with color LCD monitor, push‑button start and shock‑absorbing adjustable seat ensures all‑day operator comfort.
Wide side service doors, all service points accessible from ground level; no climbing needed for filter and fluid maintenance to shorten downtime.
Auto idle and auto‑shutdown functions reduce unnecessary fuel consumption during stand‑by periods, lowering hourly running expenses.
Full‑width dozer blade equipped with float grading function; optional angle blade for efficient back‑filling and site levelling without additional support machinery.
Interested in used CAT 303 CR excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

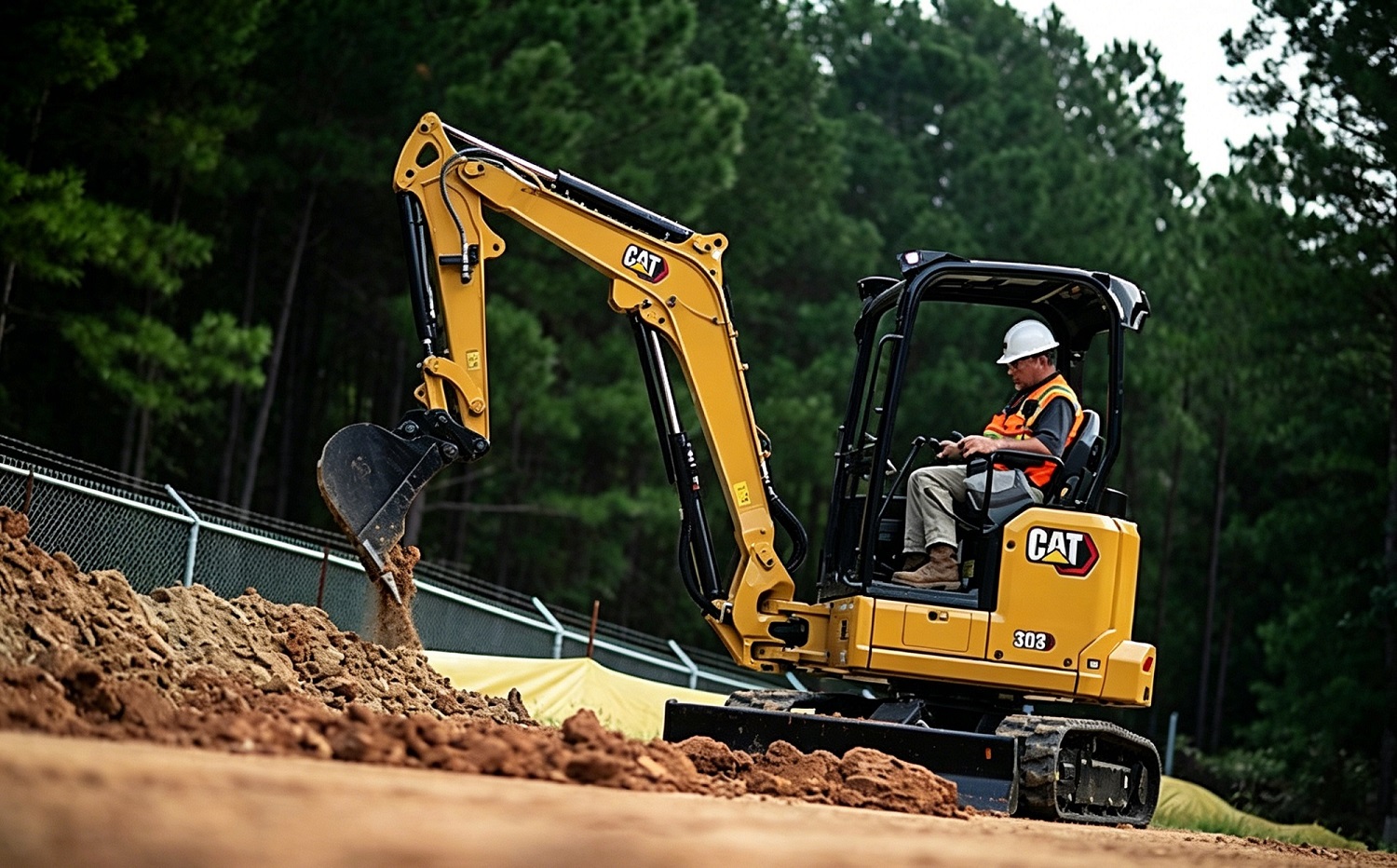

Photos
