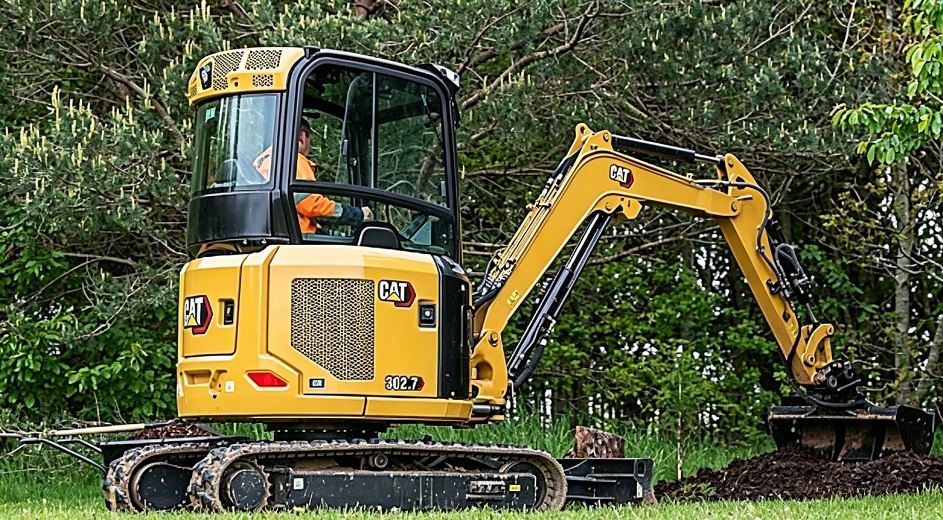

CAT 302.7 CR
Specifications & Parameters
| Engine Model | CAT C1.1 Turbo |
| Rated Power(kW) | 17.6 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 92 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 2.2-3 |
| Engine Displacement(L) | 1.1 |
| Emisson | EPA Tier 4 Final |
| Track width(mm) | 250 |
| Fuel Tank(L) | 30 |
| Hydraulic Tank(L) | 18 |
| Travel Speed(km/h) | 4.5 |
| Bucket Capacity(m³) | 0.06 |
| Bucket Digging Force(kN) | 16.5 |
| Boom Length(mm) | 1800 |
| Stick Length(mm) | 1000 |
| Maximum Excavation Radius(mm) | 4000 |
| Maximum Digging Height(mm) | 2650 |
| Maximum Digging Depth(mm) | 2710 |
| Specifications(mm) | 4050×1500×2400 |
| Operating Weight(kg&ton) | 3050 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Cat C1.1 Tier3 turbo engine without urea aftertreatment, compatible with low-grade diesel to cut overall operation cost for overseas users.
Triple compact design of CR ultra-short tail, optional retractable tracks and swing boom enables collision-free operation in basements, narrow corridors and tight corners.
Load-sensing flow-sharing hydraulics deliver gentle, precise control, perfect for delicate landscaping and indoor demolition work.
Factory dual-flow continuous auxiliary hydraulic circuit fits breakers, augers and grapples without extra refitting.
Optional FOPS-certified fully sealed air-conditioned cab with LCD monitor, push-button start and adjustable shock-absorbing seat reduces operator fatigue.
Wide side service doors with all ground-level service points, no climbing required for fluid and filter replacement.
Auto idle & auto shutdown functions cut unnecessary fuel waste during idle periods, lowering hourly operation expense.
Dozer blade with float grading function, optional angle blade for efficient backfilling and site leveling without auxiliary machinery.
New generation electronic control system supports custom operator profiles to adjust travel and dig response for both new and experienced operators.
Interested in used CAT 302.7 CR excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
