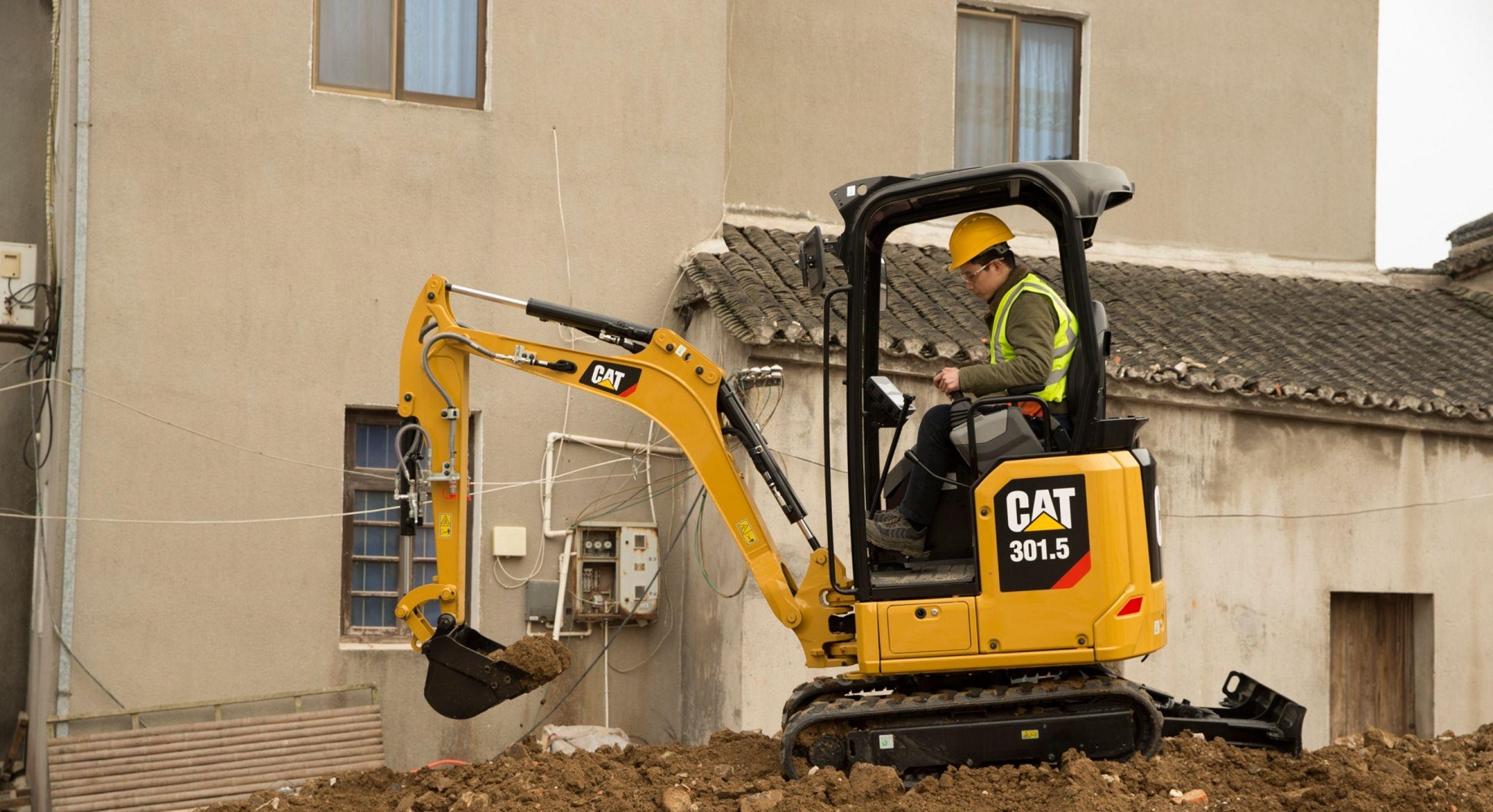

Used CAT 301.5
Parameters
| Engine Model | CAT C1.1 |
| Rated Power(kW) | 15.7 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 82.3 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 1.8-2.5 |
| Engine Displacement(L) | 1.1 |
| Emisson | EU Stage V |
| Track width(mm) | 230 |
| Fuel Tank(L) | 22 |
| Hydraulic Tank(L) | 15 |
| Travel Speed(km/h) | 4.4 |
| Bucket Capacity(m³) | 0.06 |
| Bucket Digging Force(kN) | 14.1 |
| Boom Length(mm) | 1650 |
| Stick Length(mm) | 960 |
| Maximum Excavation Radius(mm) | 3610 |
| Maximum Digging Height(mm) | 2450 |
| Maximum Digging Depth(mm) | 2540 |
| Specifications(mm) | 3550×1300×2300 |
| Operating Weight(kg&ton) | 1775 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Cat C1.1 Tier3 engine without urea aftertreatment, compatible with low-grade diesel to cut overall fuel and maintenance cost for overseas markets.
Compact design of standard short tail and swing boom enables flexible operation indoors, narrow corridors and tight corners with low collision risk.
Load-sensing flow-sharing hydraulics deliver gentle, precise control, ideal for delicate landscaping and indoor demolition work.
Factory dual-flow continuous auxiliary hydraulic circuit fits mini breakers, augers and grapples without extra refitting.
Optional FOPS-certified fully sealed air-conditioned cab with LCD monitor, one-touch joystick mode switch and adjustable shock-absorbing seat reduces operator fatigue.
Wide side service doors with all ground-level service points, no climbing required for fluid and filter replacement.
Auto idle & auto shutdown functions cut unnecessary fuel waste during idle periods, lowering hourly operation expense.
Exclusive Stick Steer single-lever travel mode with cruise control simplifies movement in confined sites and relieves foot fatigue.
Photos
