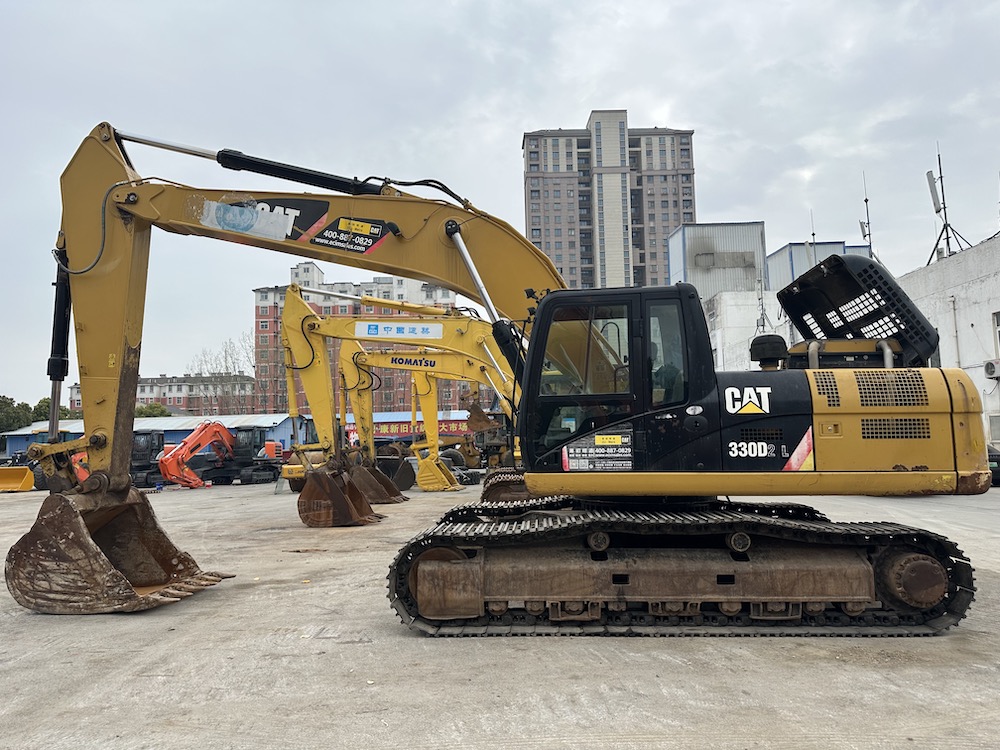

CAT 330D2 L
Specifications & Parameters
| Engine Model | C7.1 ACERT |
| Rated Power(kW) | 159 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 900 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 18-28 |
| Engine Displacement(L) | 7.01 |
| Emisson | China III/ Tier 3 / Stage IIIA |
| Track width(mm) | 800 |
| Fuel Tank(L) | 520 |
| Hydraulic Tank(L) | 257 |
| Travel Speed(km/h) | 5.3 |
| Bucket Capacity(m³) | 1.54 |
| Bucket Digging Force(kN) | 179 |
| Boom Length(mm) | 6150 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 7130 |
| Maximum Digging Height(mm) | 10040 |
| Maximum Digging Depth(mm) | 7290 |
| Specifications(mm) | 10360×3190×3330 |
| Operating Weight(kg&ton) | 30115 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Power and fuel efficiency: The engine is insensitive to low-quality fuel and has high durability. Through technologies such as synchronous speed control, improved fuel filtration system, and built-in fuel saving mode, fuel efficiency has been significantly improved and fuel consumption has been reduced.
2. Hydraulic system: Adopting a dual hydraulic pump system, the maximum flow rate of the main pump is 560 liters/minute, providing sufficient pressure to ensure excavation performance. The independent pilot pump achieves smooth and precise control over the front linkage, rotation, and driving operations.
3. Structure and durability: The X-shaped box section body has strong anti torsion ability, and the extended chassis system (L) provides excellent stability and lifting capability. The track support wheels, idler wheels, etc. are designed with sealed lubrication, and the track links are sealed with grease, effectively reducing wear, reducing noise, and extending service life.
4. Intelligence and control: Standard CAT intelligent technology functions help improve work efficiency. The cab is equipped with a high-resolution touch screen monitor, which increases the visible area by 40% and can display 42 languages and view information such as filter replacement intervals. The pilot operated joystick control device is easy to operate and can be adjusted according to personal preferences. All seats support multi-directional adjustment.
5. Comfort and safety: The advanced adhesive base can reduce cabin vibration by up to 50%. The cabin design is humanized, providing ample storage space, and the air conditioning system can choose fresh or circulating air to adapt to different climate conditions.
Interested in used CAT 330D2 L excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
