CAT 324D2L
Specifications & Parameters
| Engine Model | CAT C7 ACERT |
| Rated Power(kW) | 124 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 1050 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 14-17 |
| Engine Displacement(L) | 7.2 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 520 |
| Hydraulic Tank(L) | 155 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1 |
| Bucket Digging Force(kN) | 160 |
| Boom Length(mm) | 5900 |
| Stick Length(mm) | 2950 |
| Maximum Excavation Radius(mm) | 10,030 |
| Maximum Digging Height(mm) | 9660 |
| Maximum Digging Depth(mm) | 6,740 |
| Specifications(mm) | 10150 × 3190 × 3050 |
| Operating Weight(kg&ton) | 25,560 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Power and Fuel Efficiency
Equipped with the Cat® C7 ACERT™ engine: Features an electronically controlled unit injector system and multi-stage fuel injection technology to optimize the combustion process, reduce emissions, and enhance fuel efficiency.
Dual power mode optional:
Standard power: 124 kW
Optional high power: 140 kW
Economic Mode and Power Management: The engine speed can automatically adjust according to the load, significantly reducing fuel consumption during light-duty operations while maintaining consistent digging force and lifting capacity.
Hydraulic System and Operational Performance
The main pump achieves a maximum flow rate of 235 L/min, with the hydraulic system pressure uniformly set at 35 MPa, ensuring high responsiveness and stable output.
**Regenerative Circuit Design**: The arm and boom recover energy during the lowering/retracting process, reducing cycle time and improving efficiency.
Hydraulic Cross-Sensing System: Fully utilizes the power of two main pumps to achieve 100% engine output efficiency.
Standard Configuration Auxiliary Hydraulic Valve: Supports operation of various attachments such as hydraulic shears, grab buckets, and breakers.
Handling and Comfort
Secondary Touchscreen Control Panel: Intuitive operation with 27 language displays, adjustable angle to prevent glare.
Spacious and Quiet Cab: Equipped with air conditioning, beverage holders, document racks, and other user-friendly facilities; features adhesive vibration-damping mounting components to effectively reduce noise and vibration.
Ergonomic control handle: Supports horizontal/vertical travel adjustment to reduce operator fatigue.
Structure and Durability
Robot welding accounts for as high as 95%, with penetration depth exceeding three times that of manual welding, significantly enhancing structural strength.
X-shaped box-type underframe: High torsional stiffness, suitable for heavy-duty conditions.
The track idler frame is a high-strength, long-lasting five-sided structure formed by stamping.
Other practical features
The fuel tank capacity is 520 L, meeting the needs of prolonged operations.
Maximum digging depth 6740 mm, maximum dumping height 6700 mm, wide working range
Translate directly into English, output the translation without explanation, ensuring smooth semantics.
The hydraulic crushing pipeline is not standard, but it can be installed as an accessory
Translate directly and output the translation without explanation, ensuring smooth semantics.
Interested in used CAT 324D2L excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

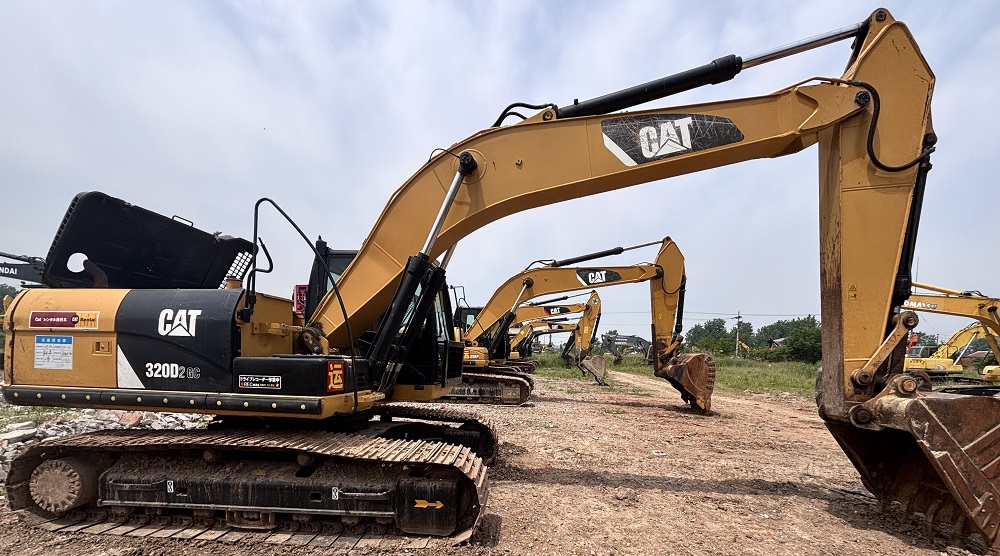

Photos
