Used CAT 340D2L
Parameters
| Engine Model | CAT C9 ACERT |
| Rated Power(kW) | 208 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1800 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 17-20 |
| Engine Displacement(L) | 8.8 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 620 |
| Hydraulic Tank(L) | 175 |
| Travel Speed(km/h) | 4.6 |
| Bucket Capacity(m³) | 1.9 |
| Bucket Digging Force(kN) | 210 |
| Boom Length(mm) | 6500 |
| Stick Length(mm) | 2800 |
| Maximum Excavation Radius(mm) | 10830 |
| Maximum Digging Height(mm) | 10330 |
| Maximum Digging Depth(mm) | 7190 |
| Specifications(mm) | 11170×3620×3630 |
| Operating Weight(kg&ton) | 41500 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Caterpillar 340D2 L is a large hydraulic excavator designed specifically for heavy engineering and mining operations, with a total working mass of approximately 38.9 tons. It has significant comprehensive advantages in harsh working conditions such as rock mining, bedrock crushing, and waste disposal. Its core characteristics and advantages can be summarized into the following five dimensions:
1、 Efficient power and hydraulic system
Equipped with Cat ® C9 ACERT ™ The engine has a rated power of 208 kilowatts and is equipped with a newly optimized hydraulic system to achieve strong power output and efficient energy conversion, reducing overall fuel consumption by about 9%. The improved filtering system is more adaptable to the fuel quality, and can guarantee the operation reliability even in the environment with poor fuel supply conditions, and support the extension of maintenance cycle.
2、 Strengthening structure and chassis design
Adopting a new high width (HDHW) structural component and chassis system, the ground clearance is significantly improved, and the upper frame is in a safer high-level layout. The wide and sturdy structural framework can effectively absorb the stress of heavy-duty operations and provide excellent overall stability, specially designed for rock fragmentation and harsh mining environments.
3、 Excellent homework performance and adaptability to working conditions
Equipped with a digging force of 210 kN bucket and a digging force of 167 to 185 kN boom, the maximum digging depth can reach 7590 millimeters, the climbing ability is 70%, and the walking speed is 4.6 kilometers per hour, meeting the requirements of high-intensity continuous operation. Precise hydraulic control technology ensures rapid response and delicate operation, widely applicable to core working conditions such as rock engineering, mining, waste disposal, and pavement bedrock fragmentation.
4、 Comfortable cab and intelligent monitoring
Equipped with a spacious cab and E-series machine monitor, the screen size is larger, the brightness is higher, and the memory has been upgraded. The equipment status and operating parameters are displayed clearly and intuitively. The ergonomic seats and humanized control layout effectively reduce operational fatigue, improve comfort and safety during long-term operations.
5、 Convenient maintenance and low operating costs
Adopting modular design, key components and systems are easy to replace, coupled with extended maintenance cycles and advanced filtering technology, significantly reducing downtime for maintenance. The user-friendly electronic diagnostic system supports rapid troubleshooting, combined with low fuel consumption, long-life structure, and high reliability design, significantly reducing the operating costs of equipment throughout its entire lifecycle.
Overall, the CAT 340D2 L has become a reliable equipment choice in the field of heavy mining and rock engineering due to its efficient power system, reinforced chassis structure, precise handling performance, and low maintenance costs.

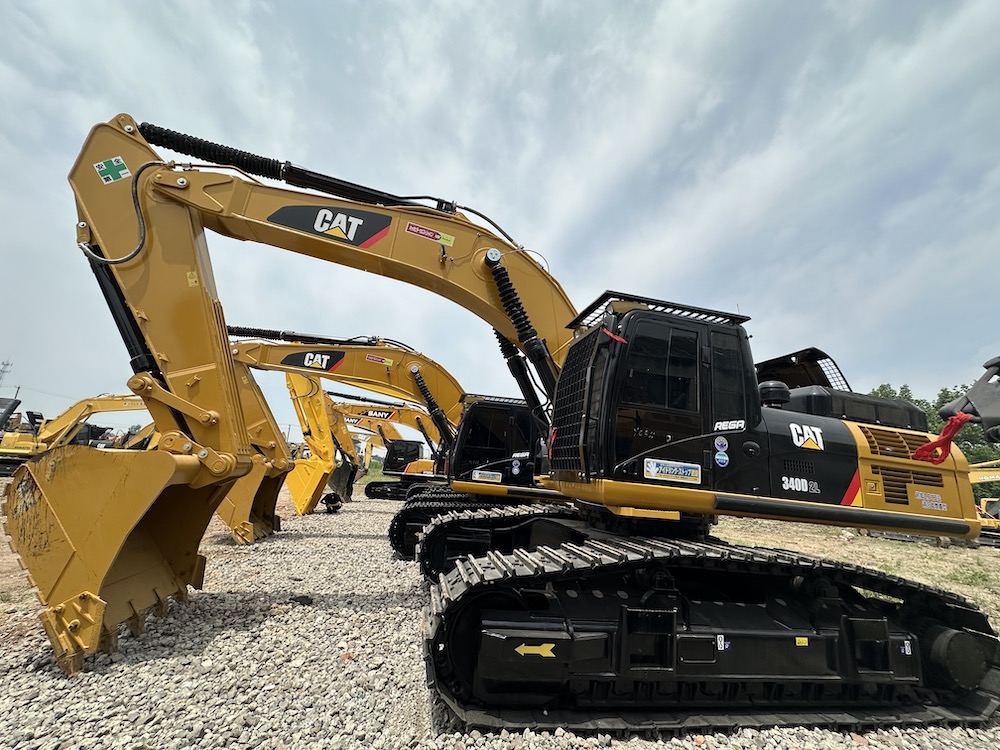

Photos
