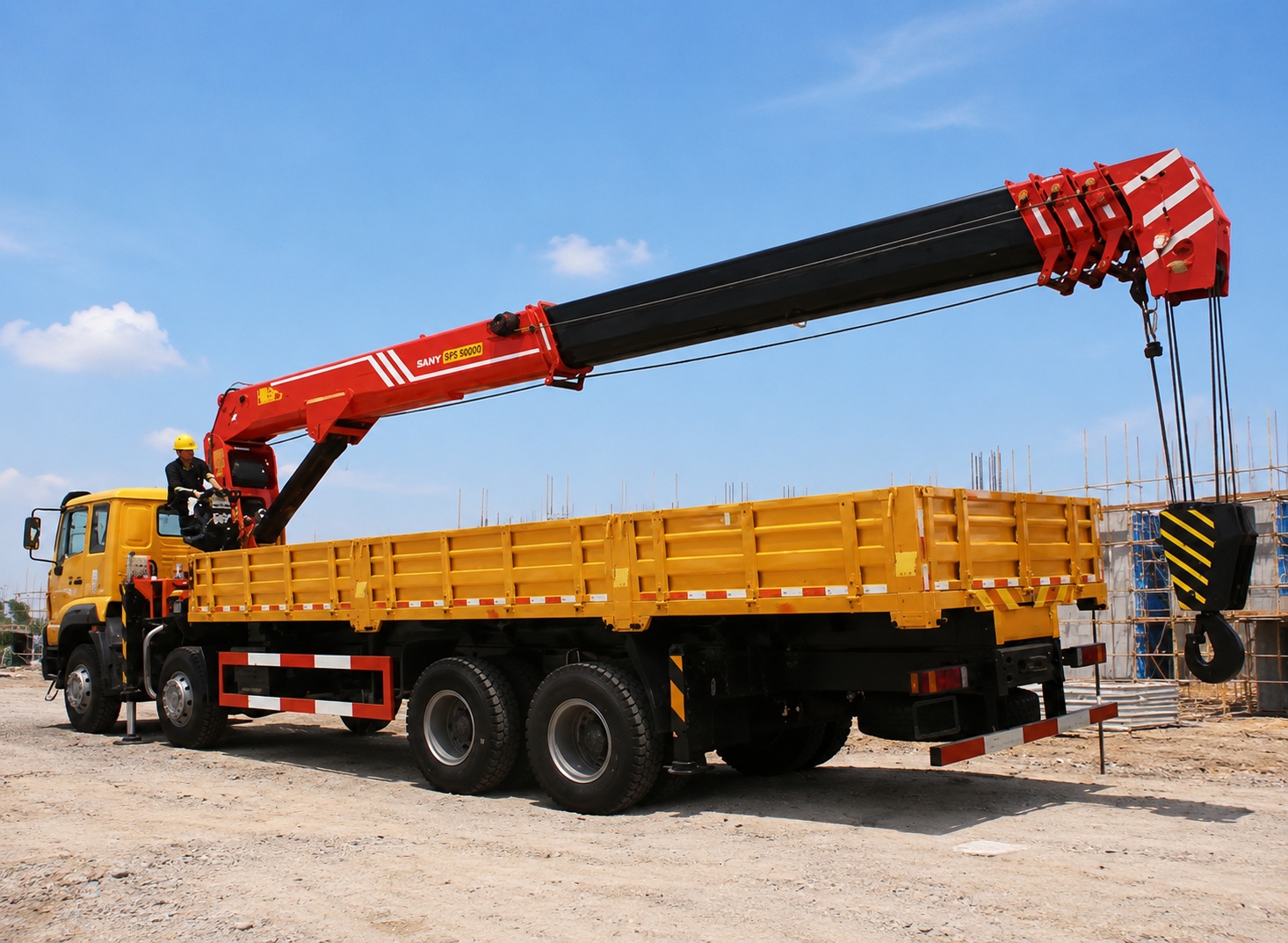

SANY SPS50000 (Stiff Boom Crane)
Loader Crane
Parameters
| Engine Model | MC11.44-60 |
| Rated Power(kW) | 327 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 2100 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 15-20 |
| Engine Displacement(L) | 10.518 |
| Emisson | Euro VI / China VI |
| Fuel Tank(L) | 400 |
| Hydraulic Tank(L) | 400 |
| Travel Speed(km/h) | 80 |
| Operating Weight(kg&ton) | 31000 |
| Specifications(mm) | 12000×2550×3800 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Boom Length | 6.2-21.6m |
| Length of the Basic Boom | 6.25 m |
| Length of the Fully Extended Boom | 21.6 m |
| Max. Lifting Capacity | 20T |
| Max. Lifting Height | 23.2m |
| Max. Outreach | 21.2m |
| Numbers of the Boom | 5 |
| Operating Mode | High seat |
| Outrigger Span | 7.25 (m) |
| Overall Weight | 6.8T |
| Range of the Boom Lifting Angle | 0~75° |
| Rated Lifting Moment | 50mt |
| Rated Lifting Weight | 20T |
| Recommended Volume for the System | 80-110 L/min |
| Slewing Angle | Endless |
Features
Ergonomic Design
Throughout the design phase SANY PALFINGER follows the general principles of ergonomics to ensure a comfortable and safe crane operation.
Integrated Electric System
Robust, reliable, and easy-to-maintain design
Network of modular components connected through standardized interfaces
Advanced Proportional Hydraulic System
Sensitive controls with accurate positioning for lifting jobs requiring high precision. Stable movement and ability to utilize multiple functions simultaneously.
High Pressure and Return Filter
All the series are equipped with high-pressure filter as standard configuration. It protects the hydraulic components of the crane and prolongs the service life of the hydraulic system
High Density Paint System
Demonstrates superior performance
Long-term UV-resistance
Attractive aesthetics
