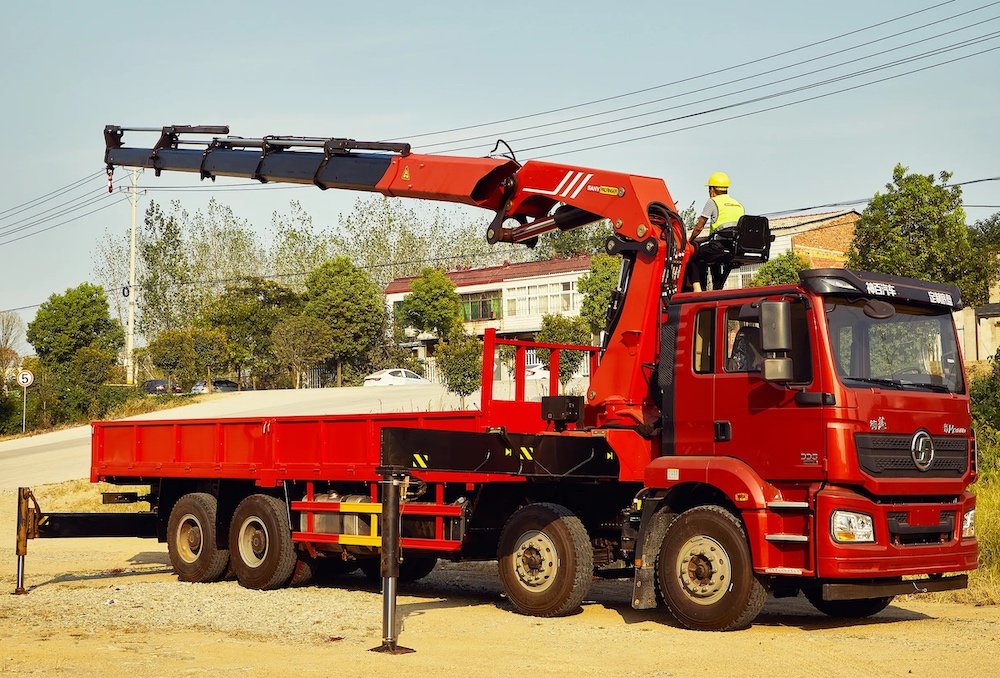

SANY SPK70002 (Knuckle Boom Crane)
Loader Crane
Parameters
| Engine Model | YCK09350-60/ WP12.350E50 |
| Rated Power(kW) | 257 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 1450 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 25-35 |
| Engine Displacement(L) | 9.41 |
| Emisson | China V |
| Fuel Tank(L) | 400 |
| Hydraulic Tank(L) | 100 |
| Travel Speed(km/h) | 90 |
| Operating Weight(kg&ton) | 32000 |
| Specifications(mm) | 12000×2550×3800 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Slewing Torque | 7.0 mt |
| Slewing Angle | endless |
| Max. Lifting Capacity | 22.8T |
| Overall Weight | 7.51T |
| Max. Hydraulic Outreach | 20.4m |
| Max. Lifting Height | 25.1m |
| Rated Lifting Moment | 63.3mt |
| Hydraulic Boom Extensions | 8 |
| Operating Pressure | 35 |
| Pump Capacity | 60-80 |
Features
Ergonomic Crane Control
1. Ergonomically arranged operating levers for all crane functions.
2. Functional design for better comfort during crane operation.
3. Straightforward service and maintenance.
High-density Paint
1. Top-quality and anti-corrosion surface paint.
2. Long-term UV-resistant coating.
3. Aesthetically pleasing and attractive color.
Load Holding Valve
1. Hold the cylinder in position.
2. Standard fittings on all cylinders.
3. Strategic positioned to avoid damage.
High-speed extension
1. Increase the extension and retraction speed of the boom system.
2. Crane works faster with return oil utilization.
3. Time-saving during crane operation.
Radio Remote Control
1. Efficient remote control of the crane.
2. Safe crane operation outside of the danger zone.
3. Easy maintenance and quick troubleshooting.
Top Seat
1. Excellent visibility of the surrounding area.
2. Foldable sun protection umbrella for hot weather.
3. Seat cover to prevent exposure to the sun.
Hydraulic Overload Safety Device
1. Prevents the crane from overloading.
2. Overload protection system with emergency cut-off function.
3. Stops all movements of the crane that increase the load.
Hose Equipment for Attachments
1. Additional hydraulic functions for attachments.
2. Simple installation with hose tray protection.
3. Diverse applications suitable for different industries.
Interested in used SANY SPK70002 (Knuckle Boom Crane) Crane? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
