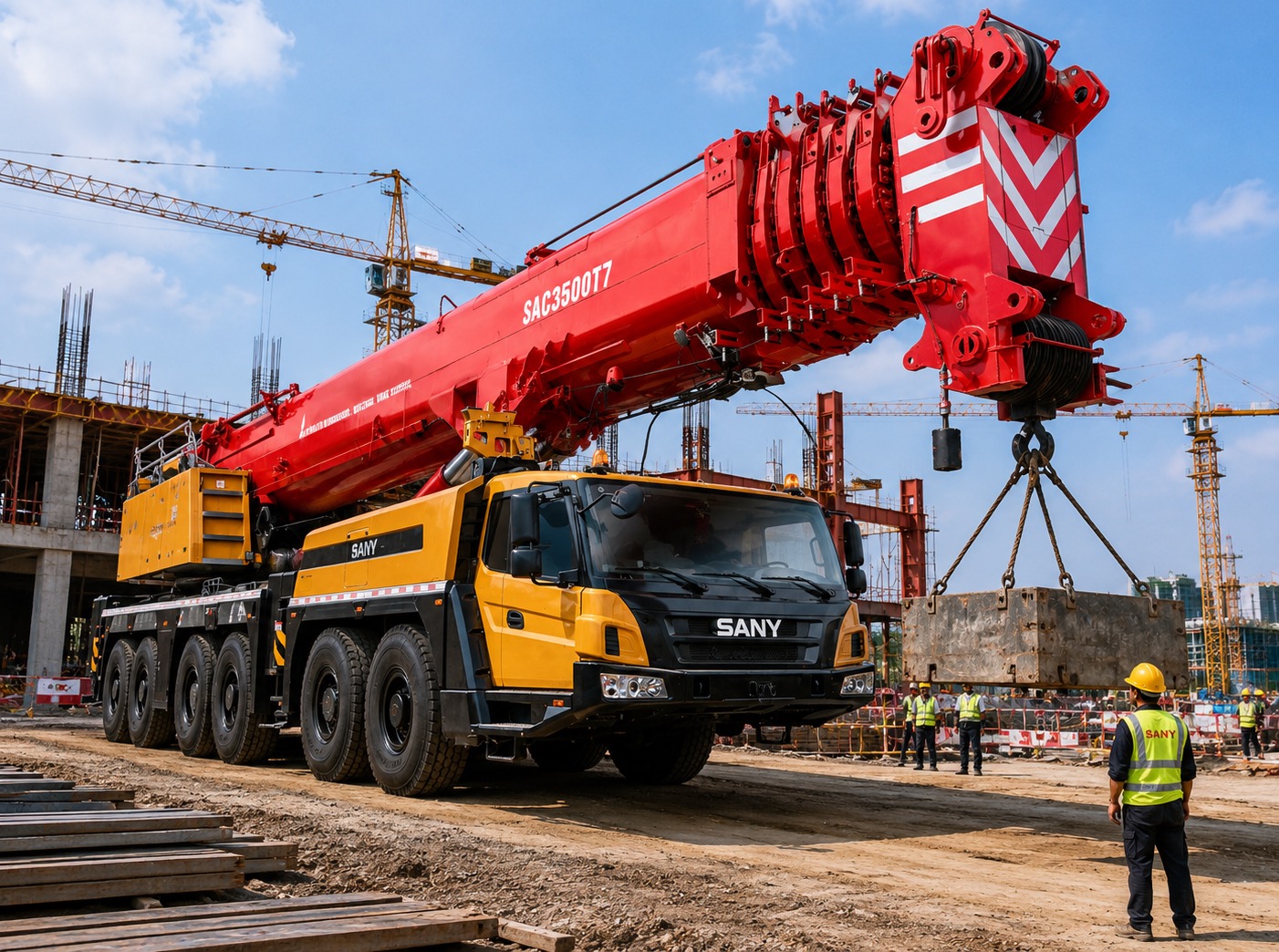

SANY SAC3500T7 (All-terrain Crane)
Parameters
| Engine Model | Benz OM457 |
| Rated Power(kW) | 205 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 1100 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 22~28 |
| Engine Displacement(L) | 11.97 |
| Emisson | EU Stage III |
| Fuel Tank(L) | 600 |
| Hydraulic Tank(L) | 380 |
| Travel Speed(km/h) | 80 |
| Operating Weight(kg&ton) | 85000 |
| Specifications(mm) | 17808×3000×4000 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Boom sections | 7 |
| Boom shape | U-shaped |
| Max. lifting moment: basic boom | 9700kN·m |
| Max. lifting moment: full-extension boom | 3880kN·m |
| Boom length: basic boom | 15.4m |
| Boom length: full-extension boom | 81m |
| Boom length: full-extension boom + fixed jib | 122m |
| Outrigger span (longitudinal × transverse) | 8.9×8.5m |
| Wheel formula | 12*8*12 |
| Fuel consumption per 100km | ≤100L |
| Max. lifting capacity | 350t |
Features
Made For Mega Projects
The larger tonnage all-terrain cranes are specially designed and made for mega projects like huge wind turbine erection. The assembly and disassembly efficiency is beyond words.
All-terrain Chassis
Compact chassis features all-wheel steering and better suspension, making them adaptable for various job sites.
Traveling with Counterweight
The cranes can travel with counterweight at job sites, requiring less transport trailers.
Better Flexibility
Variable jib configurations and counterweight combinations. We always provide the most economical solution for different lifting projects.
Efficient Operation
The single-cylinder pin system provides variable boom combinations for variable constructions.
