Used XCMG XCT100_S (Truck Crane)
Parameters
| Engine Model | WEICHAI WP12.430E50 |
| Rated Power(kW) | 316 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 2060 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 20-325 |
| Engine Displacement(L) | 11.596 |
| Emisson | Euro V |
| Fuel Tank(L) | 500 |
| Hydraulic Tank(L) | 600 |
| Travel Speed(km/h) | 80 |
| Operating Weight(kg&ton) | 48000 |
| Specifications(mm) | 14815×2760×3980 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
| Max. load capacity | 100t |
| Telescopic boom | 70m |
| Number of axles | 4 |
| Max. hoist height | 95m |
| Max.load moment | 3840 kN.m |
| Drive/Steering | 8x4x4 |
| Dead Weight in Travel State | 48000 kg |
Features
XCT100-S1 is widely used in construction fields such as energy, mineral resources, and infrastructure construction
1. Superior Lifting Performance & Wide Operation Range
Max rated lifting capacity of 100 tons, paired with a 6-section U-shaped main boom reaching up to 70 m; the maximum lifting height with a jib can reach 95 m, covering most medium-to-large infrastructure projects, factory installations, and wind power hoisting scenarios.
Its lifting performance is approximately 15% higher than industry peers in the same class, delivering outstanding advantages in long-distance and high-altitude lifting operations.
Equipped with single-cylinder pin-type telescoping technology for precise boom locking, effectively preventing boom damage caused by misoperation and significantly enhancing safety.
2. Robust Powertrain & High Mobility
Powered by the WEICHAI WP12.430E50 engine (316 kW / 430 HP, Euro V emission standard), offering strong low-end torque output, abundant power, and excellent fuel efficiency.
Maximum travel speed reaches 80 km/h, with a gradeability of 45%, ensuring excellent passability on complex terrains and meeting the demand for fast transfers between construction sites.
Built on a 4-axle heavy-duty chassis with an 8×4×4 drive/steering configuration, ensuring high stability during heavy-load transfers and adapting to road conditions in various regions worldwide.
3. Comprehensive Safety & Intelligent Control
Standard equipped with a load moment limiter, overload alarm, hydraulic counterbalance valves, and other multi-layer safety devices. The real-time working condition monitoring system automatically plans lifting paths to reduce operational risks.
Full-proportional hydraulic control system with a low minimum stable speed for heavy-load hoisting, delivering excellent fine control and high positioning accuracy, making it easy for new operators to master.
High-strength frame + double-stage H-type outrigger structure provides a large support span, ensuring high operational stability and significantly reducing the risk of tipping.
4. Eco-Friendly Design & Easy Maintenance
Optimized powertrain matching reduces fuel consumption by about 10% compared to similar models, meeting Euro V emission standards and complying with environmental regulations in overseas markets.
Key components adopt a modular design with a highly integrated hydraulic system and excellent heat dissipation, enabling long-term continuous operation even in high-temperature environments and minimizing downtime for maintenance.
5. Versatile Applications & High Resale Value
Widely used in energy construction, mining projects, infrastructure development, and large equipment installation, offering excellent adaptability to various working conditions and high liquidity in the used equipment market.
Supported by XCMG’s global after-sales network, with sufficient spare parts supply and timely technical support and maintenance services for overseas users.

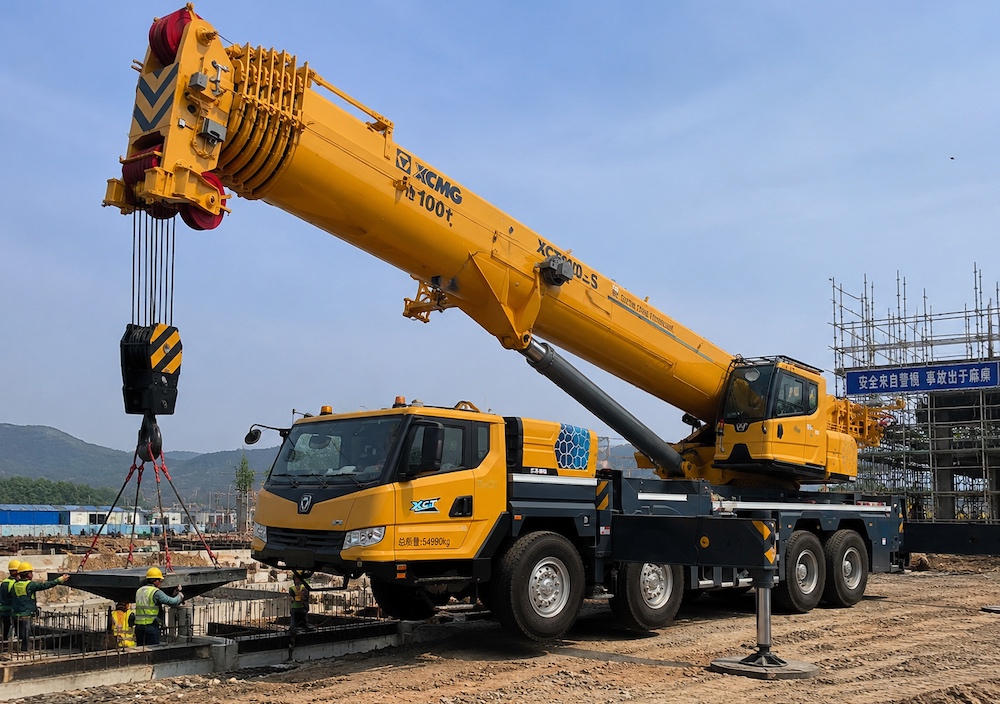

Photos
