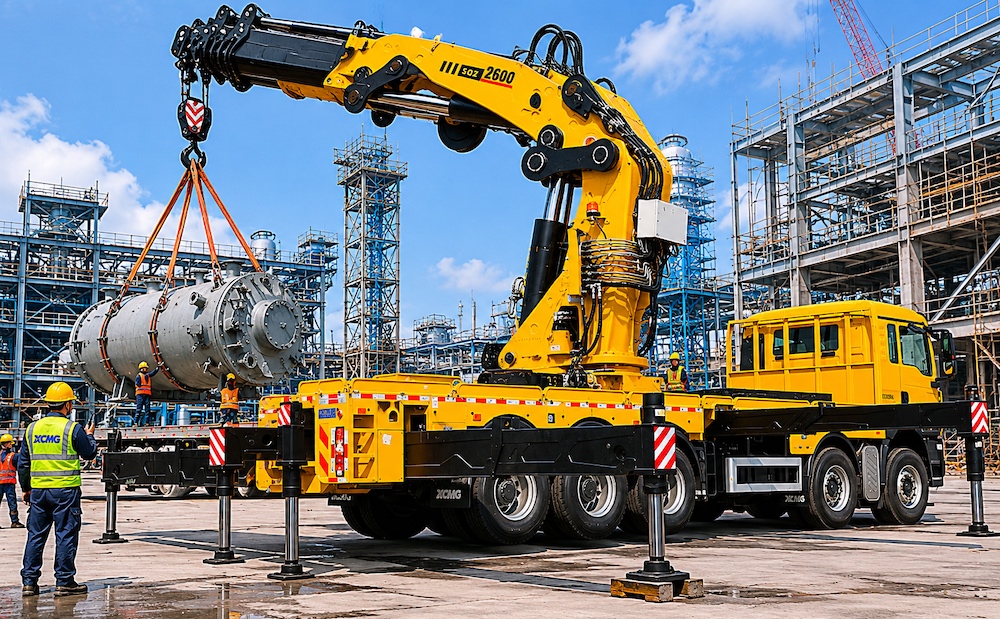

XCMG SQZ2600 (Truck Mounted Crane)
Parameters
| Engine Model | WEICHAI MC11.44‑60 |
| Rated Power(kW) | 324 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 2100 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 20 |
| Engine Displacement(L) | 10.518 |
| Emisson | China VI / Euro 6 |
| Fuel Tank(L) | 500 |
| Hydraulic Tank(L) | 500 |
| Travel Speed(km/h) | 85 |
| Operating Weight(kg&ton) | 55000 |
| Specifications(mm) | 12000×2550×4000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Max. Lifting Moment | 260 t·m |
| Max. Lifting Capacity | 65,200 kg |
| Max. Working Radius | 19.0 m |
| Max. Lifting Height | 22.3 m |
| Boom Type | Knuckle Boom Crane |
| Number of Boom Sections | 8 Sections |
| Luffing Angle Range | 0°–75° |
| Slewing Angle | Slewing Angle |
| Outrigger Span | 8,375 mm |
| Chassis Model | ZZ5537V31BGF1 |
| Control Mode | Manual / Remote Control (Optional) |
Features
The fully folded structure can provide a larger space for carrying goods and provide more convenience for users. Boom: eight-section telescopic arm, dodecagon section, strong anti-boast and anti-torsion ability; The working range is large, the working condition is more adaptable, can reduce the number of moving and improve the working efficiency: the telescopic cylinder increases the buffer design, ensuring the smooth and smooth expansion, convenient and accurate operation. Rotary mechanism: double large torque reducer, strong rotary power, good braking effect, to ensure more stable rotation, safer operation. Unloading structure: Integrated square box frame design, with a strong all-round lifting capacity and carrying capacity. Hydraulic system: proportional control, with good micromobility and linkage, convenient equipment positioning and installation; The extension adopts differential system, which can be switched at high and low speed. Xugong special wide temperature hydraulic oil (-23 'C~88°C) can be used in winter and summer. Control system: torque limit system is configured to make vehicle operation safer; Upper and lower integrated controller, equipped with display screen, ignition and other capabilities, users more comfortable and convenient operation.
Interested in used XCMG SQZ2600 (Truck Mounted Crane) Crane? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
