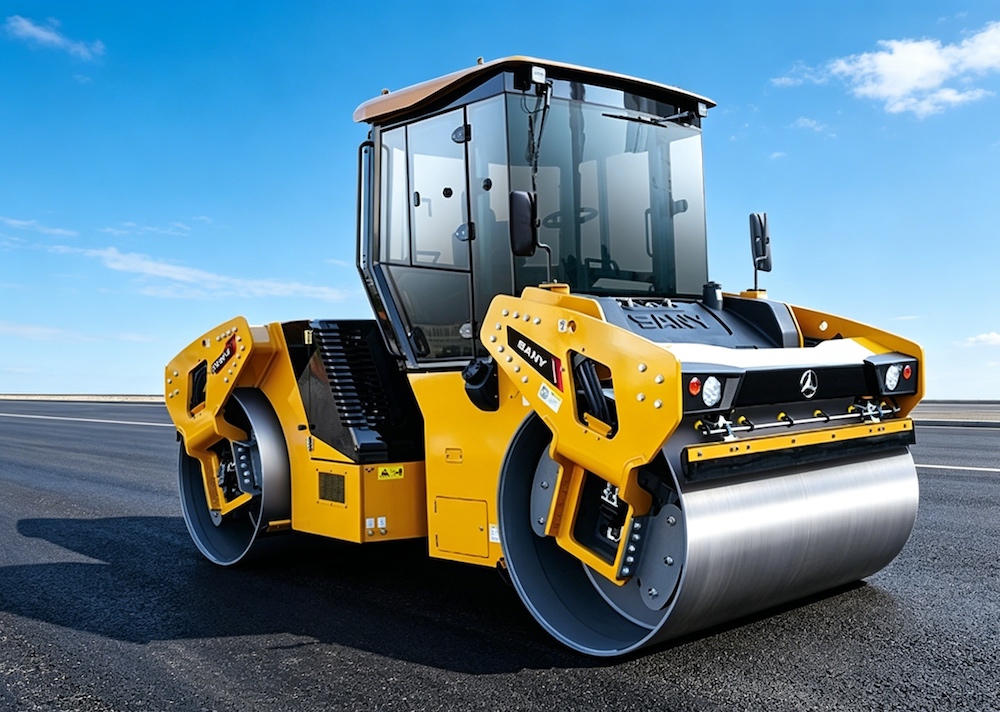

SANY STR110C-10

Tandem Drum Roller

Request a Quote

Parameters

Specifications & Parameters

Engine Model	CUMMINS QSB4.5-C160-30
Rated Power(kW)	119
Engine Revolutions(rpm)	2200
Maximum Torque(N·m)	624
Inject Type	Electronic Injection
Fuel consumption(L/h)	9-11
Engine Displacement(L)	4.5
Emisson	Euro III / China III
Fuel Tank(L)	230
Hydraulic Tank(L)	100
Travel Speed(km/h)	12
Operating Weight(kg&ton)	11500
Specifications(mm)	5040×2110×3100
Size Class	Medium
Power Type	Diesel
Walking Mode	Wheel
Country of Origin	China
Year of Production	2020
Condition	Used
Working Hours(h)	2000/5000/7000
Price($)	Get the Latest Price from sales via WhatsApp

Weight and Load

Operating Weight	11500kg
Weight at Drum	5750kg
Weight at Rear Axle	5750kg

Compaction Mechanism

Centrifugal Force	140/94kN
Drum Width	1900mm
Nominal Amplitude	0.75 / 0.3mm
Vibration Frequency	50 / 61Hz

Maneuver Ability

Theoretical Gradeability Vibratory	30%
Travel Speed	0~12 / 0~8km/h



Features

Operator Comfort & Safety Features
Cab mounted on three stage vibration damping mounts
Cab climate control
Specially designed parking brake system
Reliable Oil-spraying System
800L plastic lined water tank provides water for up to 5.7 continuous hours of work.
Optimized spray amount prevents asphalt from cooling or sticking to drums.
A back-up spray pump for greater reliability.
Drum Vibration Technology
The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
Drum evenness and smoothness meet stringent highway surface work requirements.
Road surface clearance height at the edge can be up to 825mm.
Reliable & Efficient Power
Sufficient power to operate on slopes
Three-stage fuel filter system
Wide opening engine cover provides easy access for maintenance.
Efficient Control System
The operating controls can swing up to 90 degrees to the right or left to allow the operator a clear view when working at the road edges.
The speed and direction control joystick are integrated for greater control.
Advanced Hydraulic System
The closed-loop hydraulic system has three filters for greater reliability.
