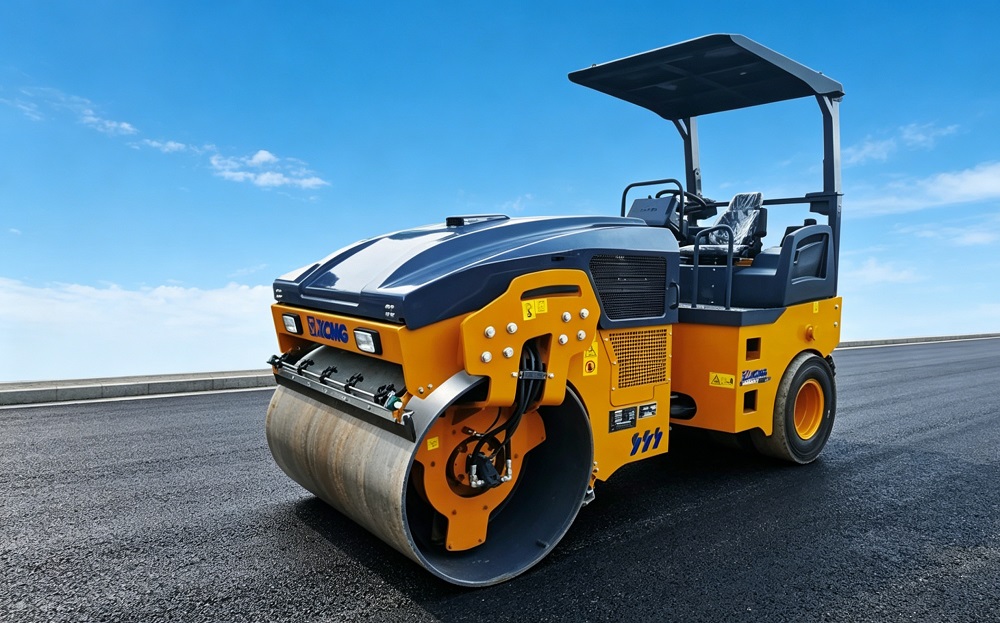

Used XCMG XMR603
Double Drum Vibratory Roller
Parameters
| Engine Model | Quanchai 4B5-80C31 |
| Rated Power(kW) | 59 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 220 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 4-6 |
| Engine Displacement(L) | 2.54 |
| Emisson | EU Stage Ⅲ |
| Fuel Tank(L) | 120 |
| Hydraulic Tank(L) | 60 |
| Travel Speed(km/h) | 11 |
| Operating Weight(kg&ton) | 6000 |
| Specifications(mm) | 3595×1675×2980 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
| Static linear load(N/cm) | 174/213 |
| Vibration frequency(Hz) | 55/48 |
| Excitation force(kN) | 70/45 |
| Drum width(mm) | 1520 |
| Theoretical gradeability(%) | 37 |
Features
XMR603 vibratory roller is specially designed formunicipal roads and medium engineering custom-ers.The compact machine structure and high flexi-bility makes it the ideal machinery for municipalmaintenance,asphalt wearing course constructionand building works of highway management andmaintenance;Its features include all-wheel drive,two speeds, double amplitude, double frequency,interval sprinkling and automatic vibration.
Compact and agile design: The compact body features a small turning radius, making it suitable for operations in narrow spaces such as municipal roads, residential areas, sidewalks, and curbs, with excellent edge compaction performance.
High compaction efficiency: Dual-frequency and dual-amplitude vibration, high-frequency suitable for asphalt surface layers, ensuring uniform compaction and excellent flatness; adjustable vibration, independent vibration of front and rear wheels, adaptable to different working conditions.
Reliable power and fuel efficiency: Equipped with a renowned brand engine, it delivers ample power and economical fuel consumption, suitable for complex construction sites and uphill scenarios.
Full hydraulic drive control: Full hydraulic dual-wheel drive, stepless transmission, articulated steering with light weight, front and rear wheel tracks aligned, ensuring stable operation and safe driving.
Comprehensive safety configuration: Three-level braking (mid / emergency / parking) with short braking distance and high safety; mid-position handle start protection to prevent misoperation; standard rollover protection frame.
Driving Comfort: Three-stage shock absorption design reduces vibration and noise; adjustable seats and unobstructed views help prevent fatigue during prolonged operation.
Easy maintenance: The front-mounted engine and large-angle hood provide centralized and easily accessible maintenance points; durable core components ensure low maintenance costs and minimal downtime.
Wide Working Condition Adaptability: Suitable for asphalt, cement surface and curb compaction, as well as sand and gravel, base layer, parking lots, and road maintenance, offering versatile multi-functionality.
