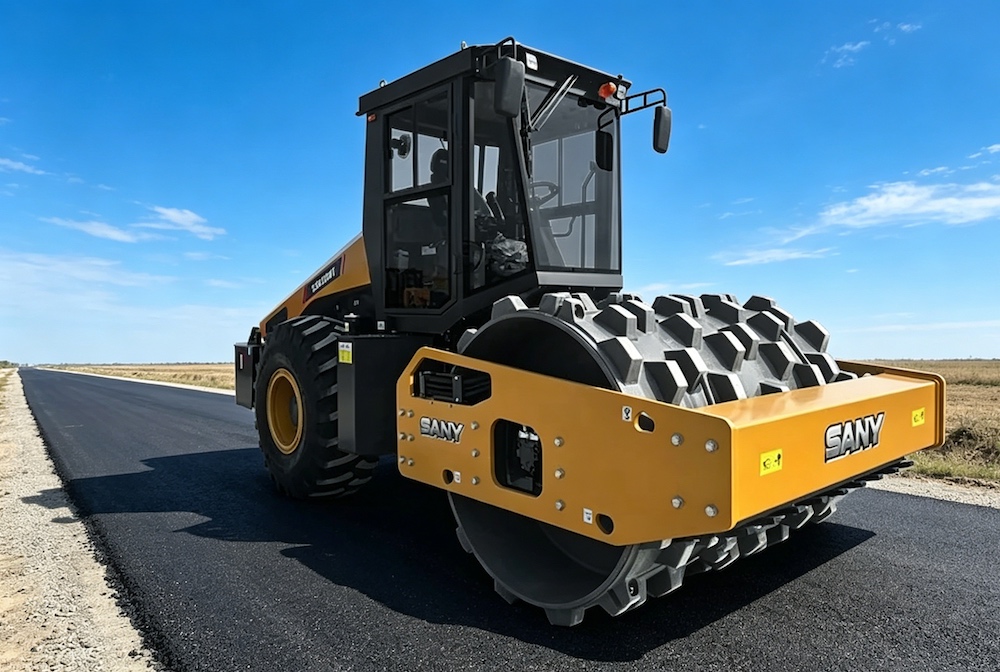

SANY SSR120HT
Single Drum Roller
Parameters
| Engine Model | CUMMINS QSB4.5 |
| Rated Power(kW) | 119 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 624 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 10-12 |
| Engine Displacement(L) | 4.5 |
| Emisson | Tier 4 Final |
| Fuel Tank(L) | 200 |
| Hydraulic Tank(L) | 120 |
| Travel Speed(km/h) | 10 |
| Operating Weight(kg&ton) | 12000 |
| Specifications(mm) | 5875×2240×3023 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Centrifugal Force | 280/178kN |
| Drum Width | 2130mm |
| Nominal Amplitude | 1.8/0.9mm |
| Vibration Frequency | 32/36Hz |
| Theoretical Gradeability Vibratory | 55/60% |
| Travel Speed | 0~9km/h |
Features
High Efficiency
10% greater excitation force than other products in the same category results in 16.7% greater production.
Extended Life Time
The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
The engine air filter is raised and the air is filtered twice to protect the engine.
The hydraulic system contains three-stage filtration.
Operator Comfort
The cab is mounted on the vibration-damping mount.
Cab temperature control is available.
Operator control forces have been reduced.
Safety Features
Rounded bumpers at the front and rear
Large rear glass and sloped hood for greater visibility
