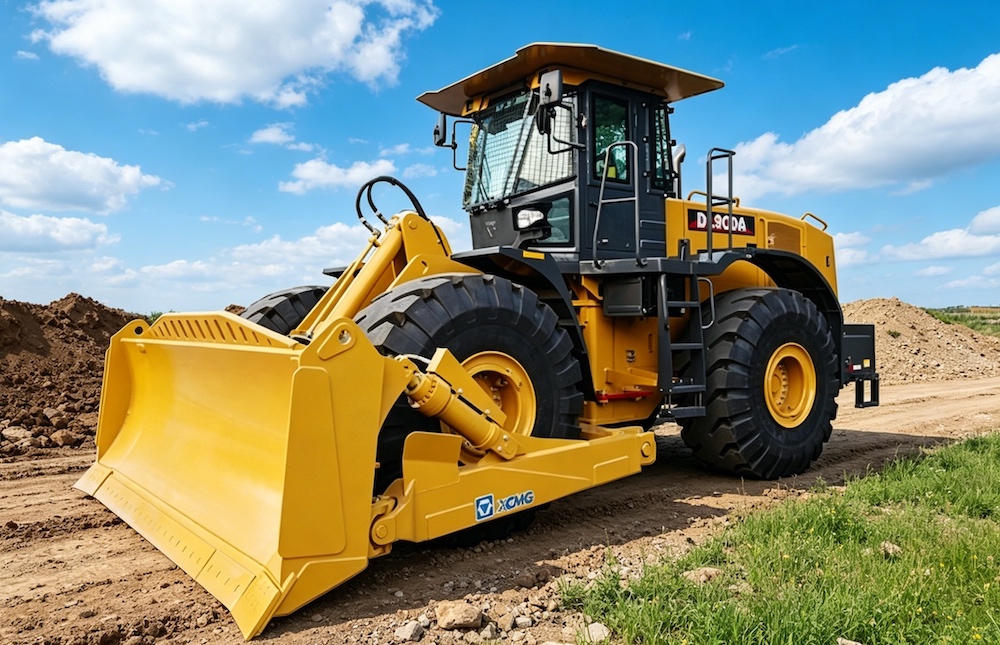

Used XCMG DL350 Wheel Dozer
Wheel Dozer
Parameters
| Engine Model | Cummins X12 |
| Rated Power(kW) | 277 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 1800 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 25-30 |
| Engine Displacement(L) | 11.9 |
| Emisson | Euro IV / China IV |
| Fuel Tank(L) | 500 |
| Hydraulic Tank(L) | 300 |
| Travel Speed(km/h) | 11.5 |
| Operating Weight(kg&ton) | 29500 |
| Specifications(mm) | 8350×4345×3770 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2025 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
| Traction force(kn) | 260 |
| Blade Capacity(m³) | 6.88 |
| Blade Width(mm) | 4434 |
| Ground pressure(kpa) | 110 |
Features
1、 Power and transmission: reliable and efficient, suitable for heavy loads
Equipped with an imported electronic control engine, it has abundant power and sufficient torque reserve, meets high emission standards, and balances energy conservation and environmental protection.
Adopting high-end fully hydraulic wet drive axle, maintenance free, fast response, smooth braking, front axle with differential lock, strong off-road capability.
Enhanced transmission components, resistant to torsion and wear, stable transmission, and less prone to failure during long-term heavy-duty operations.
Intelligent independent heat dissipation system, easy to block in high dust environment, stable heat dissipation, extending the life of core components XCMG.
2、 Structure and working device: sturdy and durable, flexible in operation
High strength box frame, long wheelbase heavy-duty design, optimized by finite element method, resistant to impact and torsion, suitable for harsh working conditions such as mines/ports in XCMG.
The new front frame with stabilizer simplifies the structure while improving operational stability, optimizes the shovel hinge point, and has strong lifting, digging, and tilting capabilities.
High performance SU bulldozer combines the advantages of straight shovel and U-shovel, with high bulldozing/flipping efficiency, full loading, and low fuel consumption.
Specialized continuous pattern tires with long wear resistance and strong climbing/stacking ability.
3、 Hydraulic and control: energy-saving, precise, easy and effortless
The load sensing variable hydraulic system+dual pump merging technology provides on-demand oil supply, low energy consumption, high efficiency, and reduces heating and wear for XCMG.
Electric control handle operation, lightweight and sensitive, short stroke, with push shovel floating function, reducing operation intensity. XCMG.
Electronic monitoring system+sound and light alarm, real-time warning of faults, ensuring the safety of XCMG operations.
4、 Cabin and Safety: Comfortable and Safe, Wide Field of View
FOPS&ROPS protective cab, anti falling objects, anti rolling, micro pressurized seal, low noise, good dust prevention XCMG.
Large space layout, unobstructed view, combined with reverse camera, small blind spots during operation.
5、 Maintenance and adaptation: easy to maintain, wide range of scenarios
Centralized ground maintenance points are easily accessible for oil filling, filter replacement, and lubrication points, ensuring efficient and safe daily maintenance.
The whole machine is suitable for scenarios such as ports, large mines, yard leveling, and heavy-duty transportation, replacing imported equipment and reducing operation and maintenance costs.
