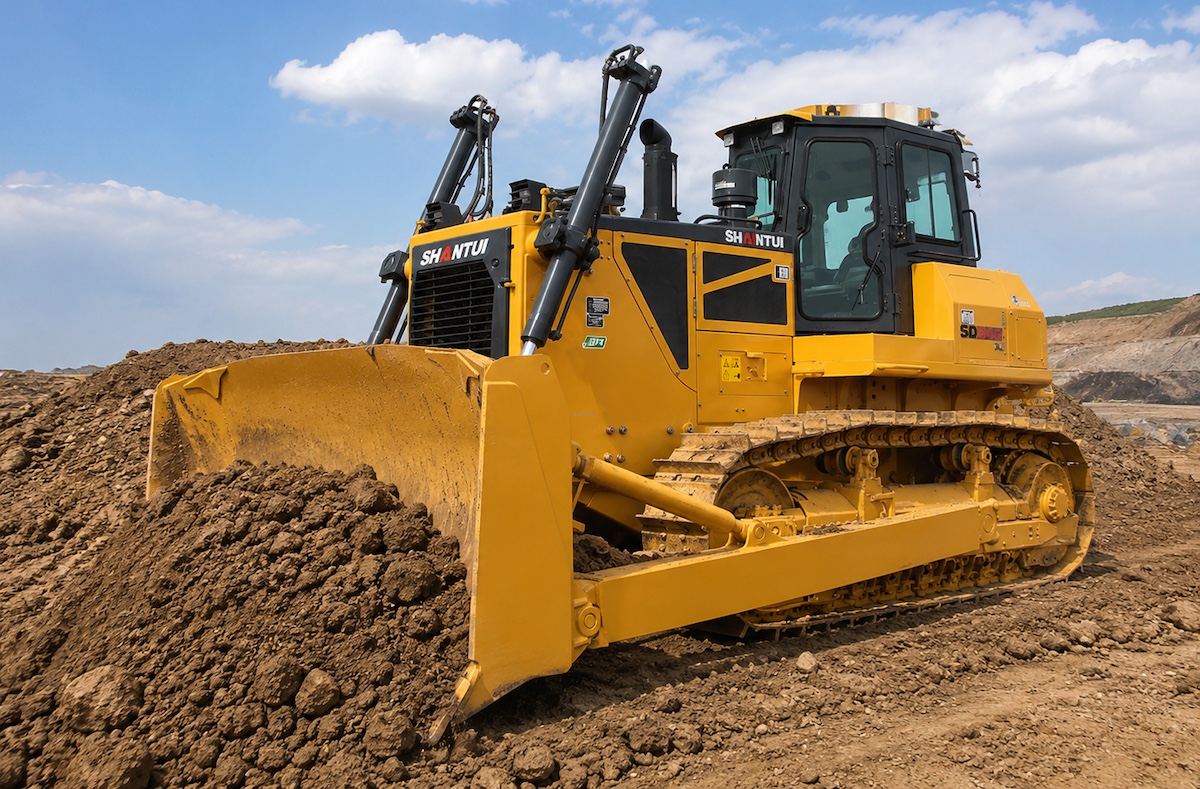

Shantui SD34-G
Parameters
| Engine Model | WEICHAI WP13 |
| Rated Power(kW) | 286 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 2300 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 65 |
| Engine Displacement(L) | 12.54 |
| Emisson | China Stage IV / EU Stage V Equivalent |
| Fuel Tank(L) | 620 |
| Hydraulic Tank(L) | 128 |
| Travel Speed(km/h) | 13.5 |
| Operating Weight(kg&ton) | 40000 |
| Specifications(mm) | 9090×4117×3650 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Ground Pressure | 97.2 kPa |
| Track Shoe Width | 560 mm |
| Ground Contact Length | 3150 mm |
| Blade Type | Semi-U Blade |
| Blade Lift Height | 1,660 mm |
| Blade Digging Depth | 560 mm |
| Ripper Type | Single-Shank Ripper |
| Ripper Penetration Depth | 1250 mm |
Features
The SD34-G hydraulic bulldozer has the characteristics of strong power, low fuel consumption, flexible operation, comfortable driving, high production efficiency, and high reliability. Suitable for the operation of pushing, excavating, backfilling earthwork and other loose materials on the ground such as highways, railways, mines, airports, etc., it is an indispensable mechanical equipment for national defense engineering, mining construction, urban and rural road construction, and water conservancy construction.
