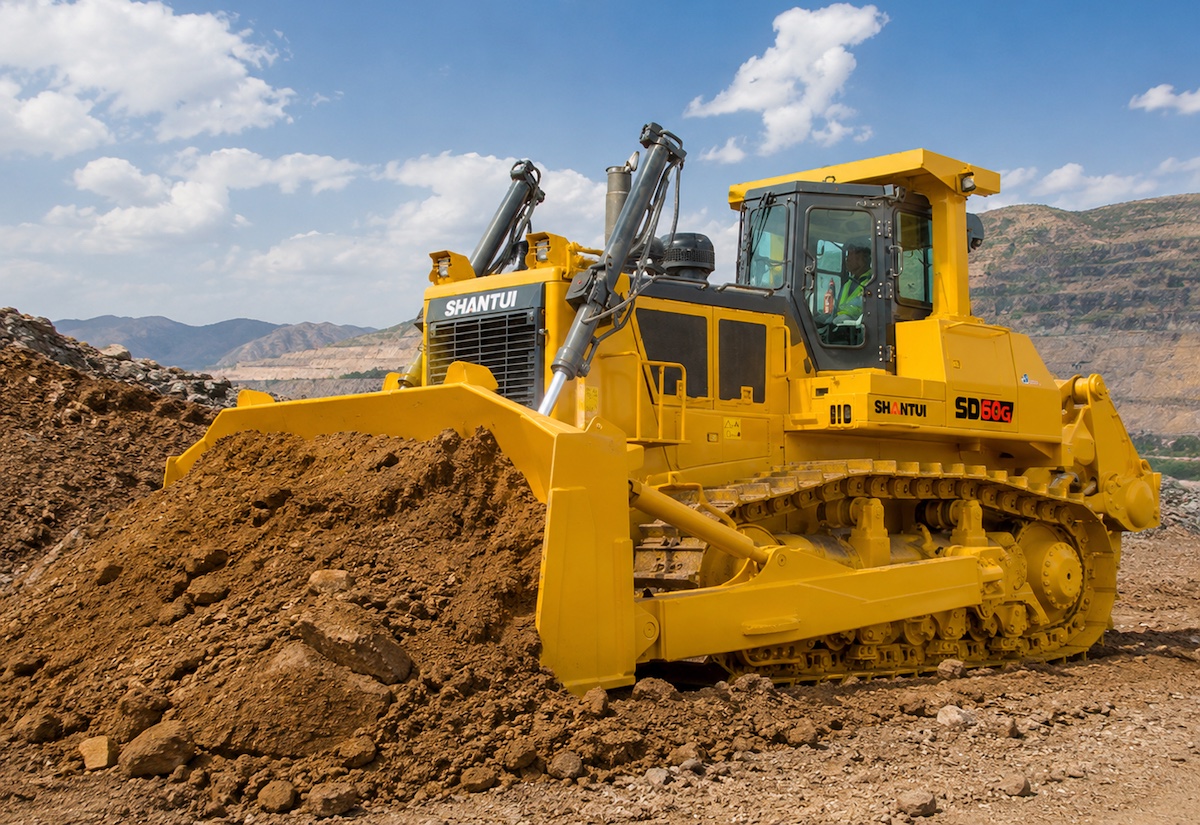

Shantui SD60-G
Parameters
| Engine Model | Cummins QSK19 |
| Rated Power(kW) | 563 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 3084 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 90 |
| Engine Displacement(L) | 18.9 |
| Emisson | China Stage IV / National IV |
| Fuel Tank(L) | 1150 |
| Hydraulic Tank(L) | 164 |
| Travel Speed(km/h) | 15.8 |
| Operating Weight(kg&ton) | 70630 |
| Specifications(mm) | 10390×4690×4370 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Ground Pressure | 130.2 kPa |
| Track Shoe Width | 610 mm |
| Ground Contact Length | 3840 mm |
| Blade Type | Semi-U Blade |
| Blade Lift Height | 1,660 mm |
| Blade Digging Depth | 715 mm |
| Ripper Type | Single-Shank Ripper |
| Ripper Penetration Depth | 1435 mm |
Features
The SD60-G tracked bulldozer is a strategic product of the company, which optimizes the matching of power, transmission, hydraulic, electrical and other systems to achieve low fuel consumption and low noise; By adopting an electronic control walking system, the user's operating intensity is reduced, and multiple preset operating modes can be selected to meet different operating habits; This equipment is matched with a heavy-duty chassis and adopts the elastic suspension technology of supporting wheels, which can adapt to more harsh working environments, significantly improve productivity, and reduce operating costs.
