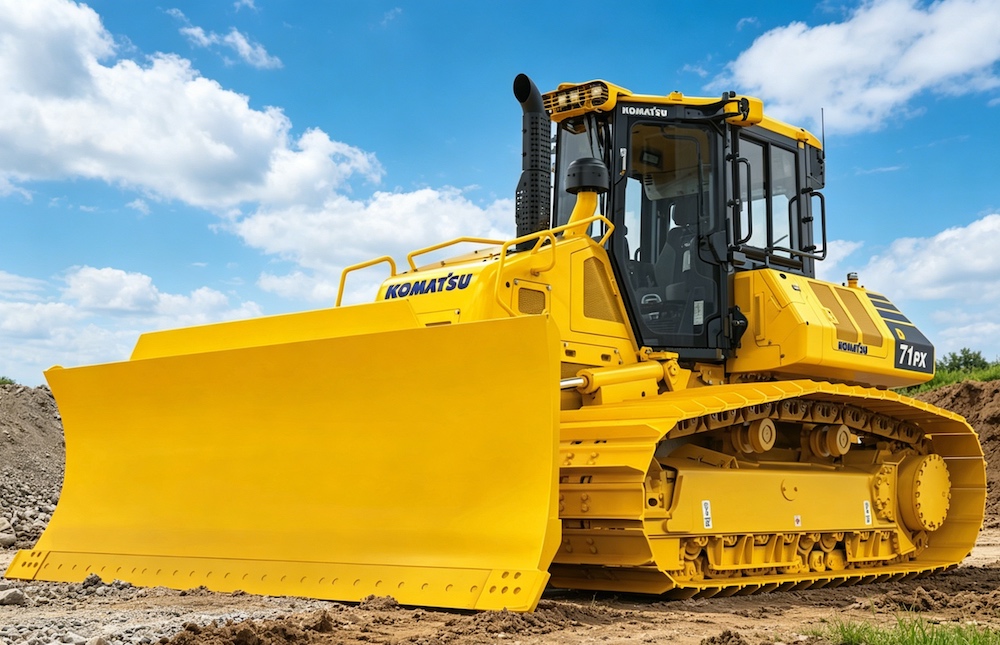

Used Komatsu D71PX-24
Parameters
| Engine Model | Komatsu SAA6D114E-6 |
| Rated Power(kW) | 179 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 950 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 18-22 |
| Engine Displacement(L) | 8.85 |
| Emisson | Tier 4 Final / Stage V |
| Fuel Tank(L) | 439 |
| Hydraulic Tank(L) | 154 |
| Travel Speed(km/h) | 11 |
| Operating Weight(kg&ton) | 23100 |
| Specifications(mm) | 6540×3705×3575 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Japan |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
| Blade capacity (m³) | 4.7-5.1 |
| Ground pressure(kpa) | 35-40 |
| Maximum Tractive Force | 90 |
Features
1. Efficient homework performance
Equipped with a large-sized universal shovel, it can flexibly adjust the angle and tilt angle, adapt to various working conditions, and significantly improve work efficiency.
Adopting a static hydraulic drive system, the steering response is sensitive, the walking and steering operations are smooth, the low-speed traction is strong, and the high-speed movement is flexible.
Support automatic soil pushing control function, which can automatically plan the operation path according to the terrain, reduce the operating threshold, and improve construction efficiency.
2. Durability and low maintenance cost
Equipped with PLUS walking system, the components wear evenly, greatly extending the service life of chassis components and significantly reducing maintenance costs.
Modular body design, with key parts reinforced with cast steel to reduce the number of parts and enhance overall structural strength and impact resistance.
The self-adjusting tensioning mechanism can maintain constant track tension, reduce noise and vibration, and extend the service life of chassis components.
3. Strong environmental adaptability
Low grounding pressure design, larger track grounding area, stable operation in soft, muddy or gravel fields, and less likely to sink the vehicle.
Suitable for various construction scenarios, whether it is earthwork leveling, site cleaning, or slope operations, it can maintain stable performance output.
4. Operation and safety design
Equipped with a high visibility cab, the view is wide, reducing blind spots during operation and improving work safety.
Equipped with an operator sensing system, the hydraulic system can be locked under specific conditions to prevent accidents caused by misoperation.
The key maintenance components adopt an openable design, and maintenance points such as radiators and oil coolers are easy to access, making daily maintenance convenient.
Photos
