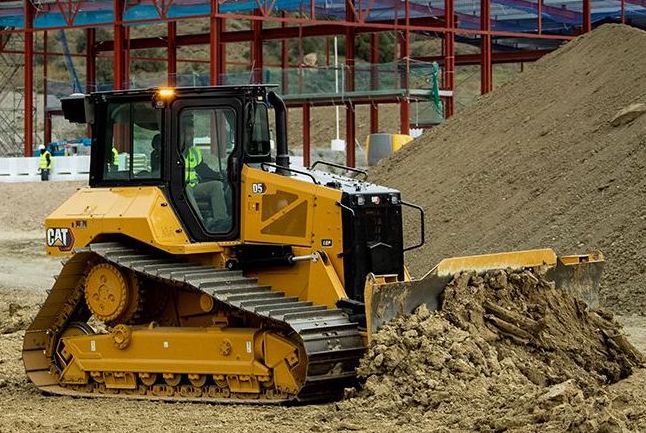

CAT D5
Parameters
| Engine Model | Cat C7.1 |
| Rated Power(kW) | 127 |
| Engine Revolutions(rpm) | 1770 |
| Maximum Torque(N·m) | 880 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 16-20 |
| Engine Displacement(L) | 7.1 |
| Emisson | U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)/Korea Stage V |
| Fuel Tank(L) | 315 |
| Hydraulic Tank(L) | 100 |
| Travel Speed(km/h) | 10 |
| Operating Weight(kg&ton) | 19170 |
| Specifications(mm) | 5185×2920×3065 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | America |
| Year of Production | 2024 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Blade capacity (m³) | 3.5 |
| Ground pressure(kpa) | 47.6 |
| Blade Width(mm) | 610 |
| Maximum Traction Force(kN) | 308 |
Features
1. Power and transmission: efficient, fuel-efficient, and strong traction
Equipped with a Cat C7.1 engine with a net power of 127 kW (170 hp), it meets Tier 4 Final/Stage V emissions Cat standards.
3-speed fully automatic transmission (with lock up clutch), with a 16% increase in fuel efficiency and a 13% increase in ground traction compared to the previous generation.
Low speed and high torque, fast response, powerful soil pushing, precise leveling for greater stability, balancing heavy-duty and high-precision operations.
2. Adaptation of shovel to working conditions: versatile and flexible, with good passability
Standard VPAT straight tilt shovel (approximately 3960 mm wide, capacity approximately 4.3-5.9 m ³), adjustable angle/tilt angle.
LGP wide track version: The grounding ratio is low, making it difficult for vehicles to sink on soft, muddy, or wet ground, and has strong adaptability to the site.
Can be equipped with a semi U-shaped shovel, versatile Cat for earthwork, leveling, slope, and site cleaning.
3. Cab and handling: comfortable and safe, with excellent visibility
The all-new driver's cab features integrated ROPS/FOPS protection and impact resistant polycarbonate doors with Cat.
The glass area is larger, the hood angle is optimized, and the front view is 30% higher than the previous generation, with fewer blind spots.
10 inch color touch screen, electronic control handle, adjustable floating seat, low noise and low vibration, making it less prone to fatigue during long-term operation.
Standard rearview camera, optional 360 ° surround image+personnel detection, significantly improving construction site safety.
4. Intelligent technology: reduce difficulty and improve efficiency
Slope Assist: Automatically maintains the longitudinal/transverse slope of the blade, even beginners can achieve high-precision leveling.
AccuGrade 3D Slope Control System (Pre installed): No need for layout, automatic construction, maximum efficiency improvement of 50% Cat.
Product Link remote monitoring: real-time viewing of location, working hours, fuel consumption, and faults, remote diagnosis+software upgrade, reducing downtime with Cat.
5. Durability and maintenance: sturdy, worry free, and cost-effective
Enhanced push arm, thickened blade angle, heavy-duty chassis, higher structural strength, anti-wear and impact resistance Cat.
SystemOne chassis: Long service life of supporting wheels and tracks, optimized lubrication, and extended maintenance intervals.
Side opening hood and filter element are centrally arranged, making daily inspection/maintenance more convenient and reducing downtime
Interested in used CAT D5 Bulldozer? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
