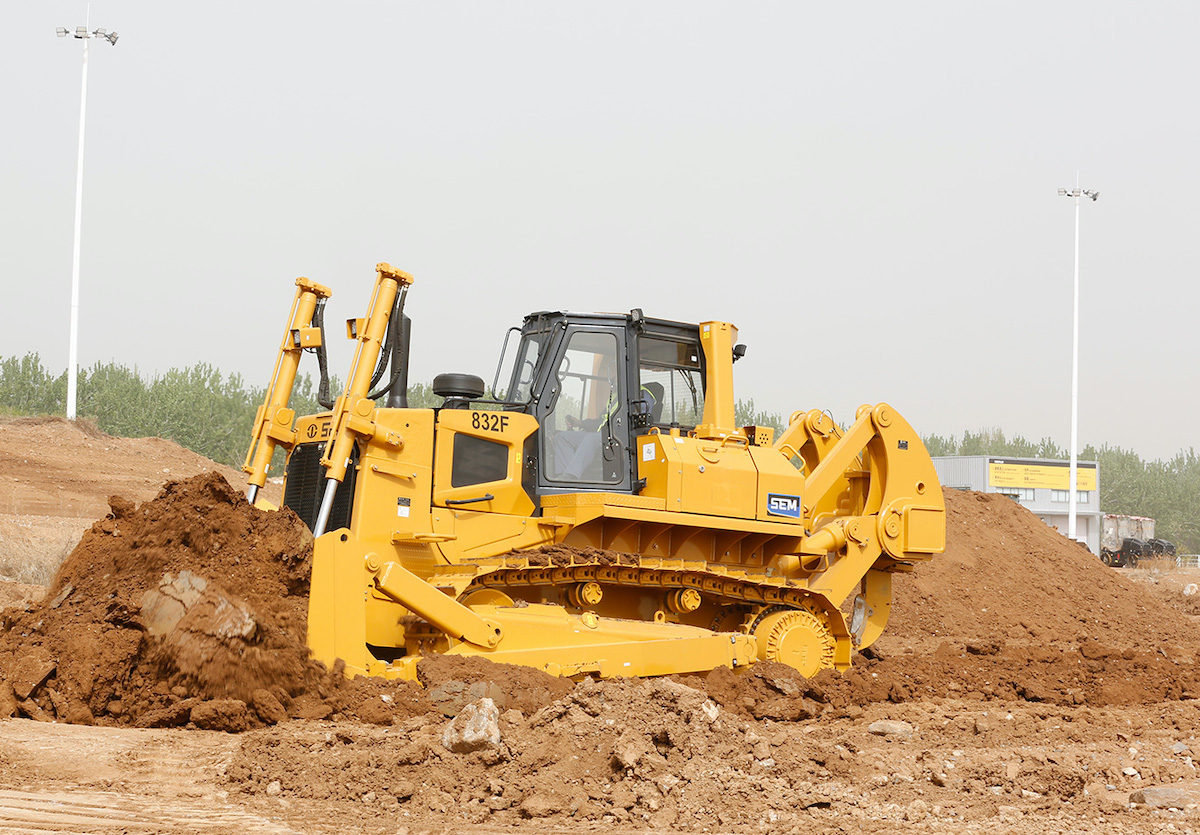

SEM 832F
Parameters
| Engine Model | Perkins 1706D-E93TA |
| Rated Power(kW) | 253 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 2088 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 35 |
| Engine Displacement(L) | 9.3 |
| Emisson | Tier III / Stage III |
| Fuel Tank(L) | 320 |
| Hydraulic Tank(L) | 60 |
| Travel Speed(km/h) | 11 |
| Operating Weight(kg&ton) | 38,710 |
| Specifications(mm) | 8840×4180×3520 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Ground Pressure | 83 kPa |
| Track Shoe Width | 610 mm |
| Ground Contact Length | 4,520 mm |
| Blade Type | Semi-U Blade |
| Blade Lift Height | 812 mm |
| Blade Digging Depth | 558 mm |
| Ripper Type | Single-Shank Ripper |
Features
As the first 320 horsepower bulldozer in China to apply static hydraulic transmission technology, the all-new 832F bulldozer innovatively adopts a single pump dual motor drive form, equipped with Perkins imported engine and Caterpillar sealed lubricating oil chain. Different types of working devices and track plates can meet the needs of users in different working conditions, creating higher value for customers.
Time tested performance
Hydrostatic transmission for higher production efficiency
Turn in place, power steering, continuously variable transmission
Multiple work modes to improve work efficiency
Equipped with world-renowned brand engines, durable and long-lasting
Excellent reliability
World renowned brand pumps and motors
Equipped with a standard cylindrical walking frame, the sealed lubricating oil chain is more durable
Structural components are designed to be stronger through finite element analysis
First stage spur gear two-stage planetary reduction final drive
Caterpillar modular cooling system, capable of meeting extreme environmental temperature tests ranging from -40 ° C to+50 ° C
Comfortable driving and easy operation
The driver's cabin is spacious, comfortable, and easy to operate
Adopting a brand new F series fashionable design
Six way adjustable suspension seat
Good visibility, safer operation
Stable, reliable, and not easily damaged
High quality international renowned brand hydraulic components ensure the reliability and durability of static hydraulic transmission systems
The Perkins engine is inherited from the Caterpillar C9.3B engine, providing classic protection and greater durability
The entire series comes standard with Caterpillar sealed lubrication chains (oil chains), greatly extending their service life
The final drive adopts a single-stage straight tooth and two-stage planetary reduction, and the planetary reduction adopts a four planetary gear form for smoother and more reliable operation
Equipped with 4 sets of wet brakes as standard, the braking performance is better and the service life is longer. The new cylindrical walking frame has a strong structure and is not easy to accumulate materials, making it easy to face harsh working conditions
The shovel adopts a box shaped design, and the curved plate is made of high-strength wear-resistant plate that meets Caterpillar 1E standards, which can meet the strength requirements of more demanding working environments
Efficient and energy-saving, fast work
Adhering to the static hydraulic transmission technology of bulldozers derived from Caterpillar for over 50 years, we innovatively adopt a single pump dual motor design on each side, which is mature and stable
The functions of continuously variable transmission, stationary steering, and power steering can be easily achieved, and the automatic matching of load changes has high operational efficiency
The dual pump combined hydraulic system can accelerate the working cycle and reduce energy loss
The heat dissipation system adopts Caterpillar's modular, single plane, and high safety factor design, which can meet the temperature test of 50 ° C extreme environment
The standard hydraulic temperature control fan is efficient and energy-saving, and the reverse function can achieve automatic cleaning of the engine compartment and radiator, further reducing maintenance costs
Comfortable driving and easy operation
Extra large driving space, six way adjustable suspension seats, shovel blades, shovel angles, and rear work devices are all within effective line of sight, ensuring comfort while ensuring safety
Multi functional electric control walking handle, hydraulic pilot handle, precise and effortless control
Equipped with standard air conditioning and a blue color radio, the operation is more comfortable
Standard LED headlights, making nighttime construction easier
Equipped with an 8-inch interactive dashboard as standard, the vehicle status can be controlled at any time
More economical operating costs
Integrated hydraulic oil tank design extends the oil replacement cycle and reduces maintenance costs
The electronic pressure forced unloading function reduces energy loss caused by oil agitation and lowers fuel consumption
Convenient, worry free, and easy to maintain
Standard fault information Chinese display function, one click direct access to transmission system issues
The external design of the working valve makes maintenance and repair more convenient
The engine compartment has a large maintenance space, effectively improving the convenience of daily maintenance and repair
The center pin of the balance beam is designed with no lubrication, and the lubrication interval between the center pins on both sides is greatly extended
