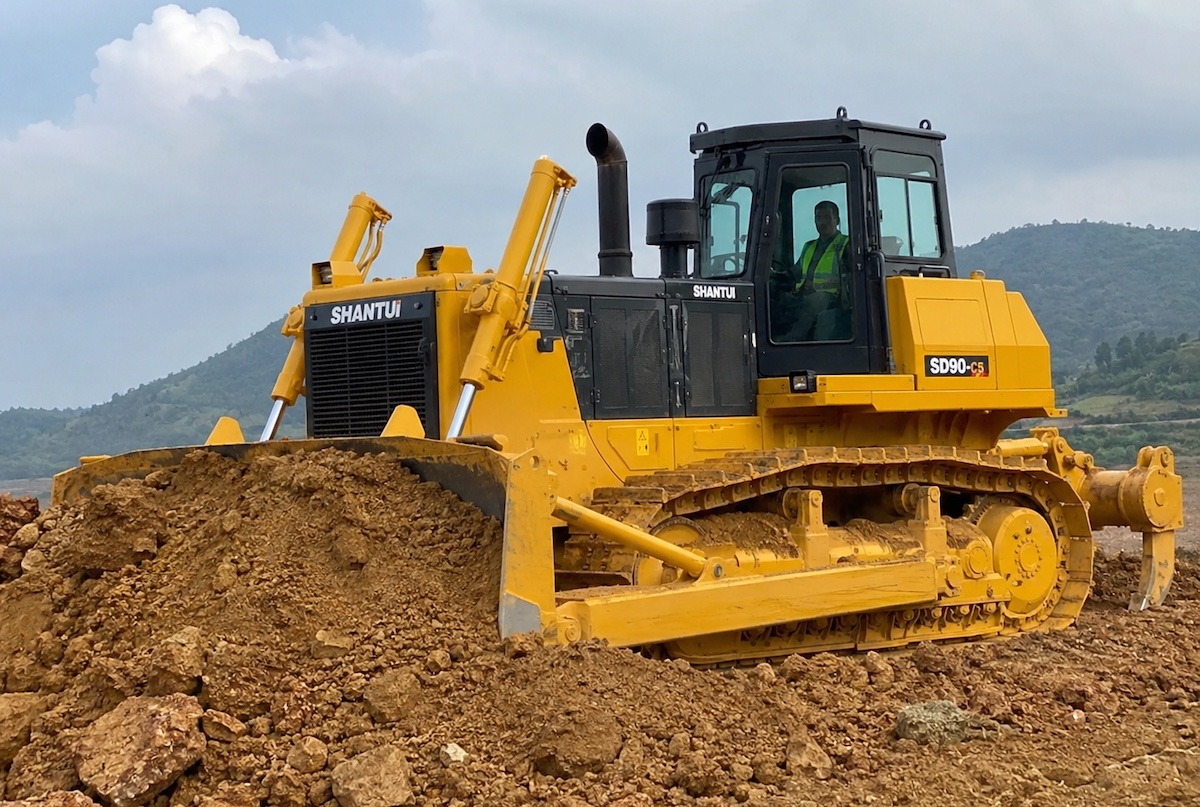

Shantui SD90-C5
Parameters
| Engine Model | QST30 |
| Rated Power(kW) | 708 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 4625 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 120 |
| Engine Displacement(L) | 30.5 |
| Emisson | China Stage III / Non-road Stage III |
| Fuel Tank(L) | 1750 |
| Hydraulic Tank(L) | 340 |
| Travel Speed(km/h) | 14.3 |
| Operating Weight(kg&ton) | 106260 |
| Specifications(mm) | 11500×5265×4590 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Ground Pressure | 143.7 kPa |
| Track Shoe Width | 710 mm |
| Ground Contact Length | 4,520 mm |
| Blade Type | Semi-U Blade |
| Blade Lift Height | 1,620 mm |
| Blade Digging Depth | 1,010 mm |
| Ripper Type | Single-Shank Ripper |
| Ripper Penetration Depth | 1,670 mm |
Features
1. Designed for Ultra-Heavy-Duty Operations
The SD90-C5 is built for the toughest earthmoving environments, including mining, large-scale infrastructure projects, quarry operations, and bulk material handling. Its robust structure allows it to maintain high productivity under continuous heavy workloads.
2. Exceptional Pushing Performance
With a high-capacity blade and strong traction system, the SD90-C5 can move large volumes of material efficiently. It performs particularly well in:
Overburden removal
Mine site preparation
Large earthmoving projects
Land reclamation work
3. Reliable and Durable Construction
The machine features a reinforced frame, heavy-duty undercarriage, and wear-resistant components designed to withstand harsh operating conditions. This helps reduce downtime and extends service life.
4. Optimized Fuel Efficiency
Advanced powertrain and hydraulic management technologies help improve operational efficiency while reducing fuel consumption, lowering overall operating costs for contractors and fleet owners.
5. Superior Stability on Challenging Terrain
Its large operating footprint and crawler design provide excellent ground contact and stability, allowing effective operation on:
Uneven ground
Rocky surfaces
Soft soil conditions
Steep working areas
6. Enhanced Operator Comfort
The spacious cab is designed to reduce operator fatigue during long shifts through:
Improved visibility
Reduced vibration
Lower noise levels
Ergonomic controls
7. Easy Maintenance and Serviceability
Routine inspection and maintenance points are conveniently positioned, allowing technicians to perform daily checks and servicing more efficiently, minimizing machine downtime.
8. Suitable for Mining and Mega Projects
Compared with conventional bulldozers, the SD90-C5 is specifically targeted at large mining and infrastructure applications where high productivity and continuous operation are critical requirements.
9. Lower Total Cost of Ownership
The combination of durability, fuel economy, easy maintenance, and long component life helps owners achieve better long-term value and return on investment.
Interested in used Shantui SD90-C5 Bulldozer? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
