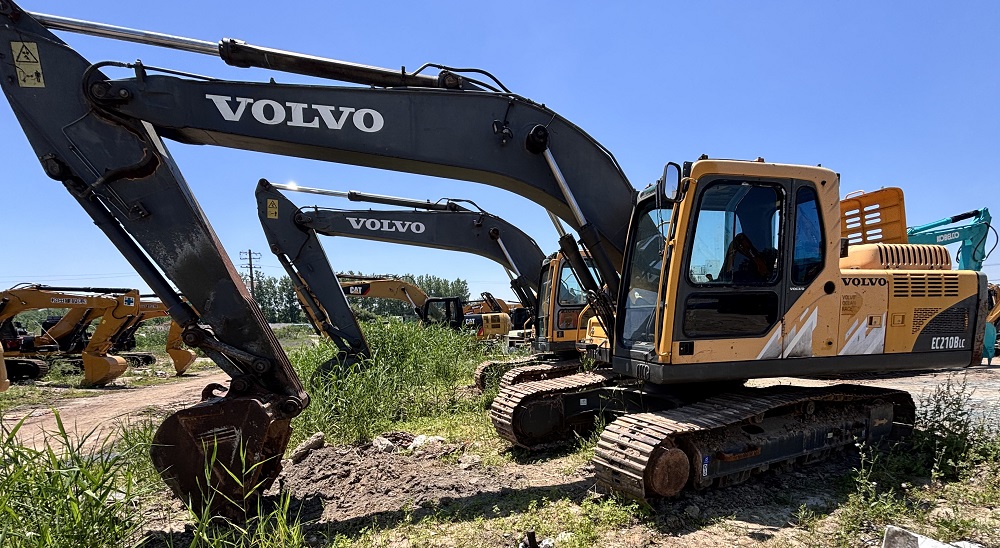

Used VOLVO EC210BLC
Parameters
| Engine Model | 康明斯B5.9-C |
| Rated Power(kW) | 107 |
| Engine Revolutions(rpm) | 1500 |
| Maximum Torque(N·m) | 618 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 14-17 |
| Engine Displacement(L) | 5.9 |
| Emisson | China Stage Ⅱ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 350 |
| Hydraulic Tank(L) | 210 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1.25 |
| Bucket Digging Force(kN) | 138 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9940 |
| Maximum Digging Height(mm) | 9450 |
| Maximum Digging Depth(mm) | 6730 |
| Specifications(mm) | 9700 × 2990 × 3000 |
| Operating Weight(kg&ton) | 21000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Korea |
| Year of Production | 2009 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Strong power and good fuel economy
Equipped with Volvo D6E turbocharged engine, rated power of 123kW, maximum torque of 730N · m/1350rpm, low-speed and high torque characteristics matched with hydraulic system, improving operational efficiency while reducing fuel consumption
Hydraulic system has fast response and strong load capacity
Adopting a dual variable axial piston pump and gear pump combination, the maximum flow rate of the main pump reaches 200 × 2+18 L/min, and the system pressure is as high as 32.4-34.3 MPa, ensuring smooth operation and high excavation force (standard mode bucket excavation force of 136.3kN, force mode up to 147.1kN)
High homework efficiency and strong attendance rate
Actual test cases show that the EC210BLC equipped with a 1m ³ bucket can accommodate 179 vehicles per shift in earthwork operations, which is superior to models of the same or even larger tonnage (such as competitors with a 1.2m ³ bucket)
Sturdy structure and high durability
The upper and lower frames, boom, boom, and walking mechanism are all reinforced with high-strength steel to adapt to harsh working conditions such as mining and municipal engineering. The maintenance interval is long, and the second-hand machine can operate stably for more than 20000 hours under reasonable maintenance
Comfortable and safe driving cabin
Equipped with a full view cab, shock-absorbing seats with lumbar support, efficient air conditioning, sunshade net, and tilt protection device, it enhances the comfort and safety of operators during long-term operations
Convenient maintenance and controllable maintenance costs
Centralized lubrication points, key components accessible from the ground, combined with automatic idle and ECO mode, reduce unnecessary fuel consumption; Feedback from users who insist on original factory maintenance: 'Repairs are not expensive'
Multi stick configuration suitable for different working conditions
Provide two boom options of 2.5 meters and 2.9 meters, optimizing excavation depth (6330mm/6730mm) and unloading height (9220mm/9450mm) respectively, to enhance scene adaptability
Photos
