Used VOLVO EC210B
Parameters
| Engine Model | Volvo D6E |
| Rated Power(kW) | 110 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 647 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 10–12 |
| Engine Displacement(L) | 5.7 |
| Emisson | China Stage III |
| Track width(mm) | 600 |
| Fuel Tank(L) | 350 |
| Hydraulic Tank(L) | 160 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 0.92 |
| Bucket Digging Force(kN) | 137 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9940 |
| Maximum Digging Height(mm) | 9450 |
| Maximum Digging Depth(mm) | 6700 |
| Specifications(mm) | 9690×2800×3000 |
| Operating Weight(kg&ton) | 20500 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Korea |
| Year of Production | 2014 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Main advantages and features
Efficient and energy-saving power
Equipped with Volvo D6E turbocharged engine, rated power of 110-123 kW (slightly different versions), displacement of 5.7L, equipped with automatic idle, common rail direct injection and other technologies, significantly reducing fuel consumption and noise
Hydraulic system has fast response and strong stability
Adopting a dual variable axial piston pump and gear pump combination, the maximum flow rate of the main pump reaches 400 L/min (some versions are 200 × 2+18/19), and the hydraulic system pressure is as high as 34.3 MPa, ensuring precise action and strong excavation force
Excellent digging power
Standard mode bucket excavation force: 136.3 kN
Up to 147.1 kN in power mode
Excavating force of boom: 98.2-113.7 kN (depending on the length of the boom)
High cabin comfort
Full view design, equipped with high-performance air conditioning and vibration reduction system
The seat provides lumbar support, and the front gear and top are equipped with sunshade nets to enhance the comfort of the operator during long-term operations
Durable and sturdy structure
The upper/lower frame, boom, arm, and walking mechanism have all been reinforced with design to adapt to complex working conditions and extend equipment life
Convenient maintenance
Ground accessible lubrication points
Anti slip stairs and platforms
Key components are easy to inspect and replace, reducing downtime
Flexible homework scope
Optional 2.5-meter or 2.9-meter boom, corresponding to maximum excavation depths of 6330 mm and 6730 mm respectively, with a maximum excavation height of 9450 mm
Environmental Protection and Low Emissions
The engine meets lower emission standards and is equipped with an intelligent ECO mode, balancing performance and environmental protection

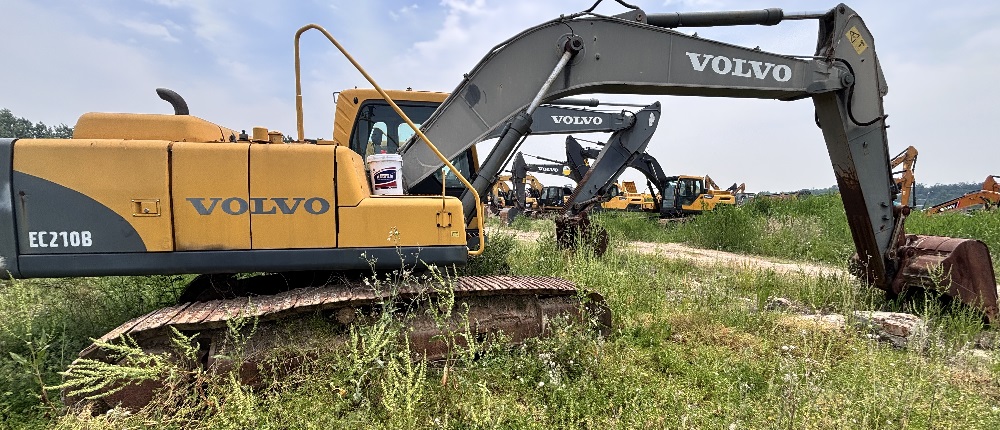

Photos
