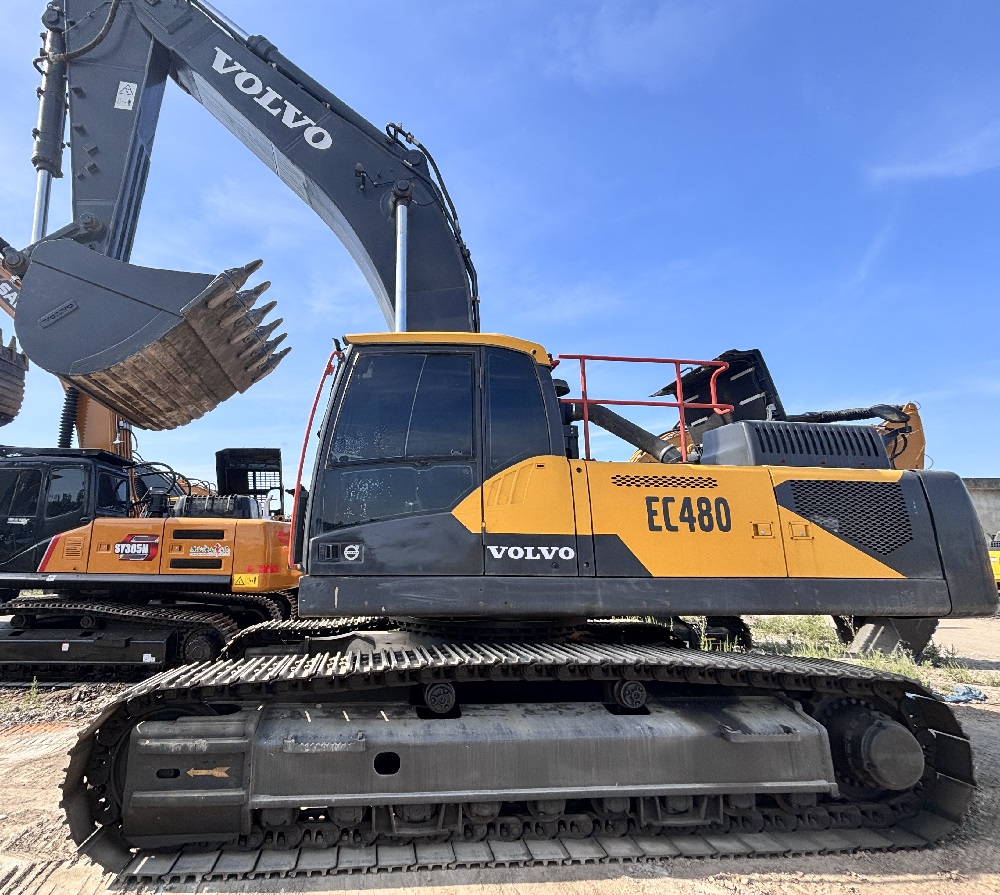

Used VOLVO EC480
Parameters
| Engine Model | VolvoD13F |
| Rated Power(kW) | 265 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1836 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 22–28 |
| Engine Displacement(L) | 12.8 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 680 |
| Hydraulic Tank(L) | 270 |
| Travel Speed(km/h) | 5.1 |
| Bucket Capacity(m³) | 3.03 |
| Bucket Digging Force(kN) | 311 |
| Boom Length(mm) | 6500 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 11294 |
| Maximum Digging Height(mm) | 11,010 |
| Maximum Digging Depth(mm) | 7036 |
| Specifications(mm) | 12130 × 3640 × 3480 |
| Operating Weight(kg&ton) | 48343 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Korea |
| Year of Production | 2017 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
1、 Excellent homework performance
High power engine: equipped with Volvo D13 series engine, with a rated power of 245-270 kW, it can output high torque at low speeds and adapt to heavy load conditions
Large bucket capacity: The standard bucket capacity is 1.77-3.8 m ³, and the Supreme Edition (EC480 HD) can reach 3.03 m ³, improving single loading efficiency
Strong digging power: The bucket digging power can reach up to 285 kN (EC480D) or 275 kN (EC480 HD power enhancement mode), and the boom digging power exceeds 224 kN, suitable for hard material operations
Fast work cycle: By enhancing the hydraulic system and optimizing the counterweight, the rotation speed is faster, the work cycle time is shortened, and the productivity is increased by about 8%
2、 Leading fuel economy
ECO energy-saving mode: The intelligent electronic hydraulic system provides on-demand fuel supply to reduce internal losses, and with the automatic idle function, fuel efficiency is improved by 5%; Hybrid models can reach up to 20%
Large capacity fuel tank: The fuel tank has a capacity of 685 liters and supports long-term continuous operation
Intelligent power management: Multi speed working mode (I/F/G/H/P) automatically matches engine speed and hydraulic flow to avoid ineffective energy consumption
3、 High reliability and durability
Strengthening chassis structure: using large-diameter rollers, thick toothed sprockets, track links, and heavy-duty protection devices to enhance stability and lifespan in rough terrain
Long lifespan of key components: hydraulic oil replacement interval of up to 5000 hours, filter replacement cycle of 2500 hours, reducing downtime maintenance frequency
Adaptation to harsh environments: standard includes FOPS anti fall protection, heavy-duty track guards, and bottom plate armor, suitable for harsh working conditions such as mining and road construction
4、 Human computer interaction and operational comfort
Spacious driver's cabin: approximately 3080-3090 mm in height, equipped with air suspension seats, large field of view glass windows, and thin column frames to enhance visibility and comfort
Safety configuration: The cab is ROPS certified and can be equipped with front, rear, and side view cameras, combined with the Volvo Smart View system to achieve 360 ° panoramic monitoring
Convenient control: Ergonomic controller, Bluetooth connection, USB port, and shortcut buttons enhance operational convenience
5、 Intelligent maintenance and service support
Centralized lubrication and filtration: The filter and lubrication points can be reached on the ground, and the wide inspection door is convenient for daily maintenance
Vehicle monitoring system: equipped with Pulse remote monitoring and Volvo ActiveCare service, providing 24/7 equipment status warning and preventive maintenance reminders
Global service network: relying on Volvo Group's dealer system covering more than 150 countries, ensuring parts supply and technical support
Photos
