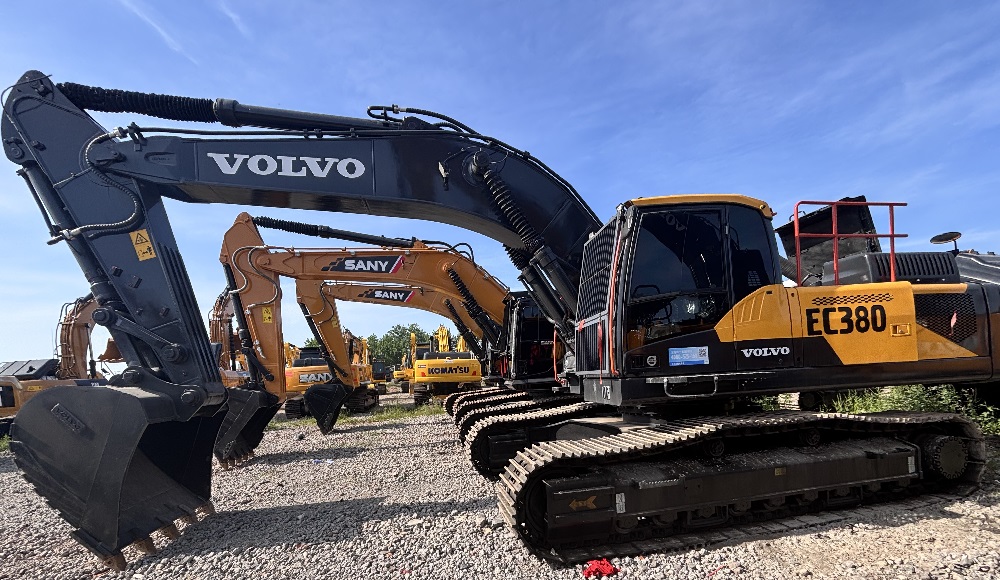

VOLVO EC380
Specifications & Parameters
| Engine Model | Volvo D13H-D |
| Rated Power(kW) | 215 |
| Engine Revolutions(rpm) | 1700 |
| Maximum Torque(N·m) | 1692 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 20-25 |
| Engine Displacement(L) | 12.8 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 620 |
| Hydraulic Tank(L) | 227 |
| Travel Speed(km/h) | 5.3 |
| Bucket Capacity(m³) | 3 |
| Bucket Digging Force(kN) | 221.7 |
| Boom Length(mm) | 6450 |
| Stick Length(mm) | 2600 |
| Maximum Excavation Radius(mm) | 10550 |
| Maximum Digging Height(mm) | 10170 |
| Maximum Digging Depth(mm) | 6850 |
| Specifications(mm) | 11330× 3340×3590 |
| Operating Weight(kg&ton) | 41100 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Korea |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Strong power and efficient hydraulic system
Equipped with Volvo D13H-D engine, rated power of 215 kW (or 219 kW, depending on configuration), speed of 1700 rpm, providing high torque output (maximum 1800 Nm @ 1400 rpm)
Equipped with an enhanced dual pump hydraulic system, using a variable displacement axial piston pump with a flow rate of 2 × 300 L/min, and integrating functions such as merging, boom/forearm priority, and power enhancement, significantly reducing operation cycle time by 8-10%
Excellent fuel economy
By using ECO mode, intelligent electronic hydraulic system, and efficient engine, we can achieve the goal of "transporting more materials with less fuel" and reduce operating costs
High excavation power and operational performance
Bucket excavation force: 198 kN (standard)/215-242.7 kN (power enhancement/force mode)
Small arm excavation force: 141 kN (standard)/154-157.4 kN (reinforced)
Maximum excavation depth: 6850-8150 mm (slightly different sources, mainstream is 8150 mm)
Maximum excavation distance: 11720 mm
Lifting capacity: up to 14540 kg at the chassis
Comfortable and safe cab
Full field of view: large glass, slim pillar design, standard sunroof, optional rearview camera in some versions
Ergonomic optimization: 9-way adjustable seats, ample foot space, automatic climate control, 14 air vents, audio and power sockets
Safety certification: The cab has passed ROPS certification, enhancing operational safety
Durable and sturdy chassis with high maintainability
Heavy duty chassis: High strength steel boom (6.45 m) and forearm (3.9 m) are used, with protective ribs added to the lower part of the forearm. The tracks are 600 mm wide butter lubricated and sealed, with 9 supporting wheels on each side
Convenient maintenance: Key components such as oil filters, fuel filters, and hydraulic oil coolers are arranged in accessible locations on the ground; Hydraulic return oil filter replacement interval up to 2000 hours
Multiple configuration versions adapted to different needs
Provide DL series (balance performance and fuel consumption), Honor series (electronic hydraulic optimization), Supreme version (large bucket+heavy counterweight+Dig Assist excavation assistance system) and other versions to meet different engineering scenarios
Suggested Applicable Scenarios
Advantage areas: earthwork operations, mining, large-scale municipal projects and other occasions that require high power and stability.
Limitations: The overall width of the machine is 3340 mm, and the tail turning radius is 3800 mm, which is not suitable for narrow space operations
To view detailed parameters or obtain a quotation
Interested in used VOLVO EC380 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
