Used XCMG XE60DA
Parameters
| Engine Model | Yanmar 4TNV94L |
| Rated Power(kW) | 36.2 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 207.4 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 4.5-5.5 |
| Engine Displacement(L) | 3.054 |
| Emisson | China Stage II |
| Track width(mm) | 400 |
| Fuel Tank(L) | 110 |
| Hydraulic Tank(L) | 85 |
| Travel Speed(km/h) | 4.2 |
| Bucket Capacity(m³) | 0.23 |
| Bucket Digging Force(kN) | 48.3 |
| Boom Length(mm) | 3000 |
| Stick Length(mm) | 1600 |
| Maximum Excavation Radius(mm) | 6130 |
| Maximum Digging Height(mm) | 5630 |
| Maximum Digging Depth(mm) | 3830 |
| Specifications(mm) | 5860×1920×2585 |
| Operating Weight(kg&ton) | 6010 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Power and fuel economy
-The new environmentally friendly engine (model 4TNV94L) is adopted, which has the characteristics of large low-speed torque and low fuel consumption.
-Optimized design of intake pipeline reduces intake resistance and increases intake volume, thus improving fuel utilization.
Hydraulic Systems and Operating Efficiency
-Overall hydraulic system optimization: by adjusting the pump power and adopting a new generation of low-pressure loss main valve, the whole machine has lower energy consumption, faster response and more accurate control.
-Industry-leading flow passage design: the working couple cancels the traditional bridge structure, and the pressure loss is reduced by more than 30%.
-Flow priority distribution mechanism: the combined action performance of walking+working device and climbing+working device is superior to the traditional load sensitive system, and the adaptability of walking with load is significantly improved.
Structural reinforcement and durability
-Reinforcement of key parts: the boom, bucket rod, bulldozer and slewing platform tailstock are redesigned and the key parts are further strengthened.
-The wear resistance of bucket teeth is improved by 40%, effectively reducing the operating cost of users.
-The torque of slewing reducer is increased by 15%, making the slope operation easier.
Operation comfort and man-machine engineering
-Large space cab: wide vision, with enclosed sunshade and optimized seats with three-level shock absorption, improving comfort.
-Sliding glass windows are set on both sides of the cab to improve ventilation and vision.
-Built-in tool kit on the slewing platform for daily tool access.
-The rear hood is easy to open, and the maintenance points of oil filter, diesel filter and air filter are within reach, so the maintenance is more efficient.
Wide range of applicable scenarios for:
-Small earth-rock works
-Municipal construction and pavement repair
-Concrete crushing and cable burying
-Farmland water conservancy, garden cultivation, river and ditch dredging, etc

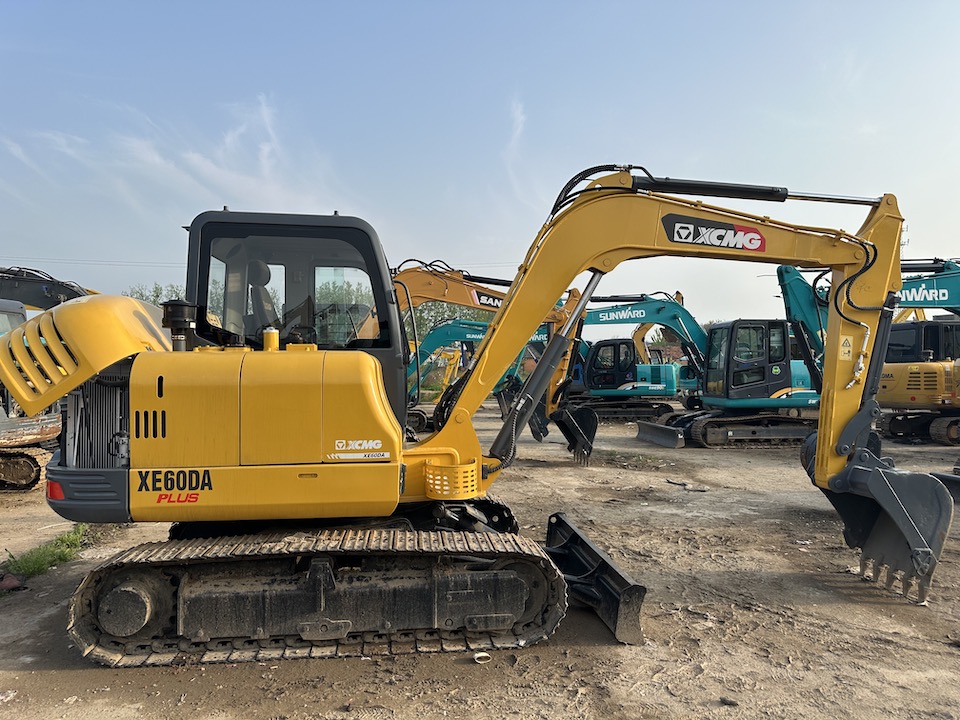

Photos
